The Kea Solar Nest | All-In-One Cabinet Off-Grid Solar System [Arriving early December]

Name: The Kea Solar Nest | All-In-One Cabinet Off-Grid Solar System [Arriving early December]
Brand: Gridfree
SKU: 25-KEA-4-U
Price: 26800.0 NZD
Availability: InStock

$26,800 NZD

Tax included.

Product variants

In stock

Array Size

9500W

Battery capacity

20kWh

Inverter size

8000W (Low-Frequency Inverter)

Generator compatibility

Yes - Manual, Autostart & Scheduling Supported

Need finance? GridFree Qcard Kits

How installation works

How to choose a solar mount?

The Kea Solar Nest | All-In-One Cabinet Off-Grid Solar System [Arriving early December]

Scroll to section

GridFree

The Kea Solar Nest | All-In-One Cabinet Off-Grid Solar System [Arriving early December]

GridFree's Kea Solar Nest Cabinet is a complete, all-in-one solution for off-grid applications. This pre-built, IP54-rated cabinet is ideal for baches, tiny homes, and lifestyle properties without access to grid power, offering a faster, easier, and more cost-effective installation. Designed for durability, it is easy to relocate and built to withstand environmental conditions. Powered by the TBB Renewable.

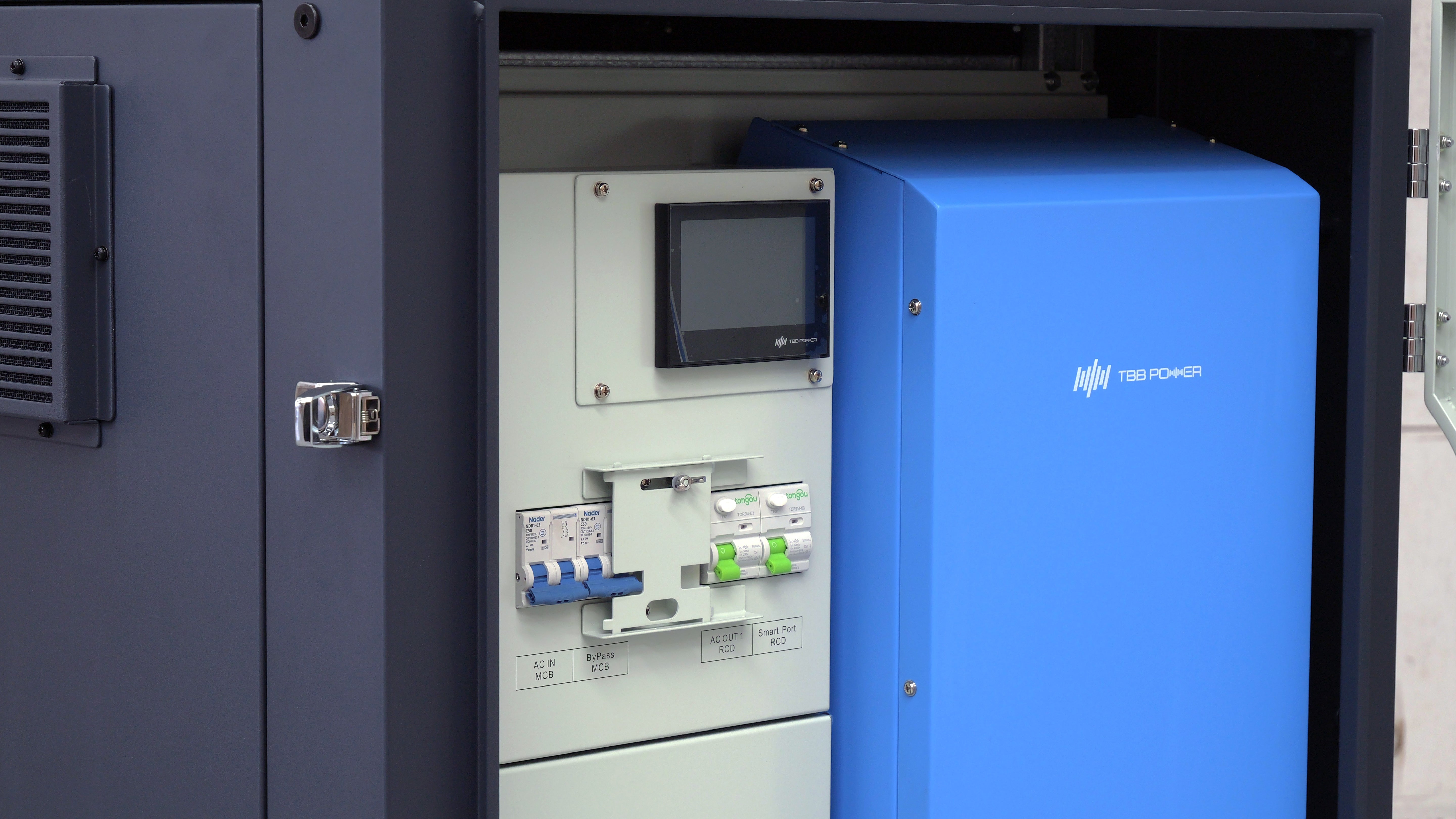

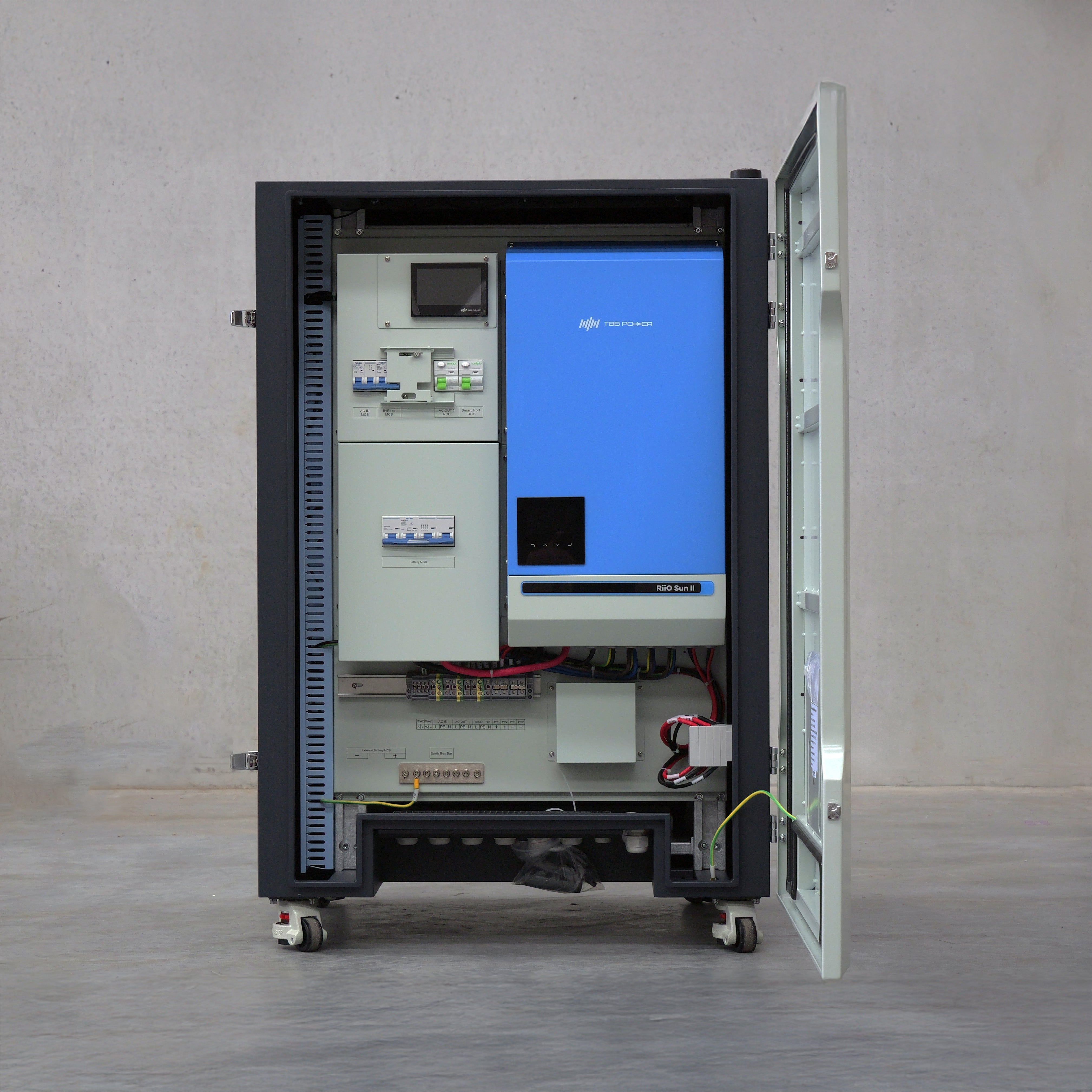

These standalone systems are factory-assembled, internally prewired, and include all essential components except for installation-specific elements. This significantly reduces installation time and complexity. The system integrates an inverter charger with an MPPT solar charge controller, lithium battery modules, E4 monitoring, and AC/DC/PV power distribution in one unit. Electrician required for installation.

Need more power? Contact us for larger Solar Nest solutions.

What Can I Power?

Here is an example of some of the main loads our customers typically power with this system.

If you would like a more detailed understanding of your energy needs get in touch with us for a recommendation or get ahead by checking out our knowledge base. Here are some recommended articles to get started with:

How much power do I need?

Jargon breakdown

Small Appliances

LED Lights, Phone chargers, laptop etc...

Kitchen Appliances

Kettle, Toaster, Slow cooker, Blender etc

Fridge Freezer & Larger Chest Freezer

<350kWh/year each

Larger On Demand Water Pumps

<2400W

Washing Machine

Short cold washes recommended

Small Heat Pump

Run on timer (day time)

Product Reviews

The Kea Solar Nest | All-In-One Cabinet Off-Grid Solar System [Arriving early December]

Includes everything you need to get up and running.

On top of the main components our packages include all the solar cables, battery cables, solar mounts, DC breakers and isolators that you need for our gear.

We do not supply anything that is installation specific such as AC cabling, conduit, earthing cable etc. So please get in touch if you had any questions about package contents.

KEA:
Solar Panel Array Size : 9.5kW
Generation in 3 Peak Sun Hours : 28.5kWh
Number of MPPT Trackers: 2

Total Storage : 20.16 kWh
Usable Storage : 16.12 kWh
Nominal Voltage : 48V

Inverter Rating 30min : 8000W
Inverter Peak Rating : 24000W

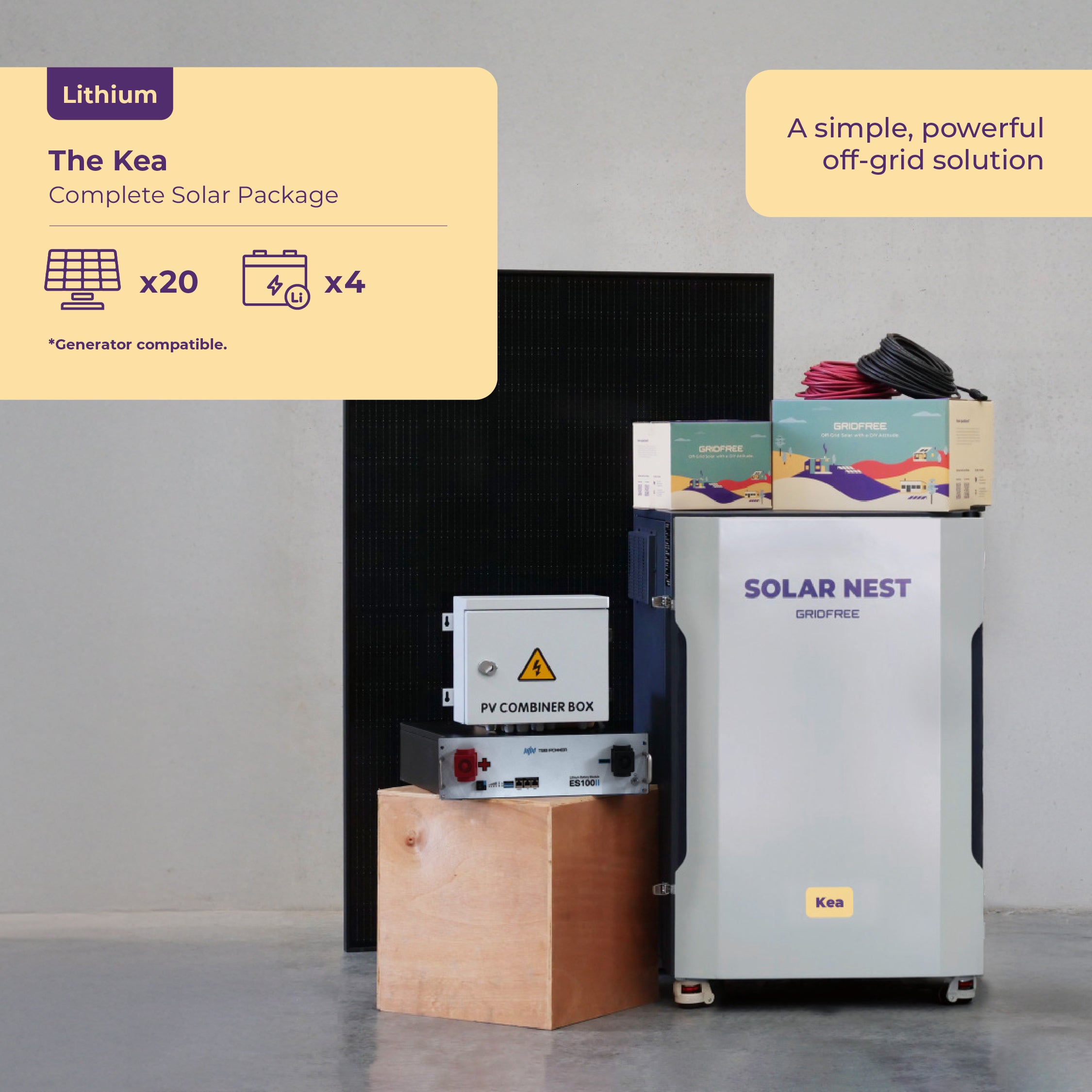

The KEA SolarNest :

20 x 475W RISEN Tier 1 BiFacial Solar Panel
4x 51.2V 5.04kWh LiFeP04 Lithium Battery
1x The KEA Solar Nest Cabinet
5x Solar Mounts (4-panel set)
2x 20m Solar Cable Pair
2x Solar Isolator
4x PV Fuse and Fuse Holder
1x MCB Enclosure

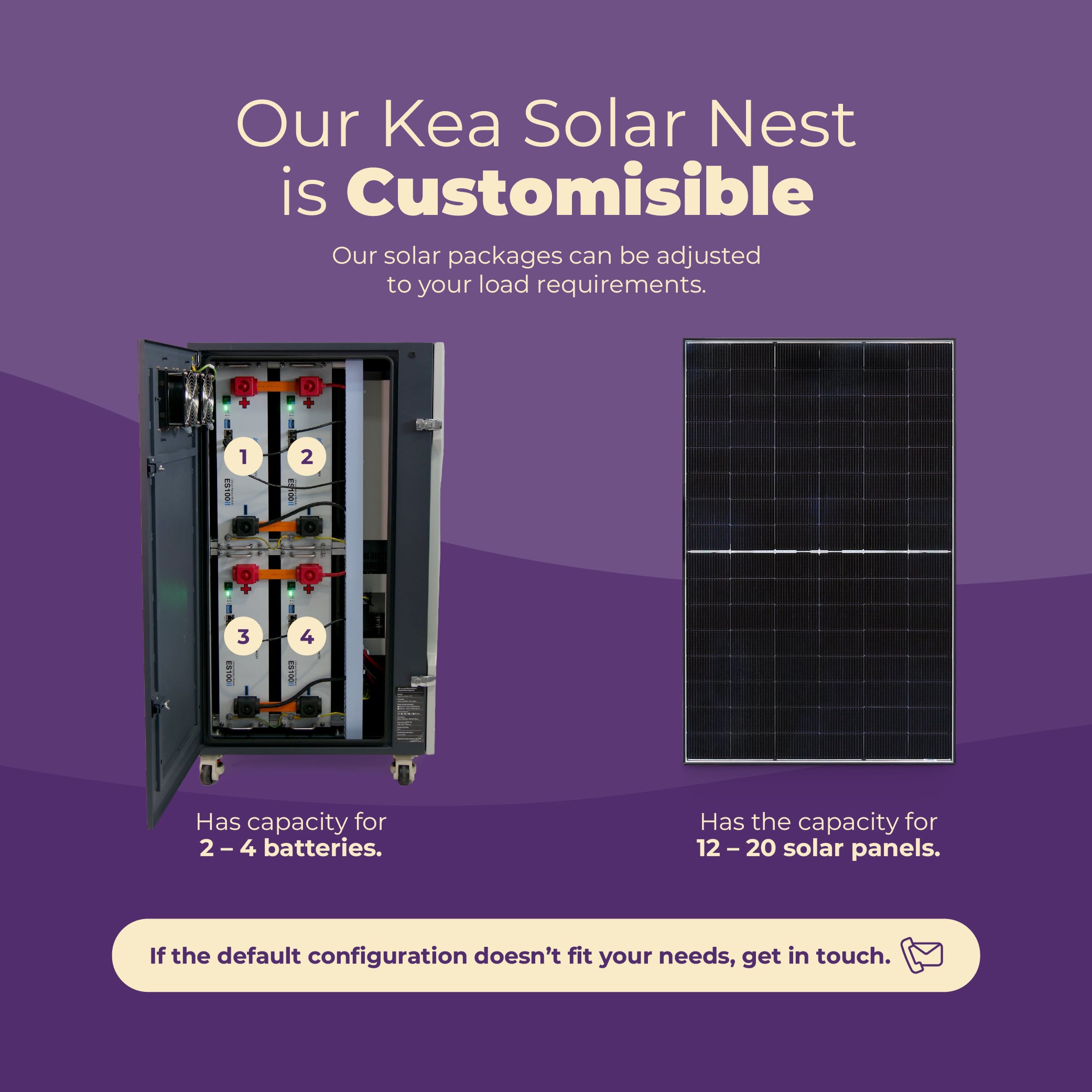

Lithium Battery Upgrades:
This type of lithium battery is highly expandable (up to 160 batteries) but consideration must be made for racking and correct cabling.
Battery upgrades should be done within 6 months of purchasing to avoid significant age differences. Warranties are affected if upgrading outside this range.

Solar Panel Upgrades:
We recommend a maximum of 24 panels on this controller. For further expansion, additional controllers can be wired in parallel.
This controller has 2 MPPT inputs. This is great for expandability as both arrays are completely independent so they can be of different size, facing or panel type to each other.

For all options please get in touch with the team for advice and a discount on your upgrade parts.

RISEN Tier 1 Solar panel:
25 year material / 30 year performance warranty

TBB Riio SUN 8kVa PRO Series
Standard 4 yrs, NOVA registered: +1 (5 yrs)

TBB E4 Monitoring Series:
Standard 4 yrs, NOVA registered: +1 (5 yrs)

TBB ES100II Lithium Battery Series:
Standard 7 yrs, NOVA registered +3 (10 yrs)

*TBB Nova online portal registration required within six (6) months of installation completion. Subject to continuous online presence
*Only original owner of product at initial installation site is eligible for warranty coverage, unauthorised resale and installation will void warranty.

Here are some links to other manuals related to what's included:

Download Instruction Guide - KEA Solar Nest

Helpful articles:

Our guides

We have custom made guides for our off-grid solutions.

You will find our helpful guides in the Details section under the Downloads drop down menu. Our guides are especially made for each solution. The Installation Guide contains step-by-step instructions for setting up your system.
