The Rimu Solar Reserve | 10kW Grid-Tied Solar System
1 4

The Rimu Solar Reserve | 10kW Grid-Tied Solar System

$32,700 $32,700
Tax included.
In stock

Gear + Install through GridFree is now available:
Standard installation is $9,700 (including GST) on top of the gear price.

Price varies due to site & project so please talk to us to get an accurate solar package & installation quote.

Please note:
This system can be fully customized and expanded to suit your power needs.
Array Size
Array Size

15200W

Battery capacity
Battery capacity

19.96kWh

Inverter size
Inverter size

10000W

Generator compatibility
Generator compatibility

With additional transfer switch

GridFree Qcard Kits Need finance?
The Rimu Solar Reserve | 10kW Grid-Tied Solar System
Scroll to section
A complete solar and battery solution for Kiwi homes

The Rimu Solar Reserve | 10kW Grid-Tied Solar System

A complete residential solar system that helps you generate more of your own power, reduce reliance on the grid, and keep essential appliances running during a power outage.

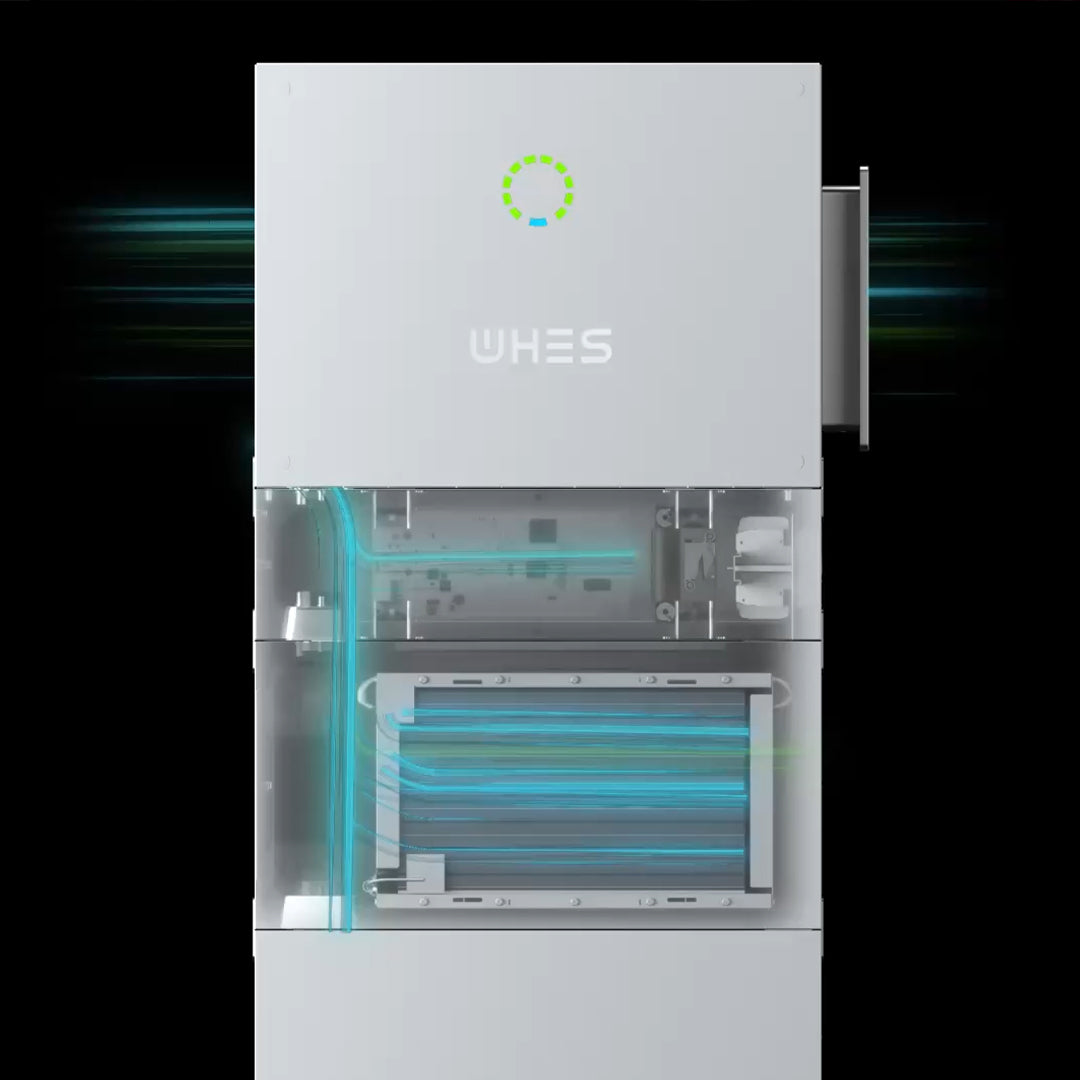

At the heart of the system is the WHES PowerPod IP65, an all-in-one solar and battery solution designed to simplify installation and retrofitting.

The system uses a stackable inverter and lithium batteries.

The batteries can use up to 90% of their stored energy, giving you more usable power while maintaining reliable, long-term performance.

Flexibility to use your stored solar energy when it matters most:

- Keep the essentials running during a power outage.

- Store solar energy for later, rather than sending excess power back to the grid for a low return.

- Shift your energy use to help reduce the amount you spend on peak electricity.

- Customisable battery storage to suit your power needs.

Built for the future.

The ideal residential solar system for Kiwi homes that want a balance of solar power, battery storage and energy independence.

The Rimu Solar Reserve | 10kW Grid-Tied Solar System

Powered By WHES

The Solar Reserve Series is built by serious battery storage specialists.

WHES specialises in battery energy storage solutions, rather than simply adding batteries to an existing solar product range. With more than 16 years of energy storage R&D, 800+ large scale projects worldwide, and solutions deployed across more than 50 countries, WHES brings extensive experience in designing and developing energy storage systems.

Their technology gives the Solar Reserve Series a strong foundation in specialist battery storage technology, featuring:

  • Smart energy management through the WHES app, giving you real-time visibility of your solar generation and household energy consumption, wherever you are.
  • Flexible and expandable storage so you can start with the capacity you need and add more battery modules as your energy needs grow.
  • Four layers of protection designed to protect the battery from the cell level through to the overall system structure.
  • High-quality battery cells tested to the rigorous UL 9540A standard for battery energy storage systems.
  • Built-in fire suppression in each battery module, providing an additional layer of protection in the event of a thermal event.
The Rimu Solar Reserve | 10kW Grid-Tied Solar System

Specs & Additional Info.

Includes everything you need to get up and running.

Our packages include all the main solar hardware you need, along with supporting manuals and guides for both the installer and the end customer.


Solar Panel Array Size : 15.2kW
Number of MPPT Trackers: 2
Number of PV Inputs: 4

Total Storage : 19.97 kWh
Usable Storage : 17.964 kWh

Inverter Rating : 10000W
Inverter Peak Rating (backup): 160%

32x 475W Risen Bifacial Panels
4x 4.99kWhWHES LiFePO4 Battery Modules
1x HV Battery Isolator Box (stack mounted)
1x 10kW WHES Grid-tied Hybrid Inverter
Flush Solar Mount Set
4x 20m PV Cable Sets or 100m Reel
3x PV DC Isolators
2x AC Isolators

WHES Single Phase Stacks (SIA):
Can be configured from 1 to 4 batteries on a single stack. The larger the inverter the larger the minimum number of batteries are recommended to ensure full back up power.

These systems can be increase beyond 4 batteries by adding a dedicated DC coupled stack and junction box.

Future Expandability:
Although in most cases batteries can be added after installation (within 12 months is recommended at max), we recommend adding to the desired size from the beginning. Due to these units being stackable, there are practical considerations with adding batteries in the future that must be taken into account during the initial installation.

Solar Panels:
The solar panel quantity in this package can be customized from the beginning.

Panels can be added to the inverter later on if there is a spare input or MPPT - with some restrictions. Please discuss this with the team beforehand if you would like more panels in the future.

AC Coupling:
Additional inverter and battery stacks can be added to the system in parallel to increase overall capacity (battery, panel and inverter).

RISEN Tier 1 Solar panel:
25 year material / 30 year performance warranty

WHES Inverter and battery stack:
10 year limited warranty

Batteries subject to throughput warranty as well as calendar waranty.

Warranties commence from ship out or pick up date.

How Residential Solar Works


Solar Panels

Your solar panels geneate energy from sunlight.

Inverter & Battery System

The inverter uses this energy to power your household loads.
Excess power is stored in the batteries for later use.

The Grid

When your batteries are full, excess power is sent back to the grid for credit. When you don't produce enough energy, you use power from the grid.

Let's Get Started

Find the right solution

We'll guide you to the right solution and help you understand the costs with our transparent pricing

Remote or in-person site visit

So we can confirm the scope of the project and make sure your ideal solution will fit.

Confirm and schedule

Once we have the green light from our technical team, we can proceed with the order and get the install scheduled.

Support all the way

We're there for you and the installer during installation, commissioning, and beyond.

GET A FREE QUOTE
