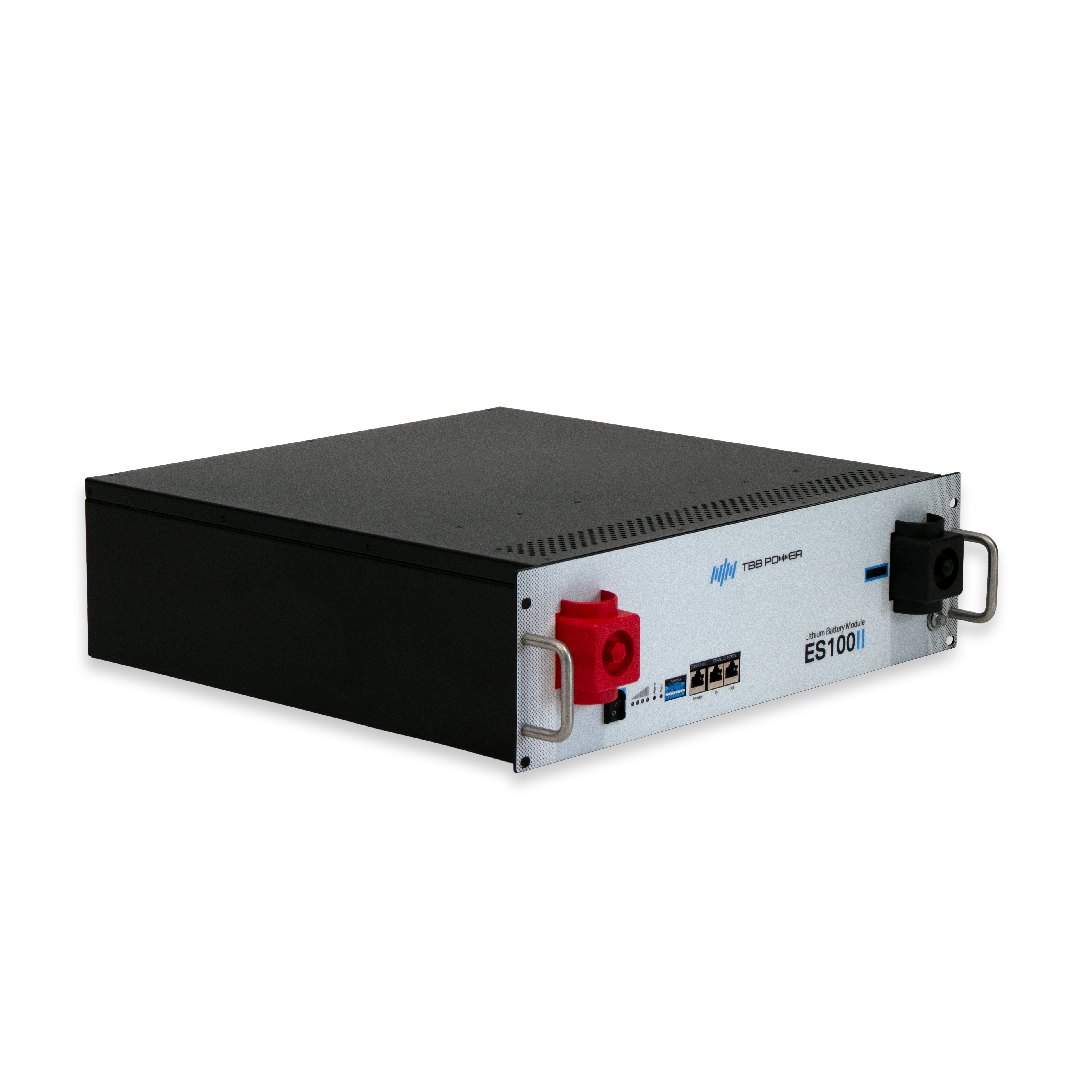

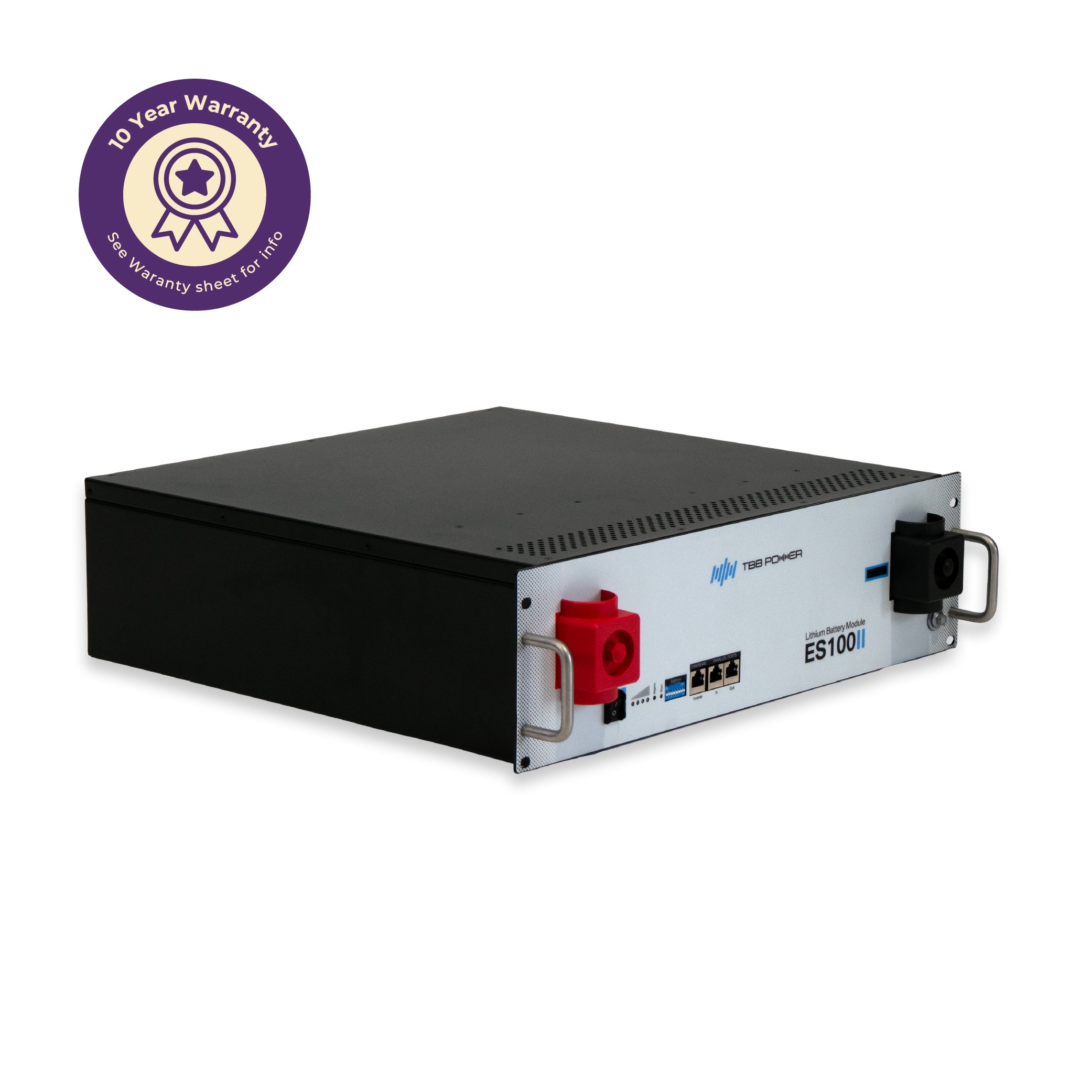

TBB Power ES100 II Lithium Battery Module
The ES100 II by TBB Power is a cutting-edge 48V 105Ah lithium battery module, designed to meet the demands of back-up power systems, solar off-grid setups, and residential energy storage systems. Fully compatible with all SolarNest products, this versatile and reliable battery solution is engineered to deliver exceptional performance, efficiency, and durability.
Why Choose the ES100 II?
Safety and Performance
- Built with safe Lithium Iron Phosphate (LiFePO4) cells, offering high energy density and a compact design.
- Supports short-term high-current charging and discharging, perfect for demanding applications.
- Equipped with an intelligent Battery Management System (BMS) for optimal module management and safety.
Scalability and Flexibility
- Supports up to 32 modules in parallel, and with a CAN battery hub, you can expand further to 5 x 32 units.

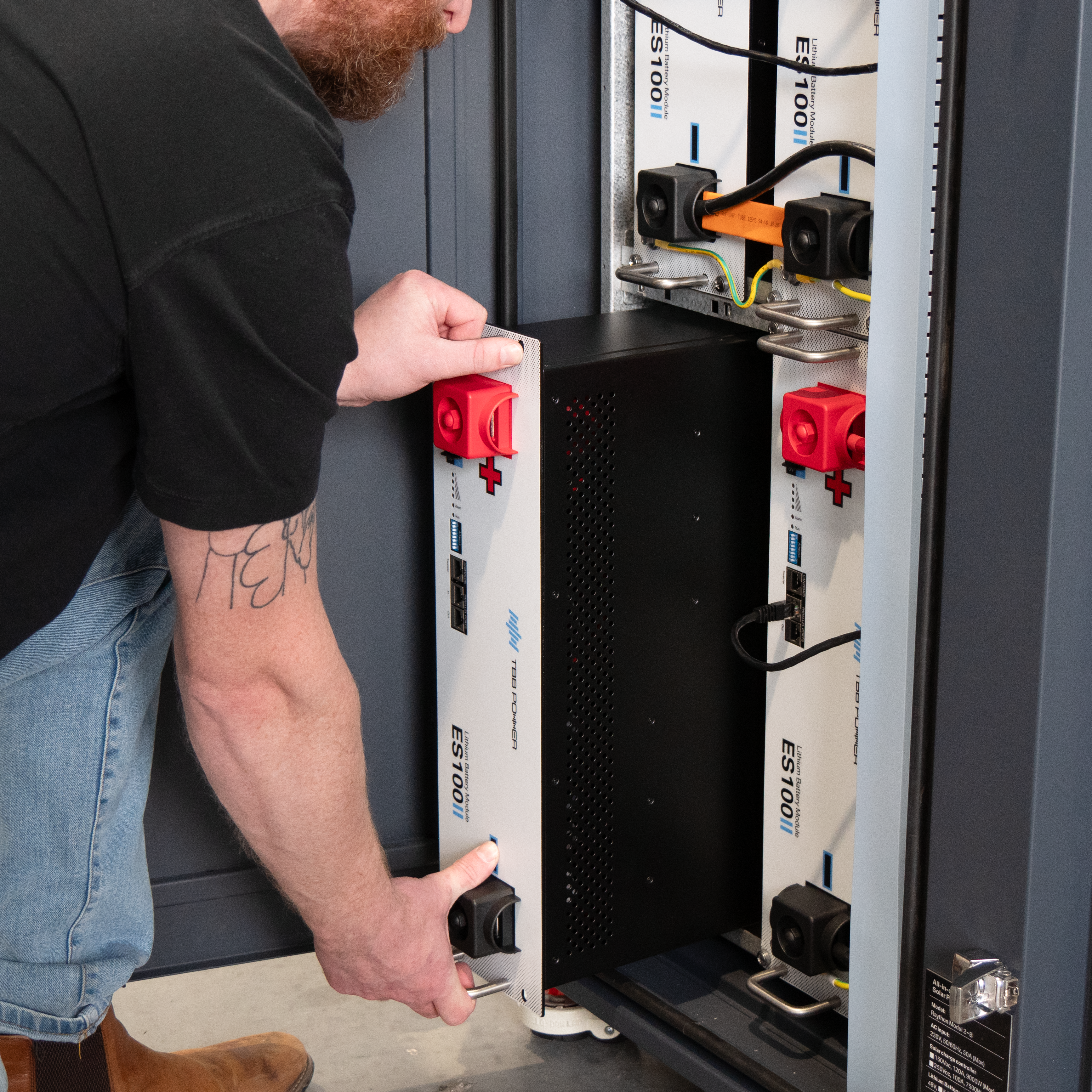

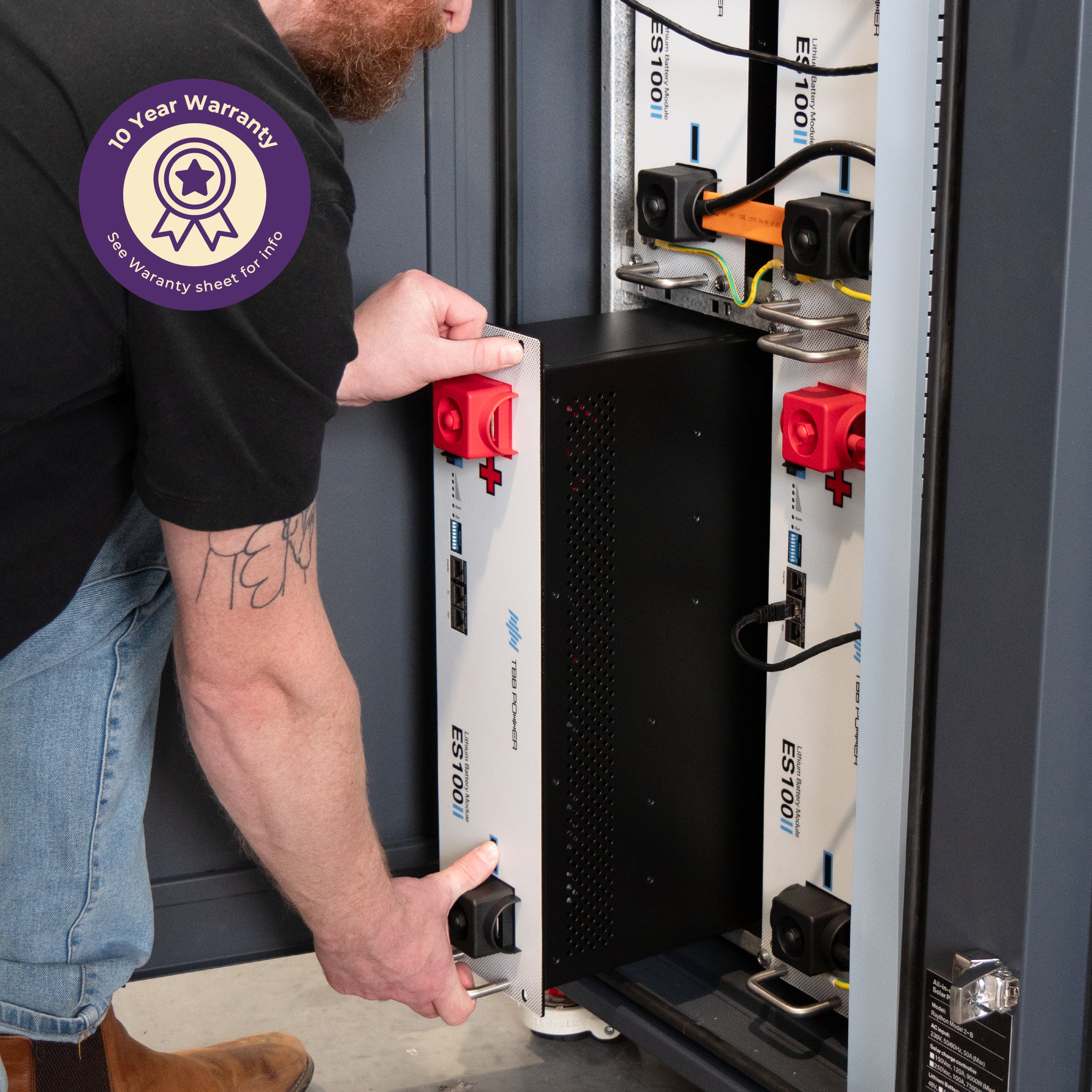

- Universal positive and negative terminals simplify installation.
- Practical pull-ear design enhances ease of use during setup.

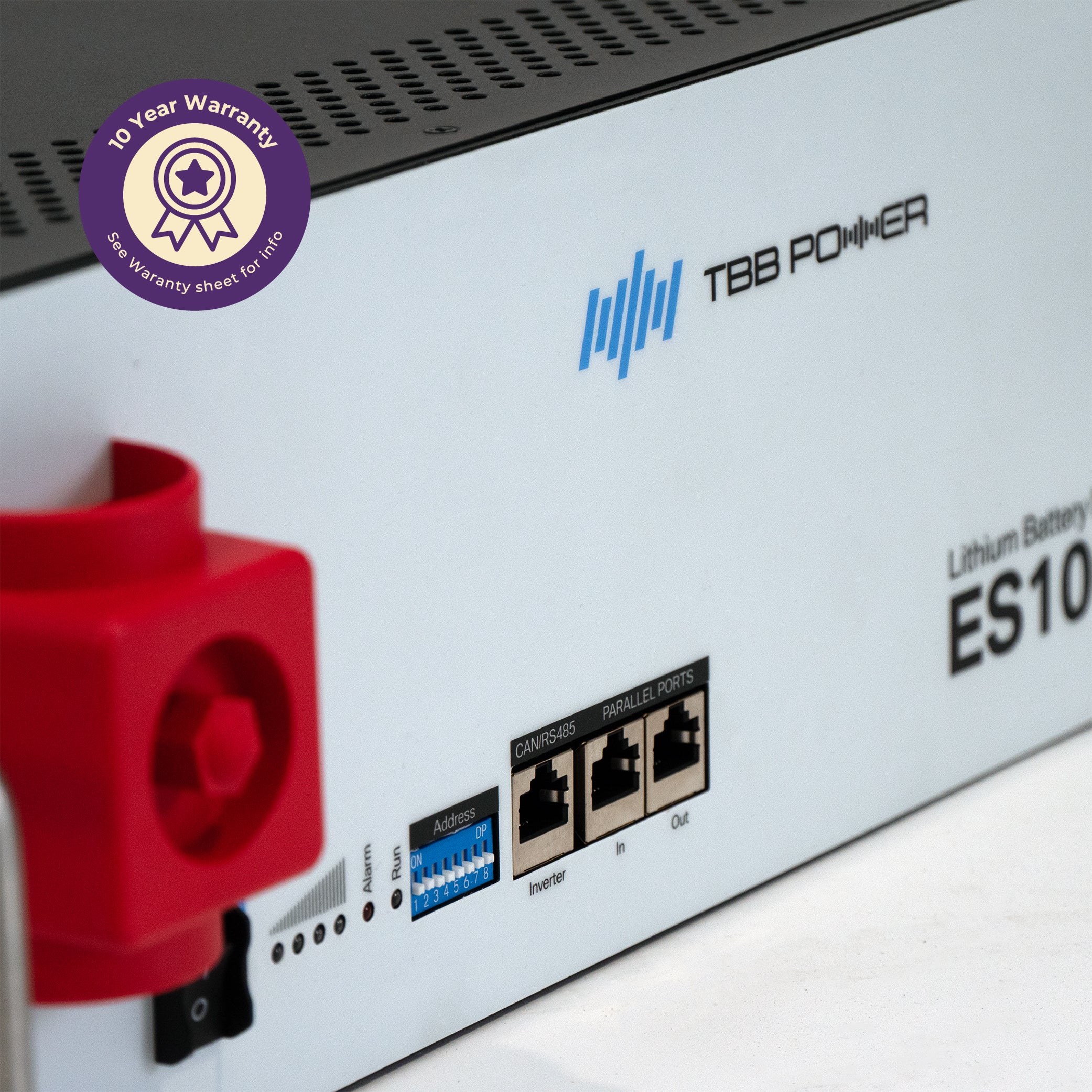

- Compatible with a wide range of leading inverter brands via external CAN communication and integrated RS485 communication ports.
Long Lifespan and Efficiency
- Advanced technology provides 90% Depth of Discharge (D.O.D.) and a remarkable 6,000-cycle lifespan.
- Reliable operation across a wide range of temperatures, from -20° to 55°C.
- Natural heat dissipation ensures a low-maintenance cooling method.
Durability and Standards
- Designed with IP20 protection for safe indoor use.
- Certified to meet IEC62619, CE, and UN38.3 standards (with SDOC available upon request).
Technical Specifications
Parameter | Details |
---|---|
Nominal Voltage | 48V |
Work Voltage Range | 42 ~ 54.75V |
Nominal Capacity | 105Ah |
Nominal Energy | 5.04kWh |
Max Power | 5.04kWh |
2S Peak Power | 5.76kWh |
Charging Current | 52.5A |
Max Charging Current | 105A |
Discharge Current | 52.5A |
Max Discharge Current | 105A |
Cycle Life | 90% D.O.D., 6,000 cycles |
Operating Temperature | Discharge: -20° ~ 55°C, Charge: 0° ~ 55°C |
Recommended Temperature | Discharge: 15° ~ 30°C, Charge: 15° ~ 30°C |
Altitude | <2000m |
Cooling Method | Natural heat dissipation |
Protection Degree | IP20 |
Dimensions (L x W x H) | 482.6 x 450 x 133.4 mm |
Weight | 40kg |
Key Features
- Modular Expandability: Easily scale your energy storage system to meet growing needs.
- Energy Efficiency: Maximize your system’s output with a high-capacity design.
- User-Friendly Design: Simplified installation and operation for effortless integration.
Whether you’re powering your off-grid retreat, creating a resilient backup power system, or enhancing your residential energy storage, the ES100 II is the perfect solution.
