The Freedom Pro | Off-Grid Solar System

Gel:
Solar Panel Array Size : 3520 W
Generation in 3 Peak Sun Hours : 10560 Wh
Number of MPPT Trackers: 2

Total Storage : 19.2 kWh
Usable Storage : 9.6 kWh
Nominal Voltage : 48 V

Inverter Continuous Rating : 4000 W
Inverter Rating 30min : 5000 W
Inverter Peak Rating : 15000 W

Lithium:
Solar Panel Array Size : 3520 W
Generation in 3 Peak Sun Hours : 10560 Wh
Number of MPPT Trackers: 2

Total Storage : 10.08 kWh
Usable Storage : 8.064 kWh
Nominal Voltage : 48 V

Inverter Continuous Rating : 4000 W
Inverter Rating 30min : 5000 W
Inverter Peak Rating : 15000 W

The Freedom Pro Gel:

• 8x Monocrystalline Solar Panel
• 8x 12V 200Ah Gel Lead Acid Deep Cycle Batteries
• 1x Matrix II 5.0S
• 2x Solar Mounts (4-panel set)
• 1x 20m Solar Cable Pair
• 1x Solar Isolator
• 2x PV Fuse and Fuse Holder
• 1x MCB Enclosure
• 1x 200A MCCB with Enclosure
• 1x 1m 35mm2 Precrimped Battery Cable Pair
• 1x 3m 35mm2 Precrimped Battery Cable Pair
• 7x 30cm 50mm2 Battery series cable
• 2x 2m Battery Parallel Cable
• 1x 150A ANL battery fuse and holder

The Freedom Pro Lithium:

• 8x Monocrystalline Solar Panel

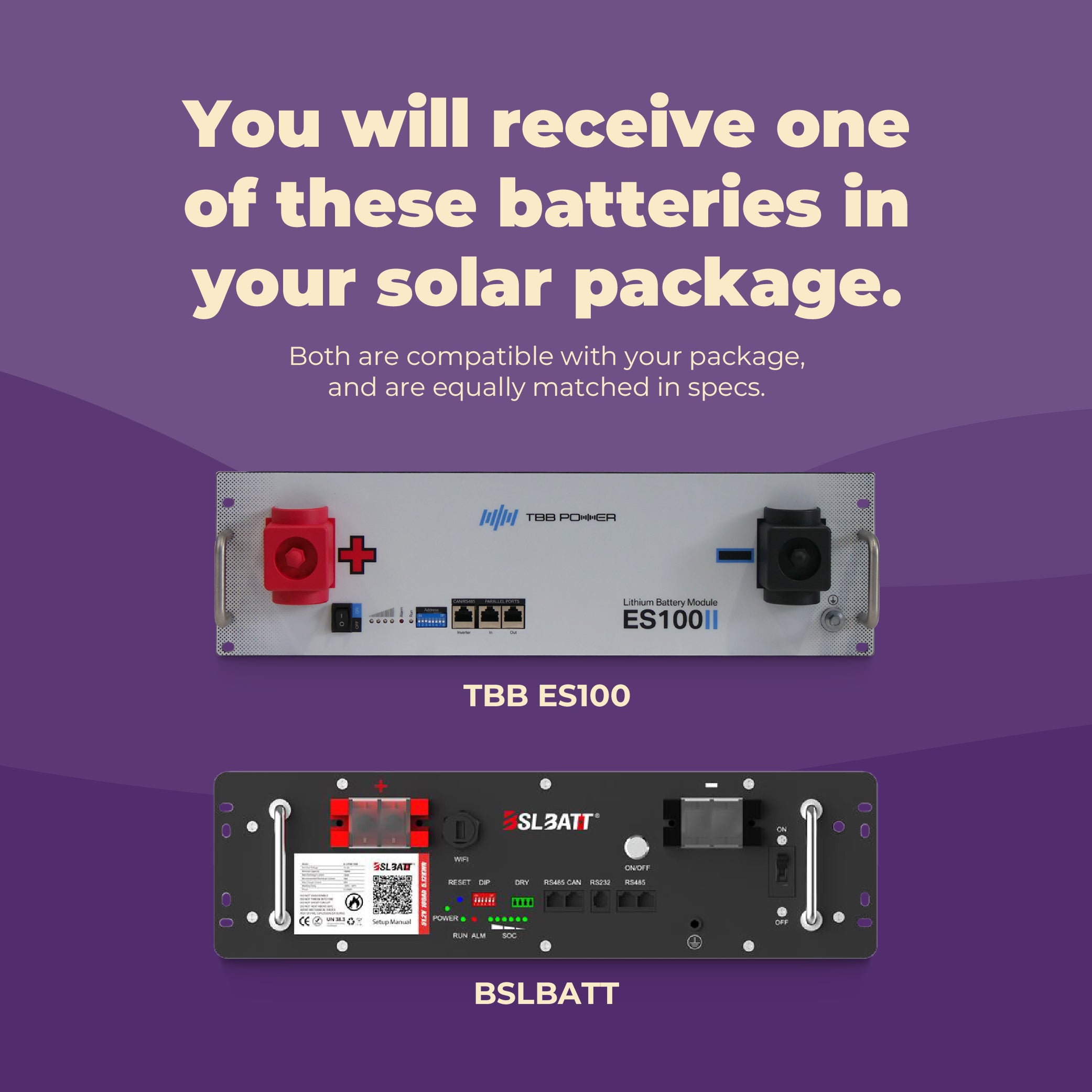

• 2x 51.2V 5.04kWh LiFeP04 Lithium Battery
• 1x Matrix II 5.0S
• 2x Solar Mounts (4-panel set)
• 1x 20m Solar Cable Pair
• 1x Solar Isolator
• 2x PV Fuse and Fuse Holder
• 1x MCB Enclosure
• 1x 200A MCCB with Enclosure
• 1x 1m 35mm2 Precrimped Battery Cable Pair
• 1x 3m 25mm2 Precrimped Battery Cable Pair
• 1x Battery Comms Cable
• 2x Battery Rack

Gel Battery Upgrades:
Up to 12 Gel batteries total can be used on this kit.
Battery upgrades should be done within 6 months of purchasing to avoid significant age differences. Warranties are affected if upgrading outside this range.

Lithium Battery Upgrades:
This type of lithium battery is highly expandable (up to 160 batteries) but consideration must be made for racking and correct cabling.
Battery upgrades should be done within 6 months of purchasing to avoid significant age differences. Warranties are affected if upgrading outside this range.

Solar Panel Upgrades:
We recommend a maximum of 24 panels on this controller.
This controller has 2 MPPT inputs. This is great for expandability as both arrays are completely independent so they can be of different size, facing or panel type to each other.

For all options please get in touch with the team for advice and a discount on your upgrade parts.

TW Tier 1 Solar panel:
25 year material / 30 year performance warranty

TBB Matrix II Hybrid Inverter series:
Standard 4 yrs, NOVA registered: +1 (5 yrs)

TBB E4 Monitoring Series:
Standard 4 yrs, NOVA registered: +1 (5 yrs)

TBB ES100II Lithium Battery Series:
Standard 7 yrs, NOVA registered +3 (10 yrs)

Gridfree 12V200Ah Lead Acid GEL battery:
Standard 3 yr limited warranty on 50% Depth of Discharge

*TBB Nova online portal registration required within six (6) months of installation completion. Subject to continuous online presence
*Only original owner of product at initial installation site is eligible for warranty coverage, unauthorised resale and installation will void warranty.

Download Installation guide - Freedom PRO Lithium

Download Installation guide - Freedom PRO GEL
