The Freedom Pro | Off-Grid Solar System

Name: The Freedom Pro | Off-Grid Solar System
Brand: GridFree
SKU: 25-FREE-LI-U
Price: 15000.0 NZD
Availability: InStock

$15,000 NZD

Tax included.

Product variants

In stock

Array Size

3520W

Battery capacity

>10000Wh

Inverter size

5000W (Low-Frequency Inverter)

Generator compatibility

Yes - Manual, Autostart & Scheduling Supported

Need finance? GridFree Qcard Kits

How installation works

How to choose a solar mount?

The Freedom Pro | Off-Grid Solar System

Scroll to section

GridFree

The Freedom Pro | Off-Grid Solar System

The Freedom Kit PRO puts the power back in your hands. It's one of our most popular off grid solar power systems for lifestyle blocks and homesteads.

The Freedom Kit provides enough power to accommodate a lot of home comforts. As one of our more advanced off grid solar power systems, you will find you have more than enough power for most of the year.


What Can I Power?

Here is an example of some of the main loads our customers typically power with this system.

If you would like a more detailed understanding of your energy needs get in touch with us for a recommendation or get ahead by checking out our knowledge base. Here are some recommended articles to get started with:

How much power do I need?

Jargon breakdown

Lights

LED Recommended

Small Kitchen Appliances

Toaster, Kettle etc

Fridge Freezer and Chest Freezer

<250kWh/year each

Phone and Laptop Chargers

30W

Medium on demand pumps

<1500W

Washing Machine

Short cold cycles recommended

The Freedom Pro | Off-Grid Solar System

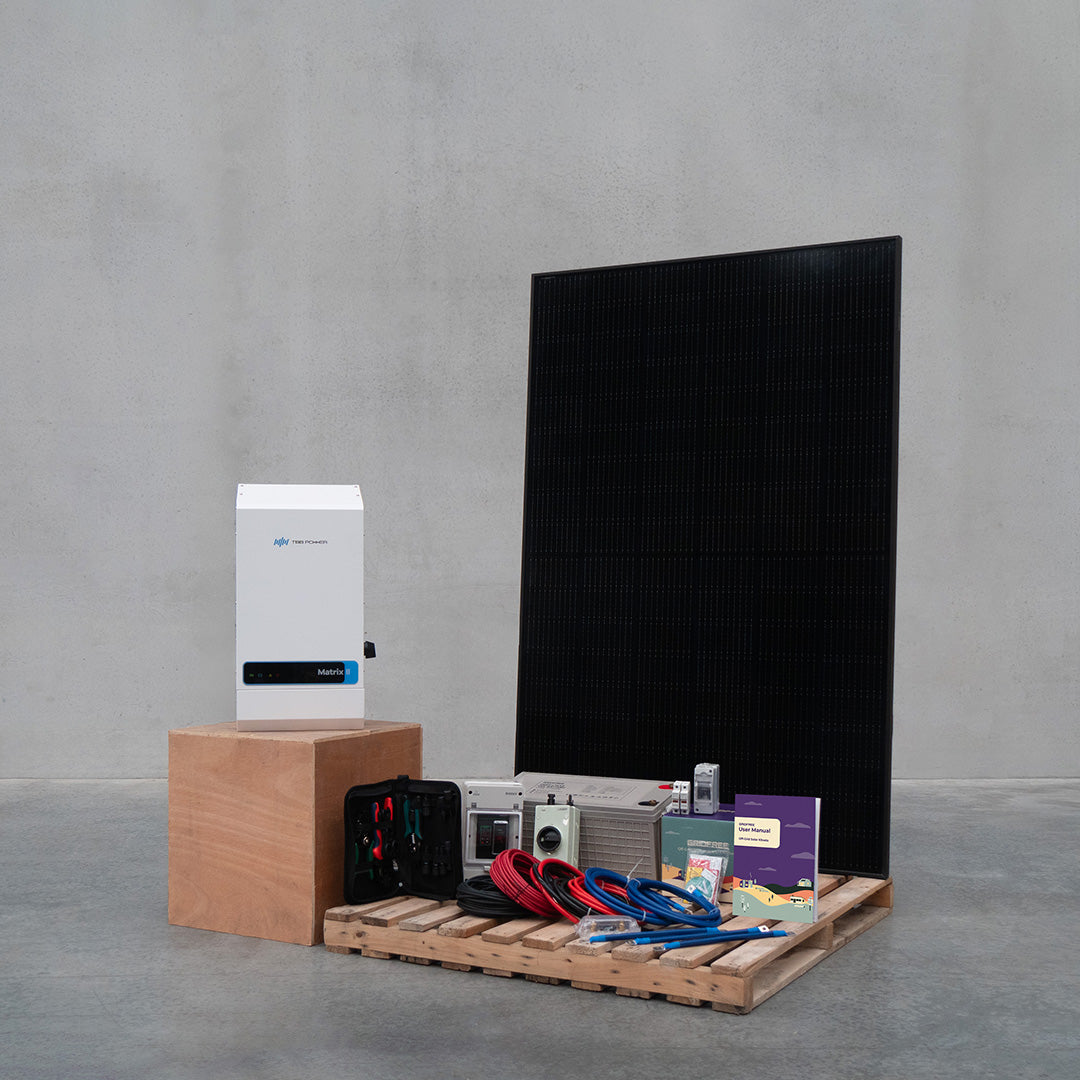

Includes everything you need to get up and running.

On top of the main components our packages include all the solar cables, battery cables, solar mounts, DC breakers and isolators that you need for our gear.

We do not supply anything that is installation specific such as AC cabling, conduit, earthing cable etc. So please get in touch if you had any questions about package contents.

Gel:
Solar Panel Array Size : 3520 W
Generation in 3 Peak Sun Hours : 10560 Wh
Number of MPPT Trackers: 2

Total Storage : 19.2 kWh
Usable Storage : 9.6 kWh
Nominal Voltage : 48 V

Inverter Continuous Rating : 4000 W
Inverter Rating 30min : 5000 W
Inverter Peak Rating : 15000 W

Lithium:
Solar Panel Array Size : 3520 W
Generation in 3 Peak Sun Hours : 10560 Wh
Number of MPPT Trackers: 2

Total Storage : 10.08 kWh
Usable Storage : 8.064 kWh
Nominal Voltage : 48 V

Inverter Continuous Rating : 4000 W
Inverter Rating 30min : 5000 W
Inverter Peak Rating : 15000 W

The Freedom Pro Gel:

The Freedom Pro Lithium:

Gel Battery Upgrades:
Up to 12 Gel batteries total can be used on this kit.
Battery upgrades should be done within 6 months of purchasing to avoid significant age differences. Warranties are affected if upgrading outside this range.

Lithium Battery Upgrades:
This type of lithium battery is highly expandable (up to 160 batteries) but consideration must be made for racking and correct cabling.
Battery upgrades should be done within 6 months of purchasing to avoid significant age differences. Warranties are affected if upgrading outside this range.

Solar Panel Upgrades:
We recommend a maximum of 24 panels on this controller.
This controller has 2 MPPT inputs. This is great for expandability as both arrays are completely independent so they can be of different size, facing or panel type to each other.

For all options please get in touch with the team for advice and a discount on your upgrade parts.

TW Tier 1 Solar panel:
25 year material / 30 year performance warranty

TBB Matrix II Hybrid Inverter series:
Standard 4 yrs, NOVA registered: +1 (5 yrs)

TBB E4 Monitoring Series:
Standard 4 yrs, NOVA registered: +1 (5 yrs)

TBB ES100II Lithium Battery Series:
Standard 7 yrs, NOVA registered +3 (10 yrs)

Gridfree 12V200Ah Lead Acid GEL battery:
Standard 3 yr limited warranty on 50% Depth of Discharge

*TBB Nova online portal registration required within six (6) months of installation completion. Subject to continuous online presence
*Only original owner of product at initial installation site is eligible for warranty coverage, unauthorised resale and installation will void warranty.
