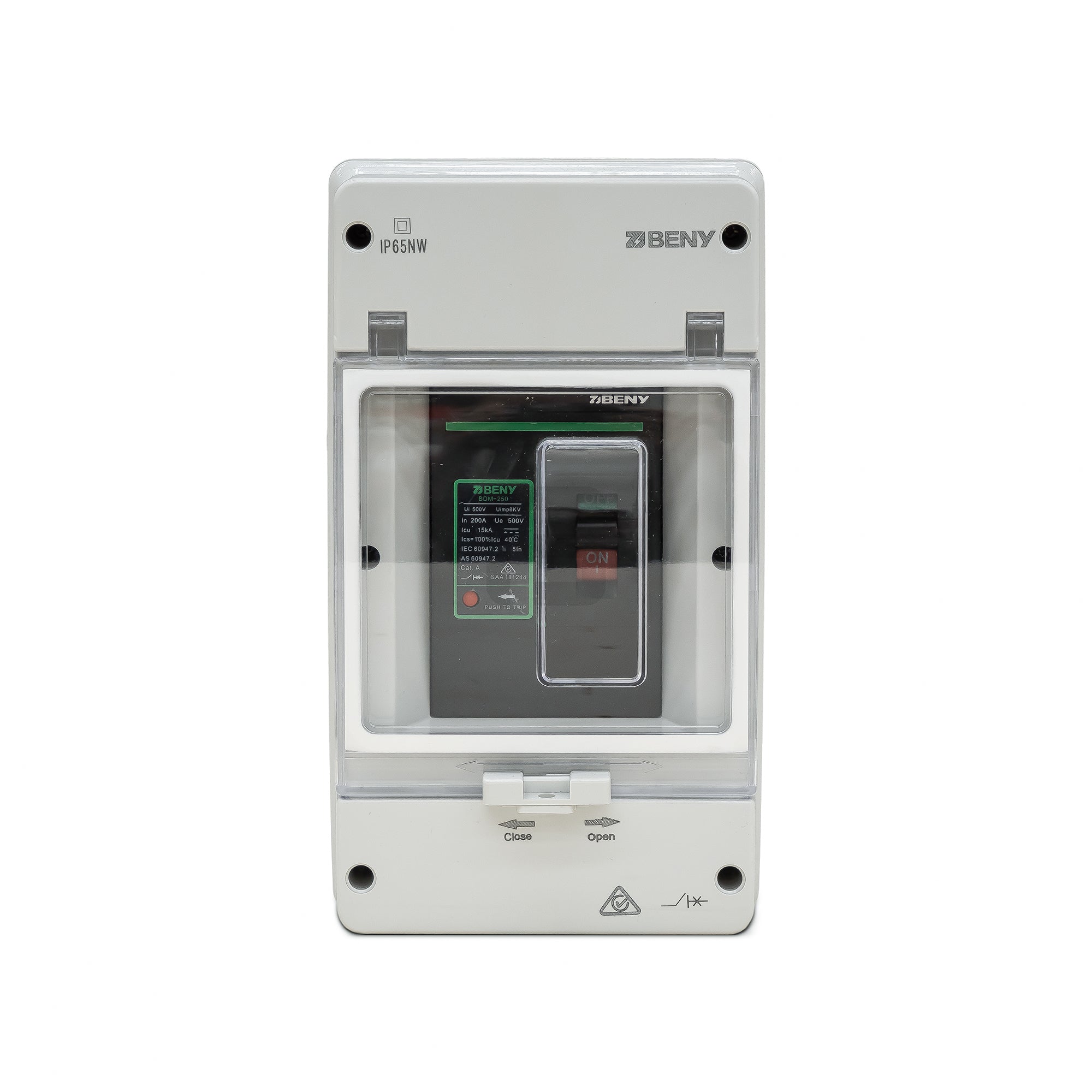

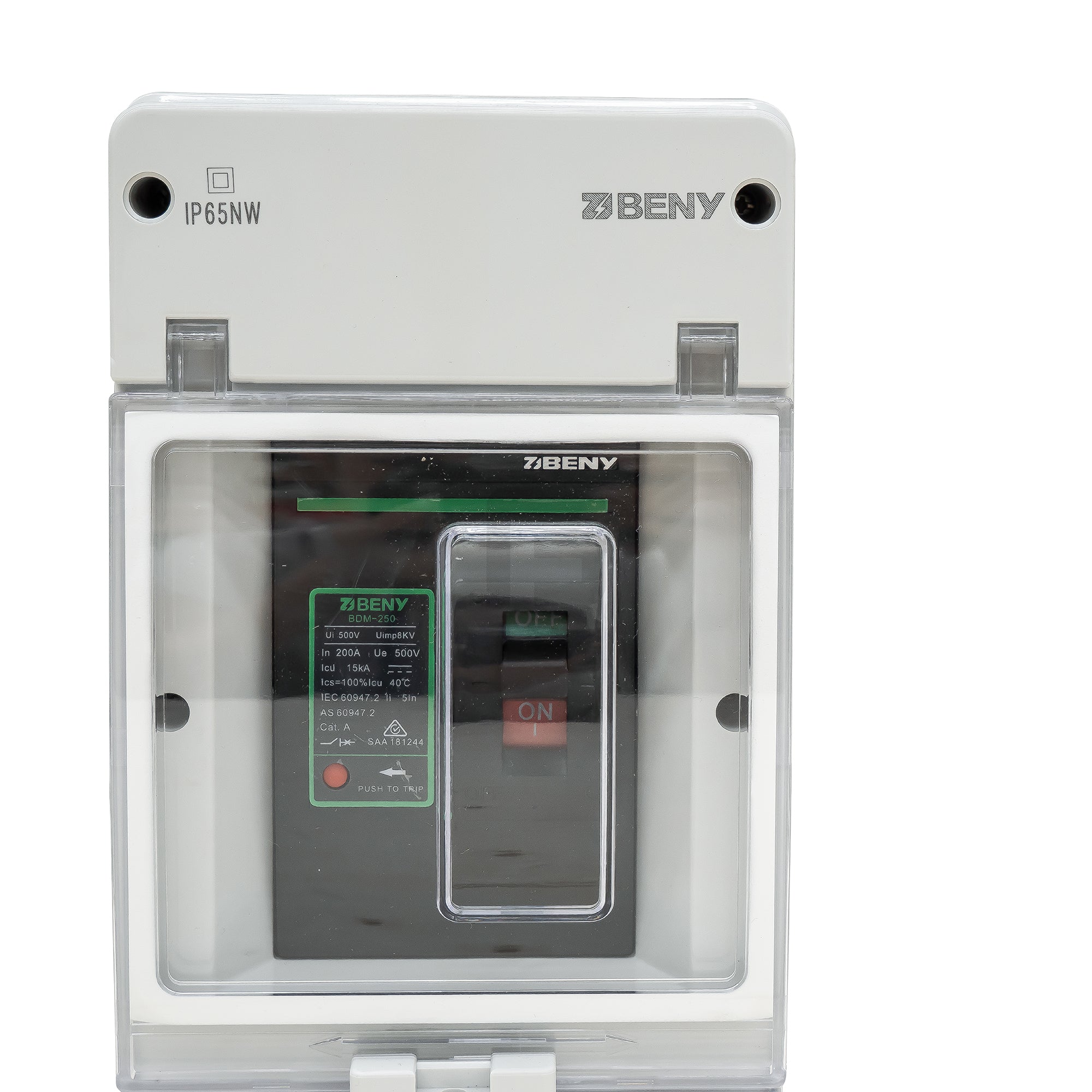

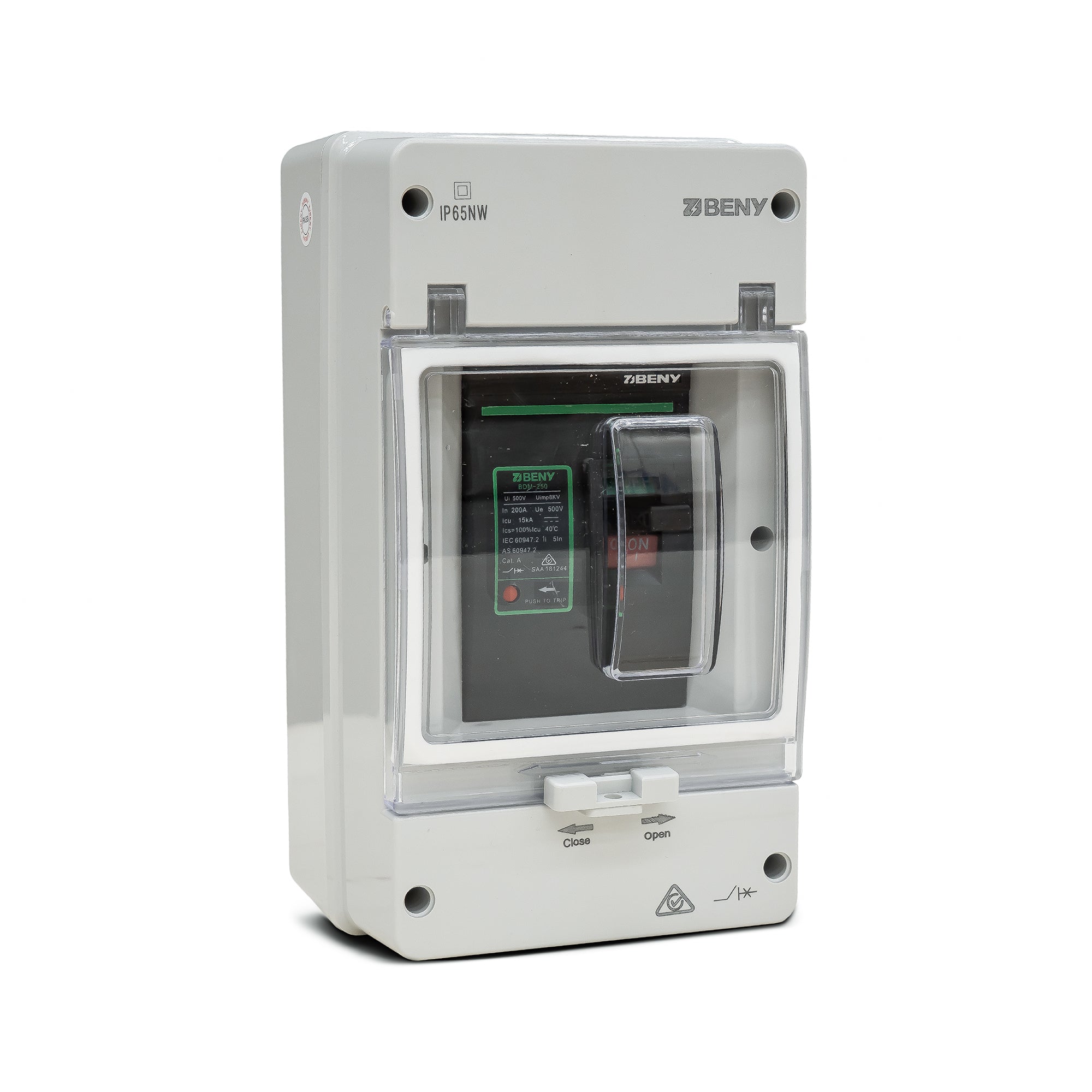

ZJBeny 200A MCCB & Enclosure

ZJBENY BDM Series PV DC Moulded Case Circuit Breaker (MCCB) – 200A

The BDM Series DC MCCB is designed for large-scale solar power systems, providing reliable protection for solar DC combiner boxes, inverters, and DC power distribution cabinets. With a rated voltage of up to 500V DC and current up to 250A, this breaker ensures overload and short-circuit protection for enhanced system safety.

Key Features:

• High short-circuit/breaking capacity for maximum safety
• Comprehensive protection, including overload, short circuit, and infrequent operation

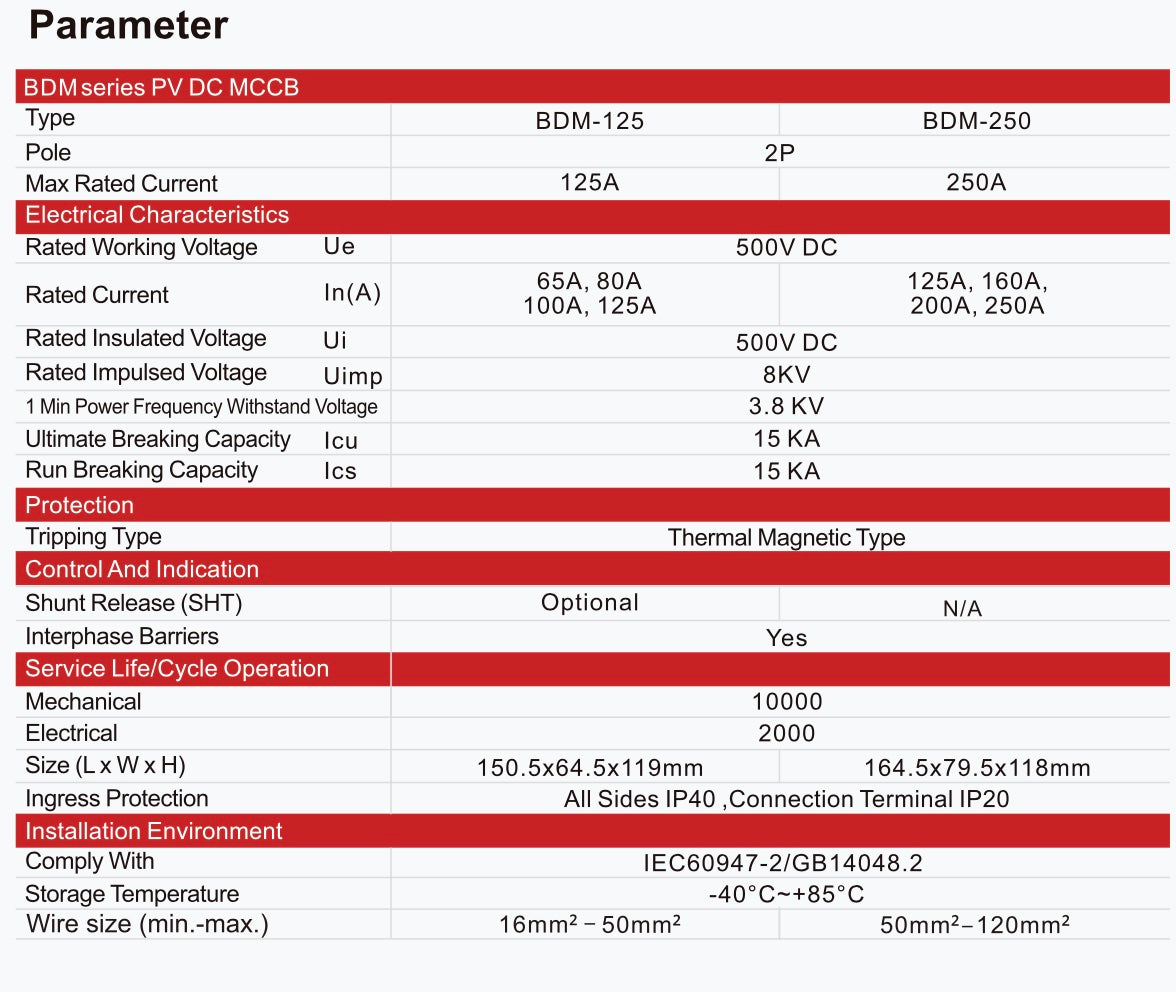

• Rated voltage: Up to 500V DC | Rated current: 200A
• Compliant with IEC60947-2, GB14048-2 standards
• Designed for easy installation in solar power systems

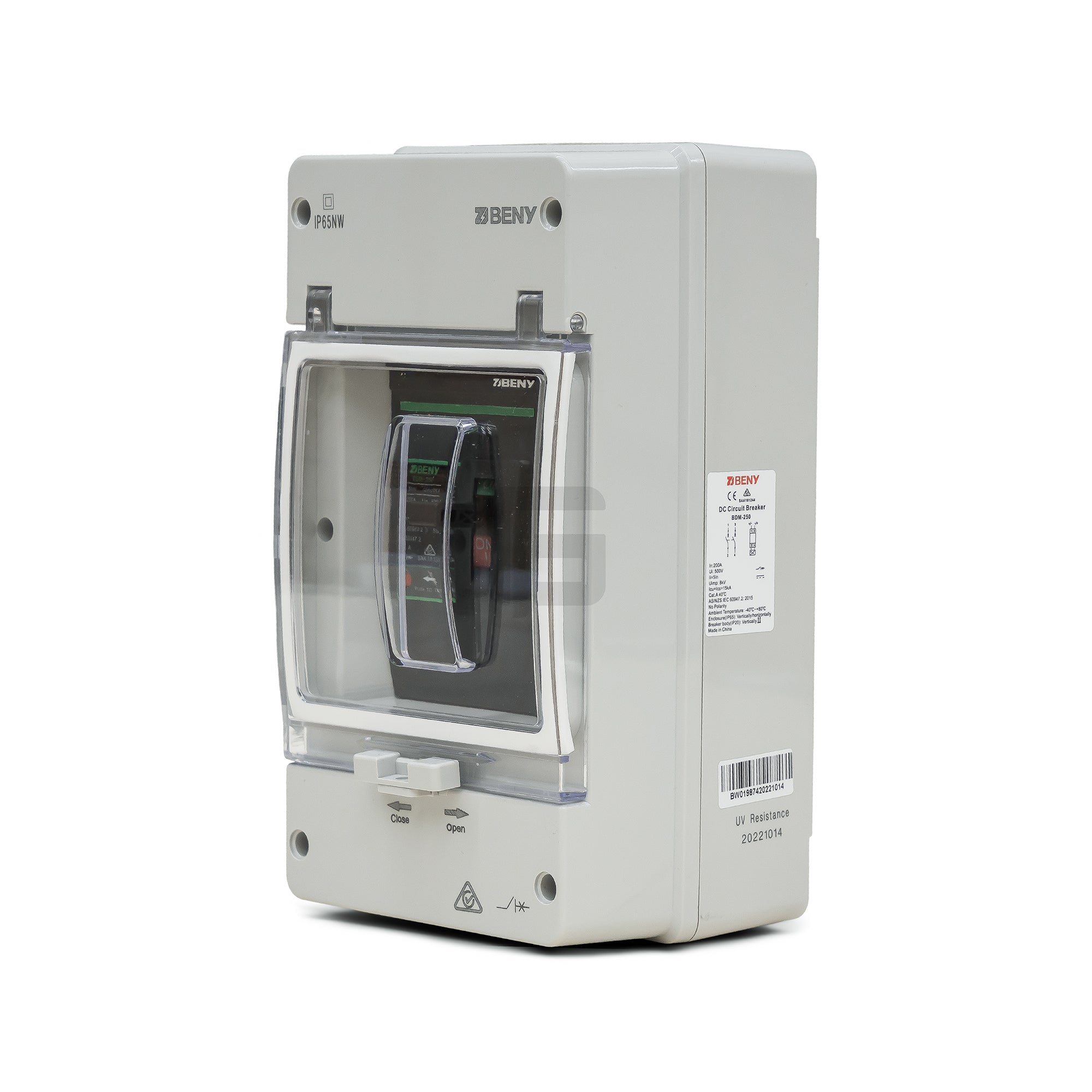

• Durable IP65 enclosure for the BDM-200A, providing waterproof protection

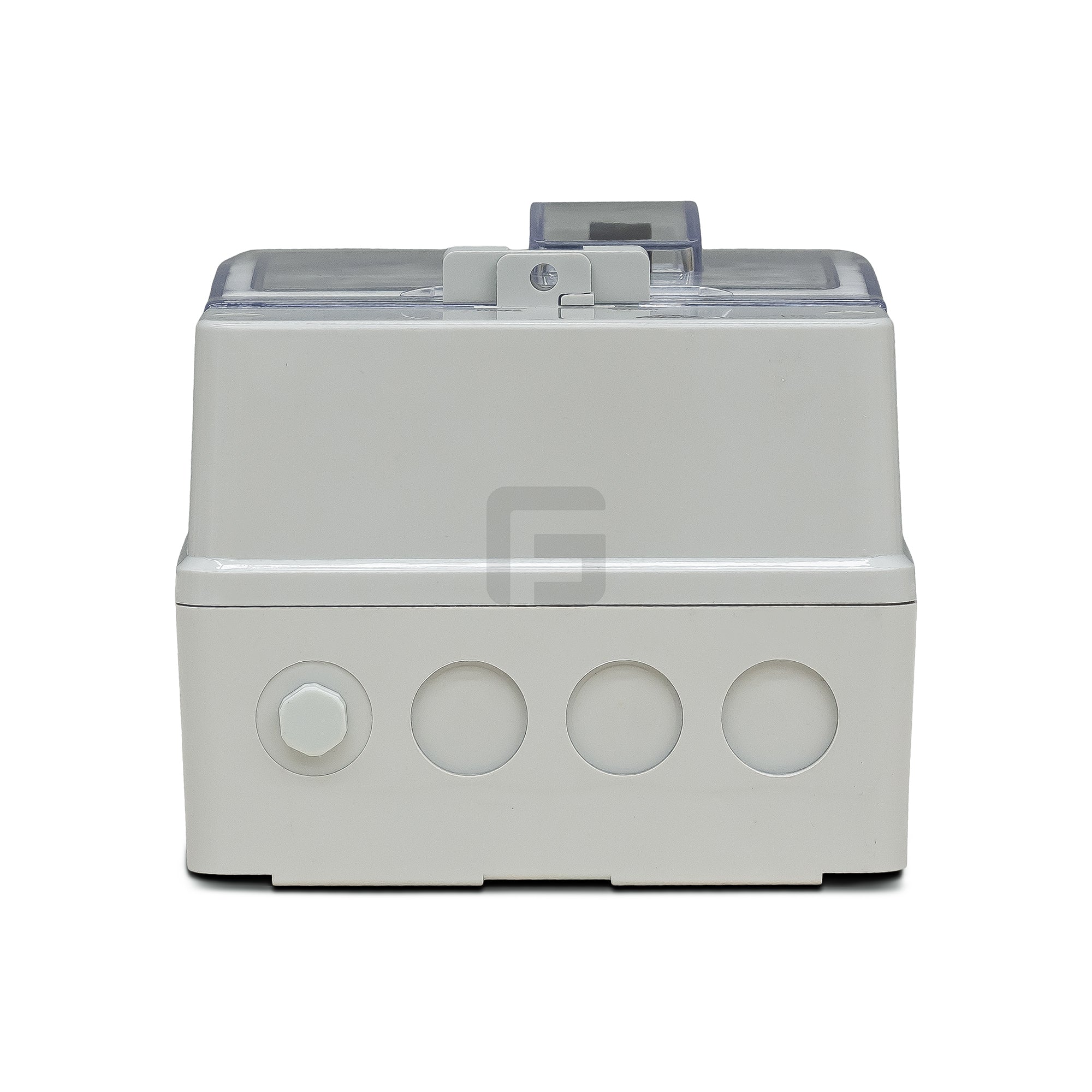

Dimensions (BDM-200A with IP65 Enclosure):

• Length: 270.7mm
• Width: 153.7mm
• Depth: 133.8mm

This MCCB is an essential component for off-grid and grid-tied solar power applications, ensuring reliable performance and superior protection.
