The Back Gully Solar Water Pumping Kit
$2,950.00 NZD $2,950.00 NZD
Tax included.
In stock

Need Finance?

The Back Gully Solar Water Pumping Kit
Scroll to section
GridFree

The Back Gully Solar Water Pumping Kit

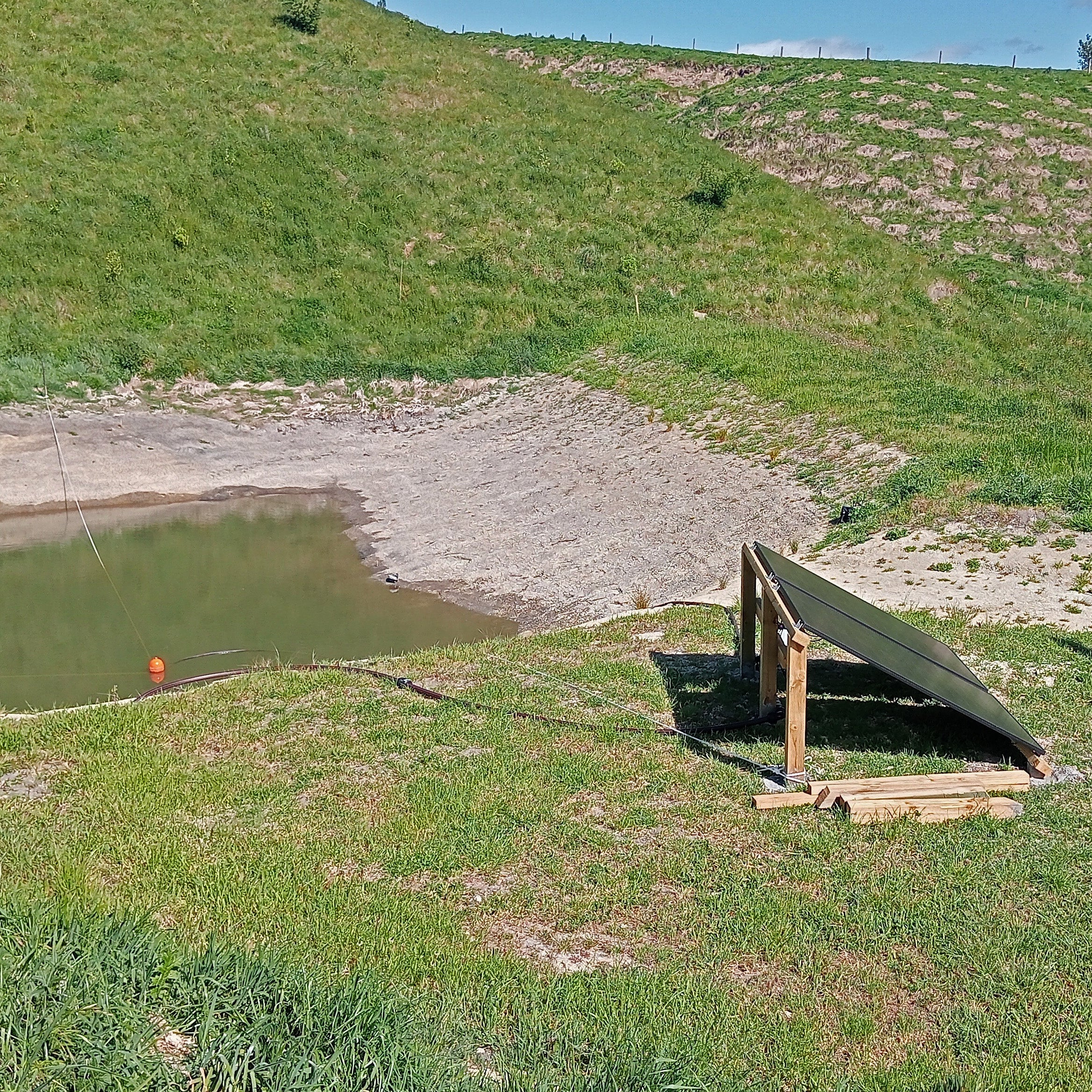

Need water where you do not have power? Check out The Back Gully Kit - A completely off-grid solar pumping solution.

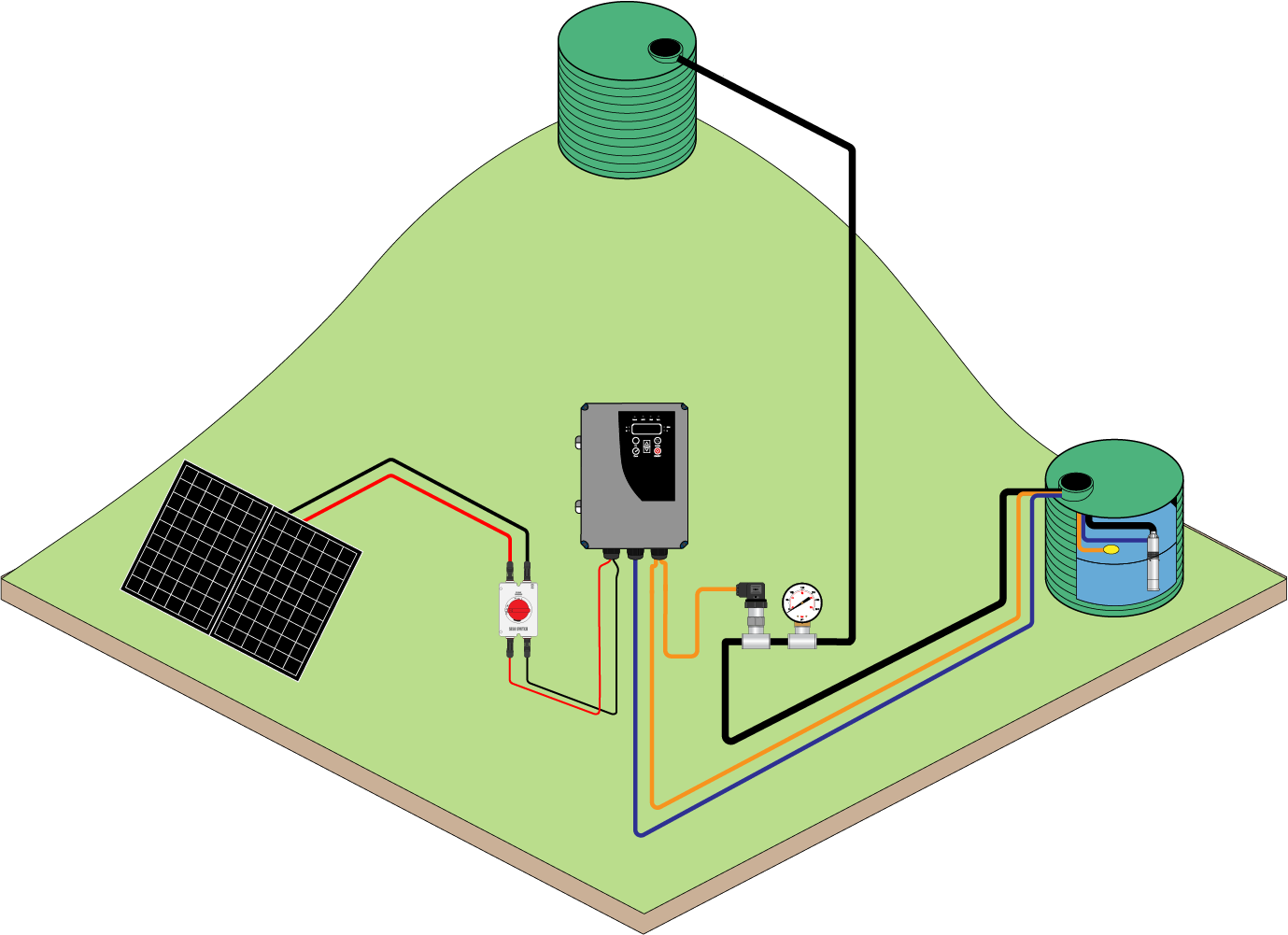

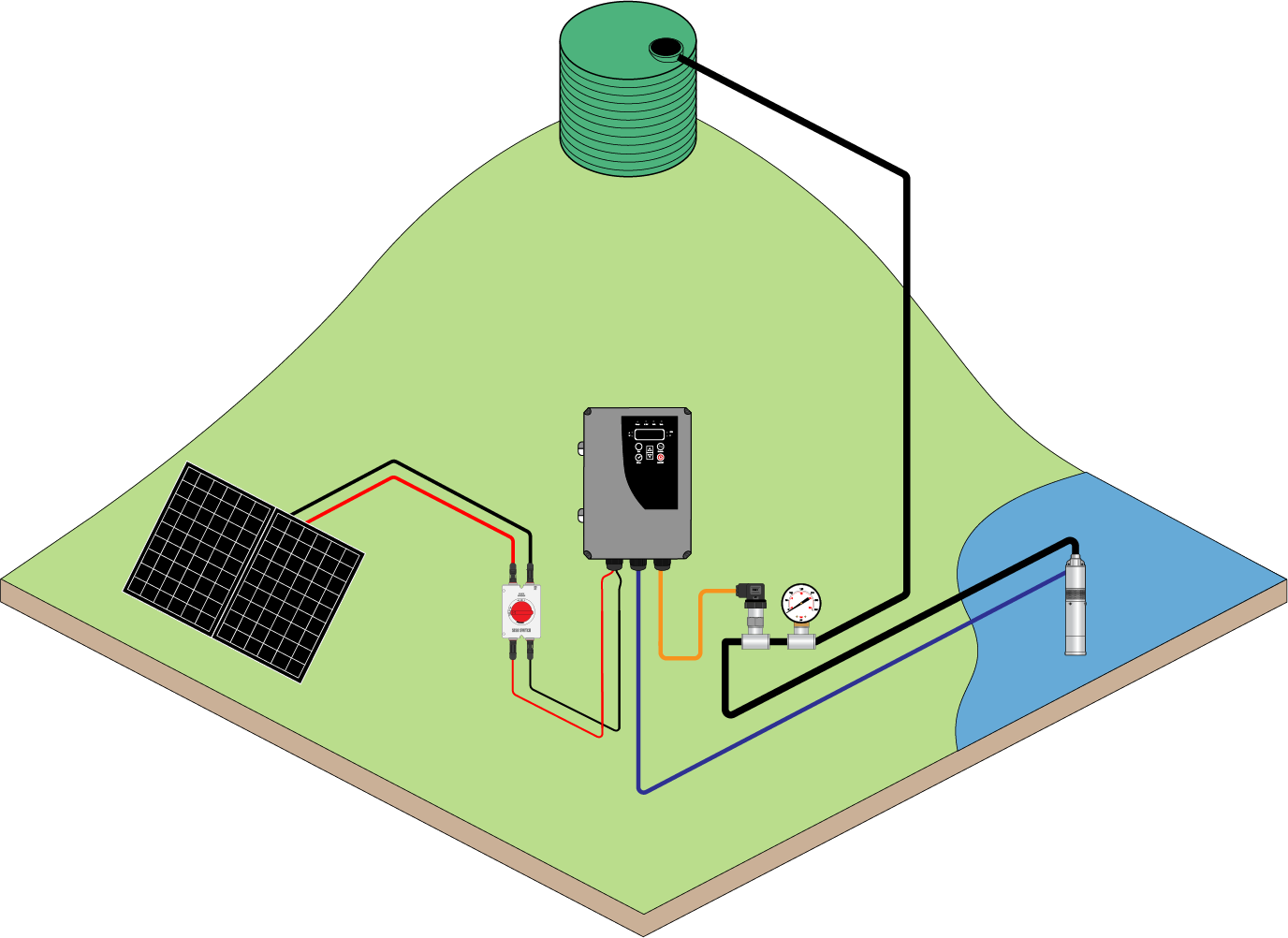

We designed this system to give you a low cost option that can replace a mains or petrol pump for gravity feed use cases.

The kit comes with  a pressure switch and a smart controller which allows automatic operation.

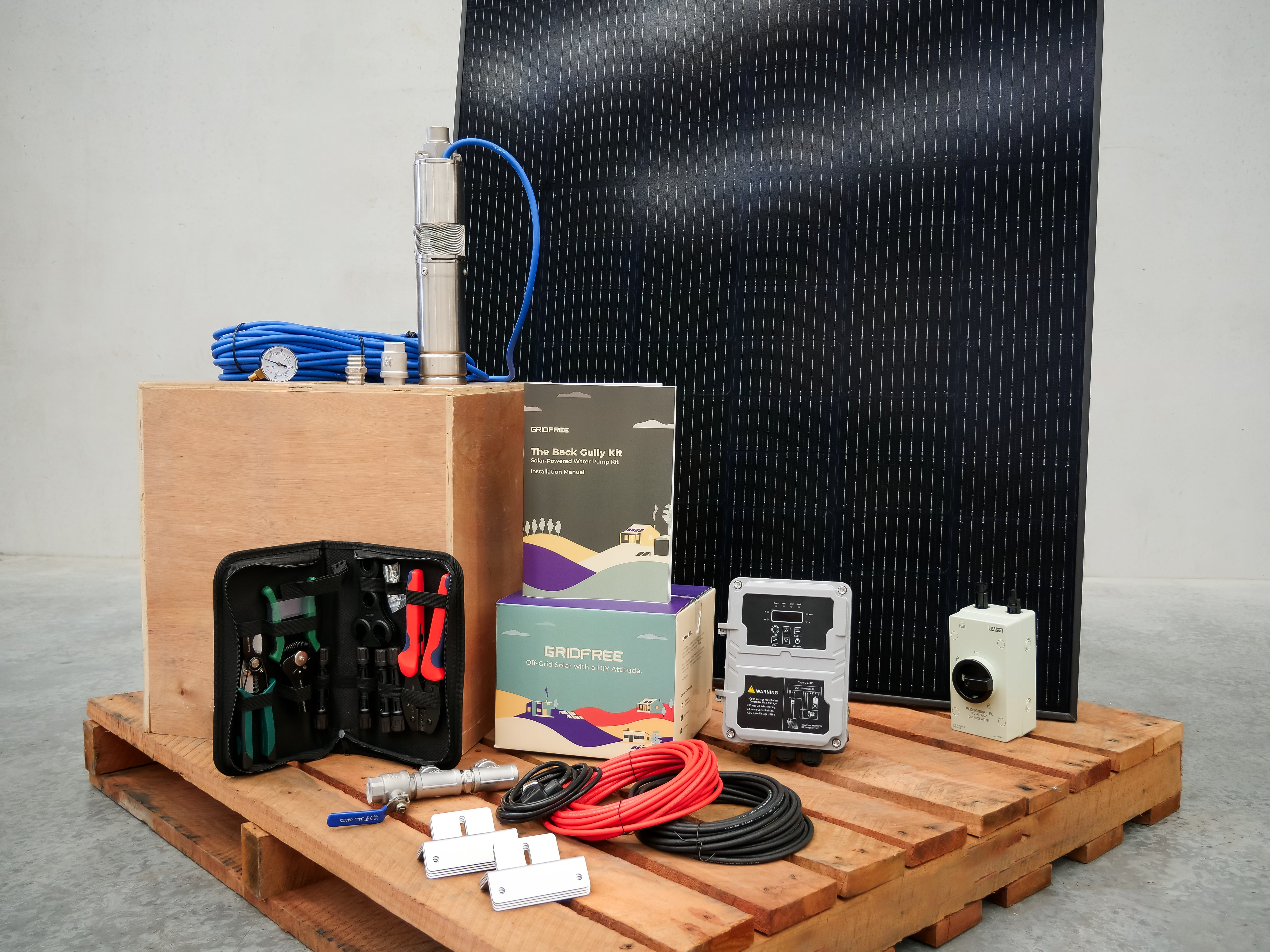

The Back Gully Solar Water Pumping Kit

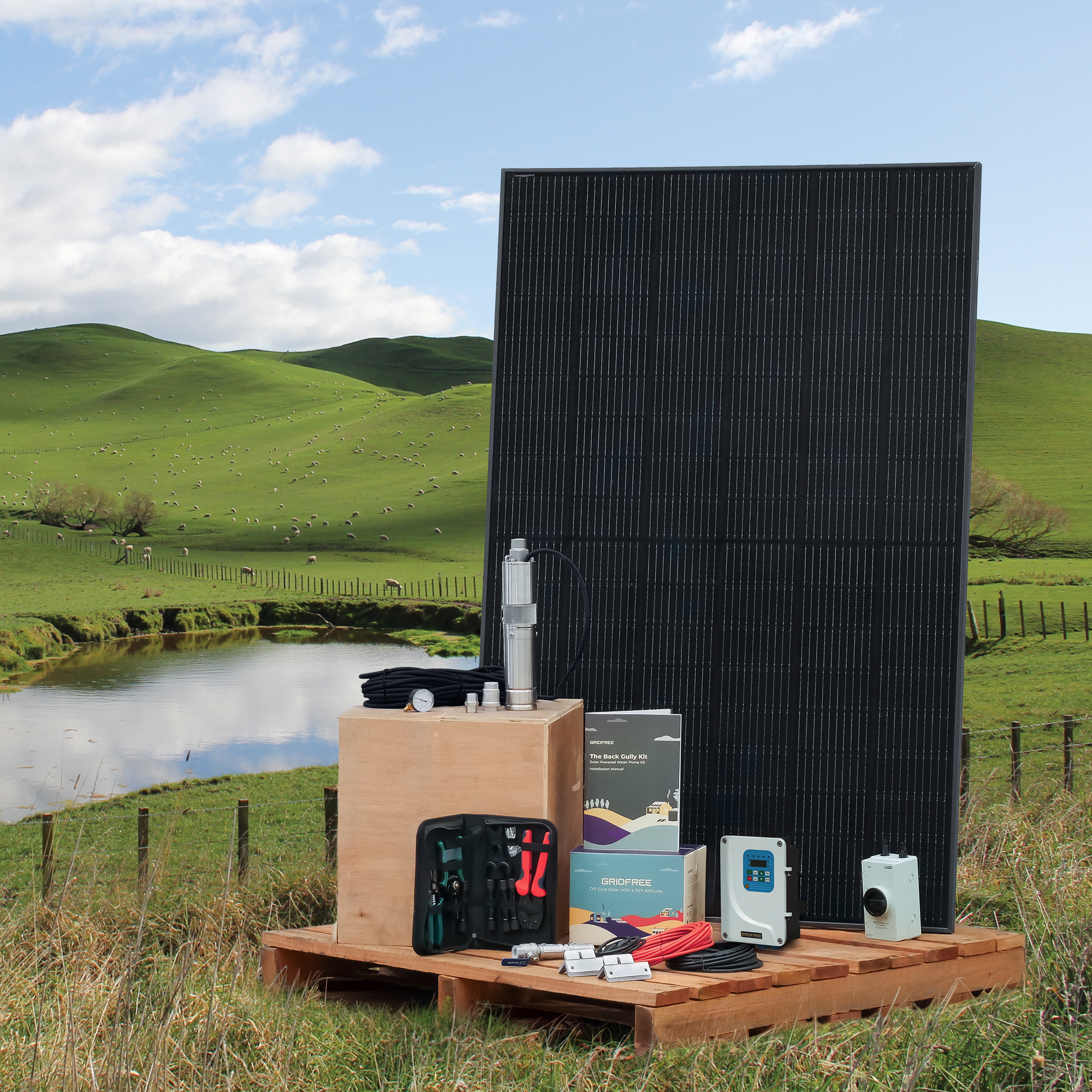

Includes everything you need to get up and running.

On top of the main components our packages include all the solar cables, solar mounts, pressure switch with fittings, DC breakers and isolators that you need for our gear.

We do not supply anything that is installation specific such as piping, conduit etc. So please get in touch if you had any questions about package contents.

Solar:

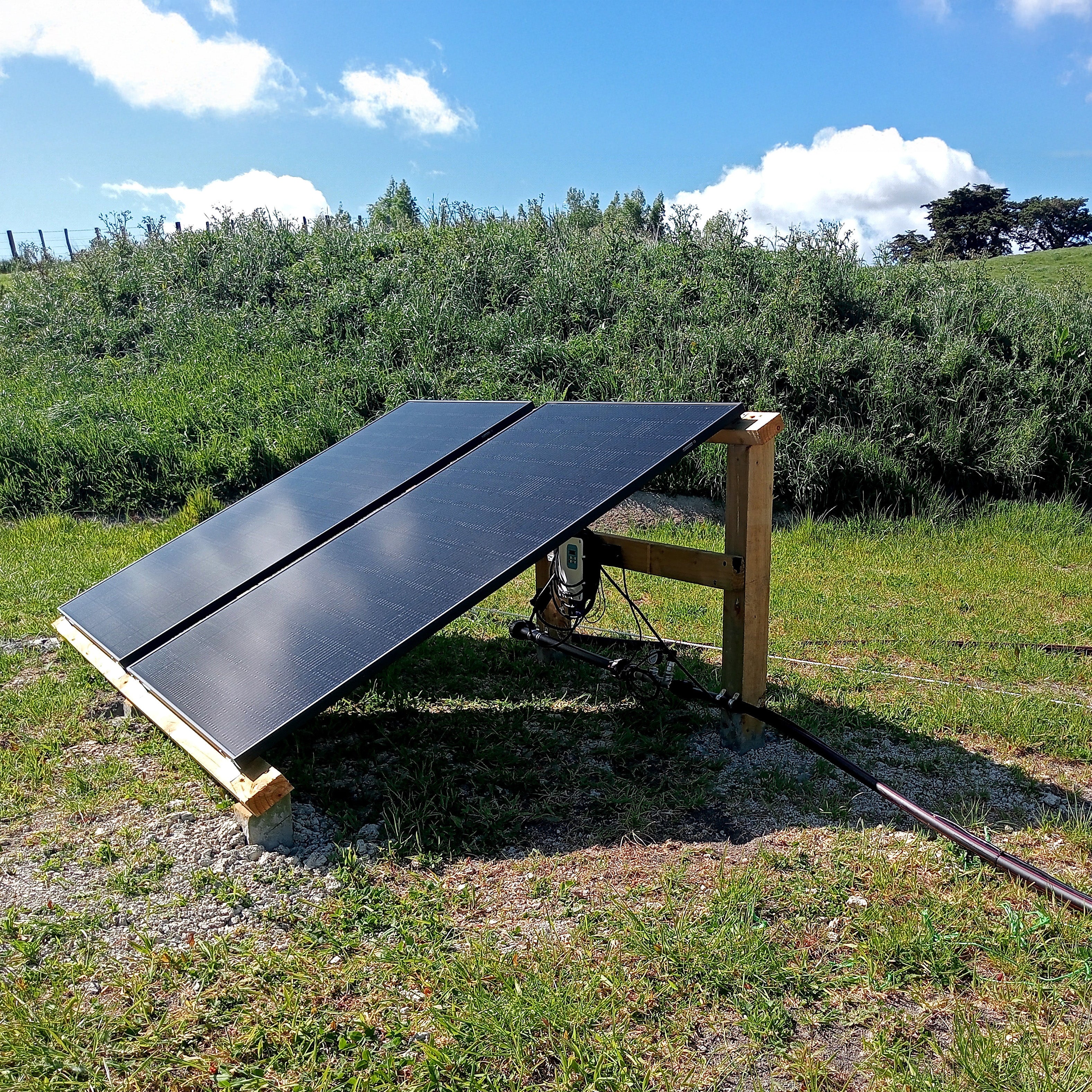

Solar Array: 800W (1600W When upgraded)

Pump & Controller:

Controller Output Voltage: 48V

Controller Max Power: 600W

Controller Max Frequency: 50Hz

Max Recommended Pressure head: 8 bar

Flow <4 bar(full power): >35 l/m

Flow <6 bar (full power): >25 l/m

Flow <8 bar (full power): >20 l/m

Back Gully Kit 2-Panels:

  • 2x Monocrystalline Solar Panels
  • 2x Z-Bracket mount sets

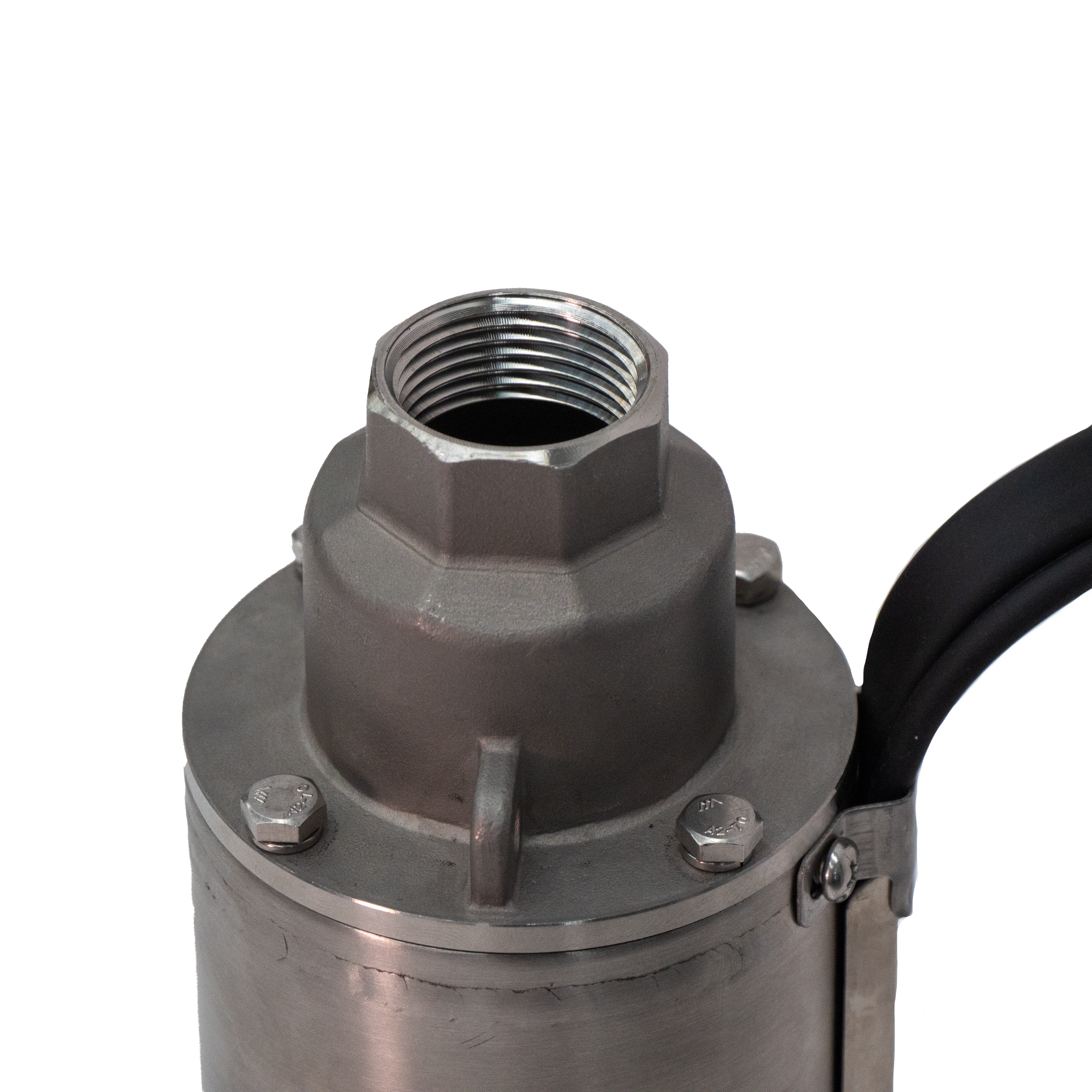

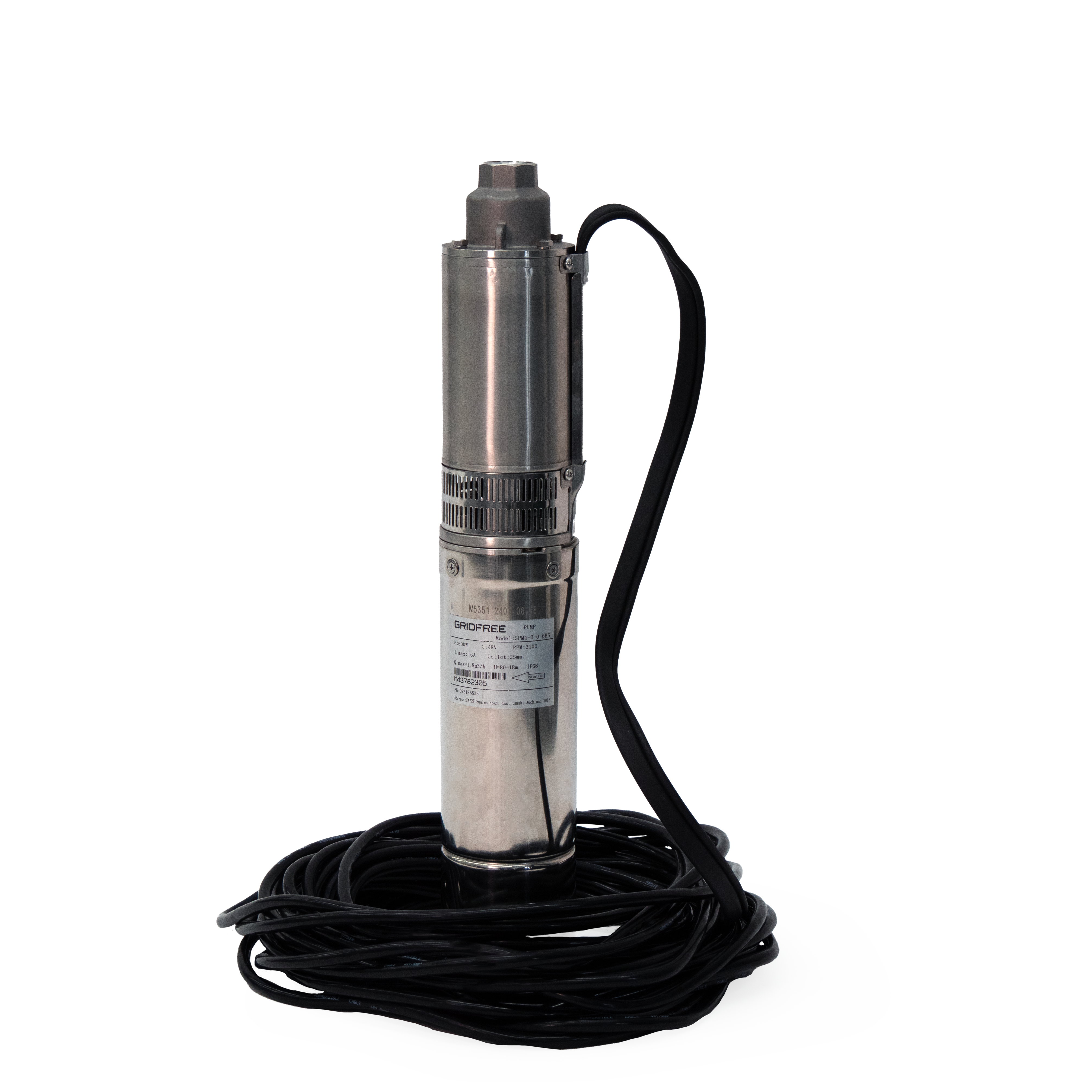

  • 1x 600W 48V Submersible Pump (20m Cable)

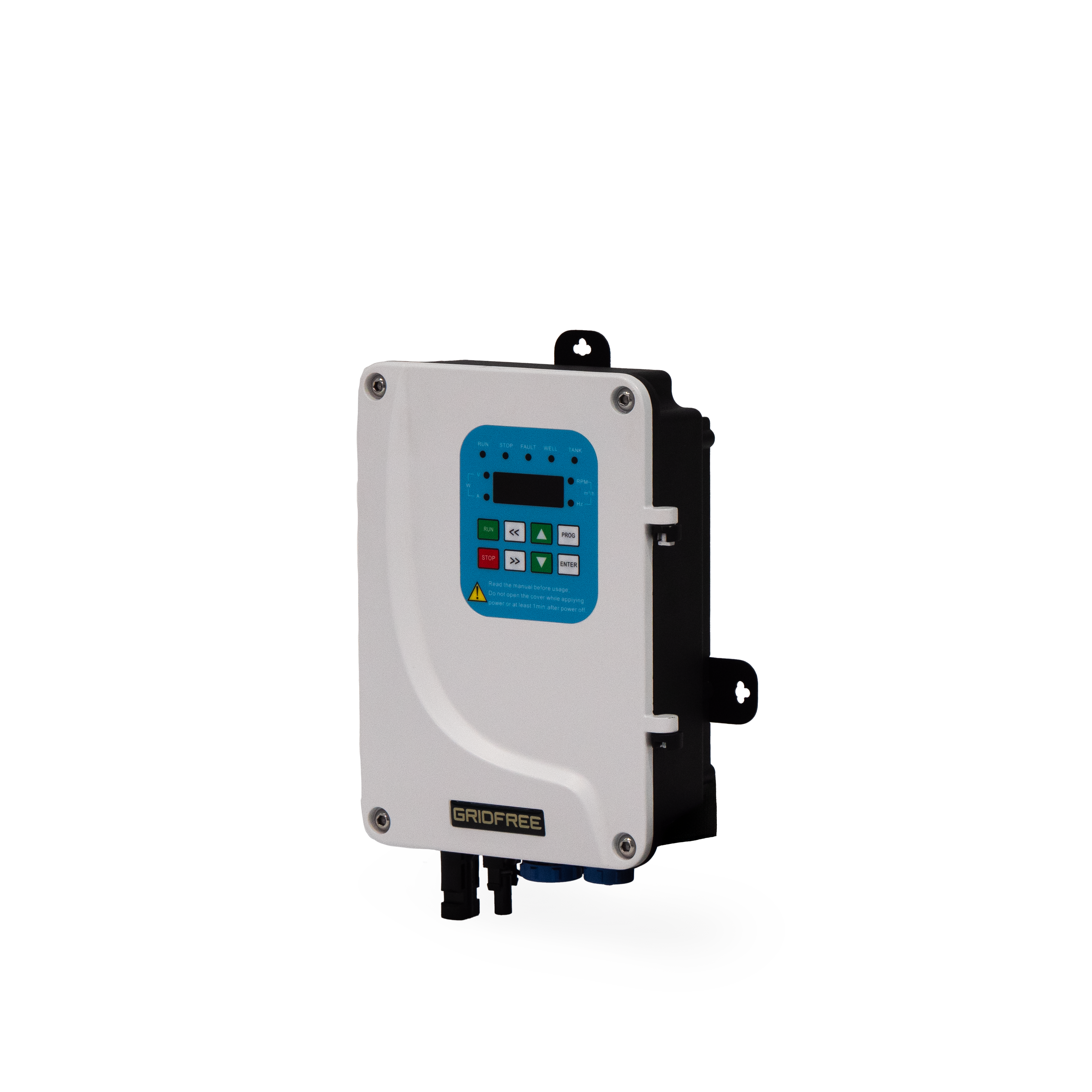

  • 1x 600W IP65 PV Pump Controller
  • 1x 10m 6mm2 PV cable set
  • 1x PV MCB enclosure
  • 1x PV MCB
  • 1x Pump MCB enclosure
  • 1x Pump MCB
  • 1x Pressure Switch (2m Cable)
  • 1x Pressure Gauge
  • 1x Fitting pack for gauge and switch
  • 1x Ball Valve Tap

Back Gully Kit 4-Panels:

  • 4x Monocrystalline Solar Panels
  • 4x Z-Bracket mount sets
  • 1x 600W 48V Submersible Pump (20m Cable)
  • 1x 600W IP65 PV Pump Controller
  • 1x 10m 6mm2 PV cable set
  • 1x PV MCB enclosure
  • 1x PV MCB
  • 1x Pump MCB enclosure
  • 1x Pump MCB
  • 1x Pressure Switch (2m Cable)
  • 1x Pressure Gauge
  • 1x Fitting pack for gauge and switch
  • 1x Ball Valve Tap

All mount upgrades replace the z-bracket mounts with the selected mount type.

The Back Gully Kit can have up to 4 panels on the controller. This is recommended for higher than 40 - 50m pressure head or for installs with suboptimal sunlight.

The base kit comes with 2 panels and this can be upgraded before purchase or added to after the purchase. For the latter please get in touch with the team for a custom quote.

Manual

Our manuals

We have custom made manuals for our solutions:

Our manuals are especially made for each solution. The Instructional Manual contains step-by-step instructions for setting up your system, while our User Manual contains a guide for ongoing operation and maintenance.

Instructional manualUser manual
