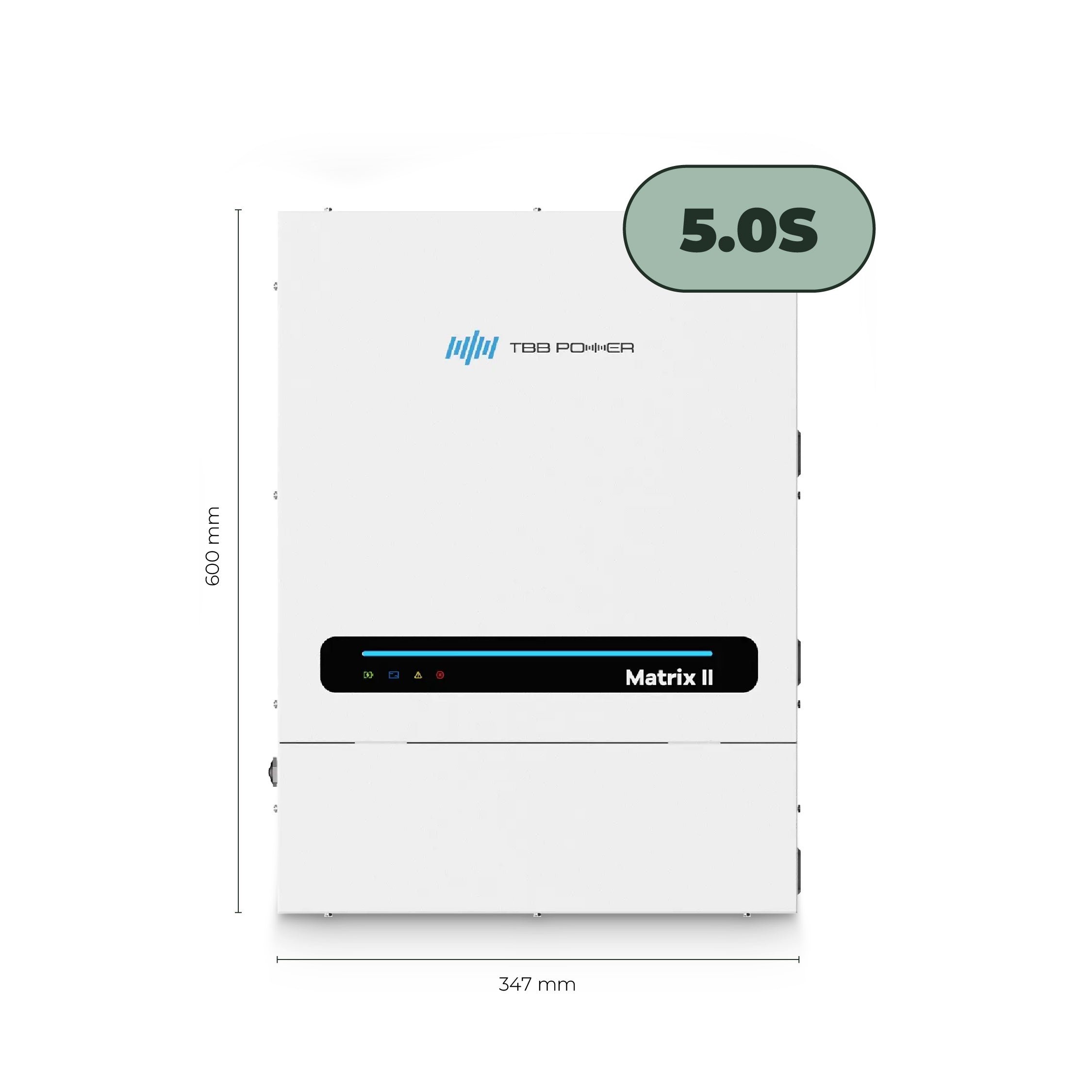

TBB Power - Matrix II 5.0S Hybrid Inverter

$4,500.00 NZD $4,500.00 NZD
Tax included.
In stock

Description

TBB Renewable Matrix II Solar Hybrid Inverter

The TBB Renewable Matrix II is a premium all-in-one, transformer-based solar hybrid inverter, designed to deliver exceptional performance for backup power, off-grid systems, and Energy Storage System (ESS) applications. With its high-efficiency inverter charger and advanced 600V MPPT solar charge controller, this inverter is engineered to meet the energy demands of both residential and commercial setups.

Key Features

Versatile Power Solutions

  • Available in 5kVA and 8kVA models for tailored energy requirements.
  • Features a programmable smart port for flexible use as a generator connection or secondary AC output.

Smart Energy Management

  • Optimises energy self-consumption for greater independence.
  • Perfect for retrofitting existing PV systems or enhancing energy usage efficiency.
  • Reduces energy bills with peak shaving and time-of-use strategies.

Seamless Integration

  • Fully compatible with the TBB Power/TBB Solar range of lithium batteries (ES100 II), ensuring smooth integration and reliable performance.

Why Choose the TBB Renewable Matrix II?

  • Combines the durability of a transformer-based design with modern energy efficiency.
  • Offers flexibility for a wide range of applications, from backup power to grid-tied systems.
  • Provides advanced energy management features to optimize costs and enhance system performance.

The TBB Renewable Matrix II is the ultimate solution for those seeking reliable, efficient, and flexible energy management for off-grid and hybrid solar systems.

GridFree Qcard Kits Need finance?

Product Topology: Transformer Based

AC Input Range: 175~265VAC

AC Input Current (Transfer Switch): 50A

INVERTER

Nominal Battery Voltage / Input Voltage: 48V / 42~68V

AC Output Voltage: 220/230/240VAC

Harmonic Distortion: <2%

Max Output Power (30min) at 25°C: 5000W

Continuous Output Power at 25°C: 4000W

Peak Power / Surge: 15000W / 300%

Efficiency (Peak): 96%

Waveform: Pure Sine Wave

AC Input Voltage: 230VAC

Max AC Charge Current: 70A

Transfer Time: 0ms (<15ms in Weak AC source mode)

Solar Charge Controller

Max Output Current: 120A

Maximum PV Open Circuit Voltage: 600A

PV/MPPT Operating Voltage Range: 120-525V

Maximum Charge Power: 7000W @ 57.6V, total 5000W @ 57.6V per tracker

Number of MPPT Trackers: 2

Maximum PV Input/Short Circuit Current per Tracker: 18A+18A

Allowable Maximum PV Panel Power per Tracker: 8000W + 8000W

Charge Voltage: 57.6V 'Absorption' / 55.2V 'Float'

Maximum Efficiency / MPPT Efficiency: 97% / 99.9%

General Data

Protection Degree: IP21

Max Output Current: 50A

Remote On-Off / Programmable Relay: Yes / 2x (30VD/3A or 250VAC/3A)

Mechanical Data

Battery Connection / AC Connection: Bolts M8*2 (1+1) / Screw Terminals 10mm²

Dimensions: 600 x 347 x 244 mm

Net Weight: 39 kg

Altitude: 3500 m

Operating Temperature: -40°C to 65°C (Without Condensation)

Warranty

Duration: 3 Years + 2 years with TBB NOVA Cloud connection
