The Totara PowerPod | Grid-Tied Solar System

Regular price $21,700 Sale price $21,700
Tax included.
In stock

Gear + Install through GridFree is now available:
Standard installation is (including GST) on top of the gear price.

Price varies due to site & project so please talk to us to get an accurate solar package & installation quote.

Please note:
This system can be fully customized and expanded to suit your power needs.

Array Size
Array Size
Battery capacity
Battery capacity
Inverter size
Inverter size
Generator compatibility
Generator compatibility
A complete solar and battery solution for Kiwi homes

The Totara PowerPod | Grid-Tied Solar System

A complete residential solar system that helps you generate more of your own power, reduce reliance on the grid, and keep essential appliances running during a power outage.

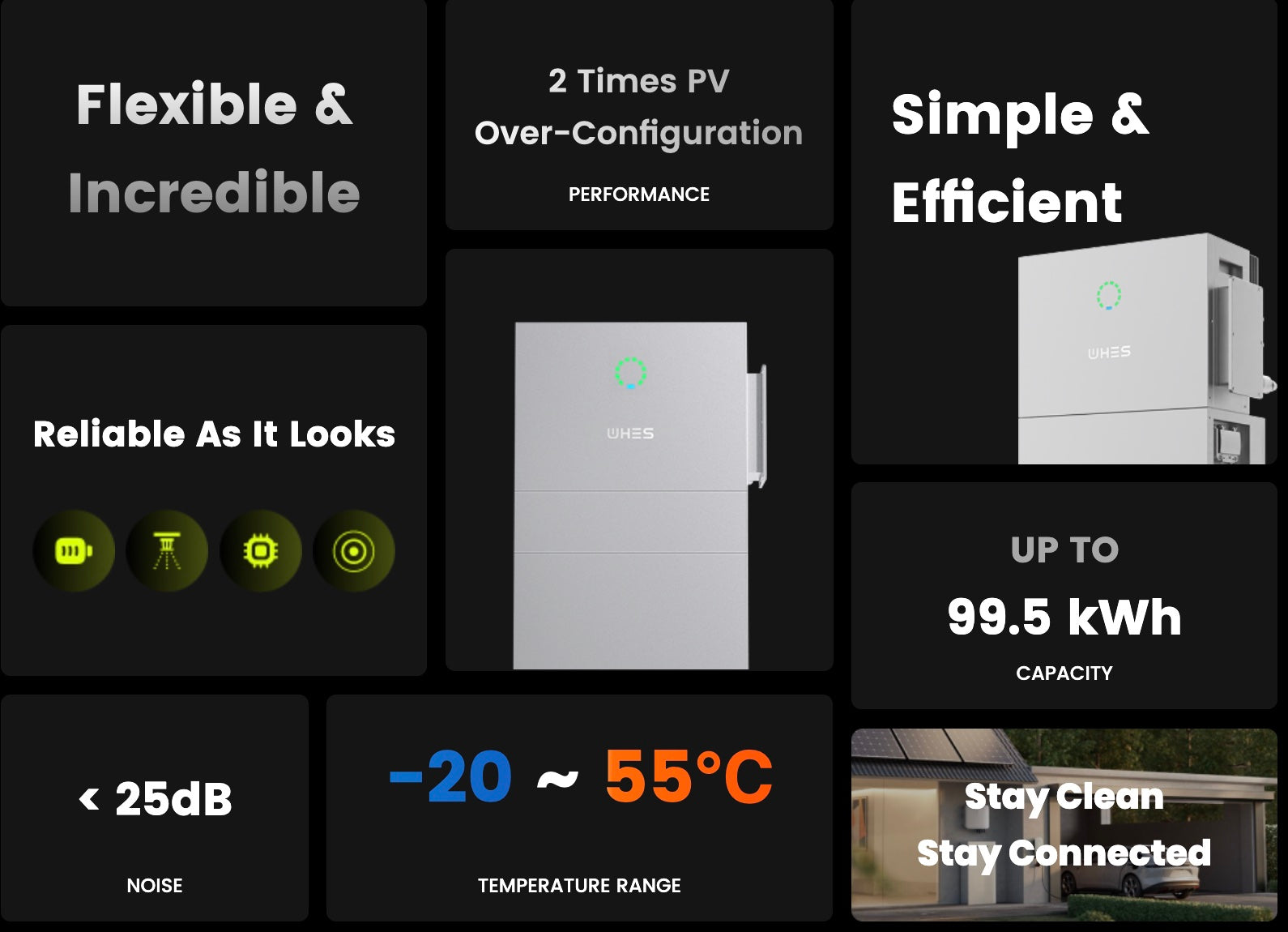

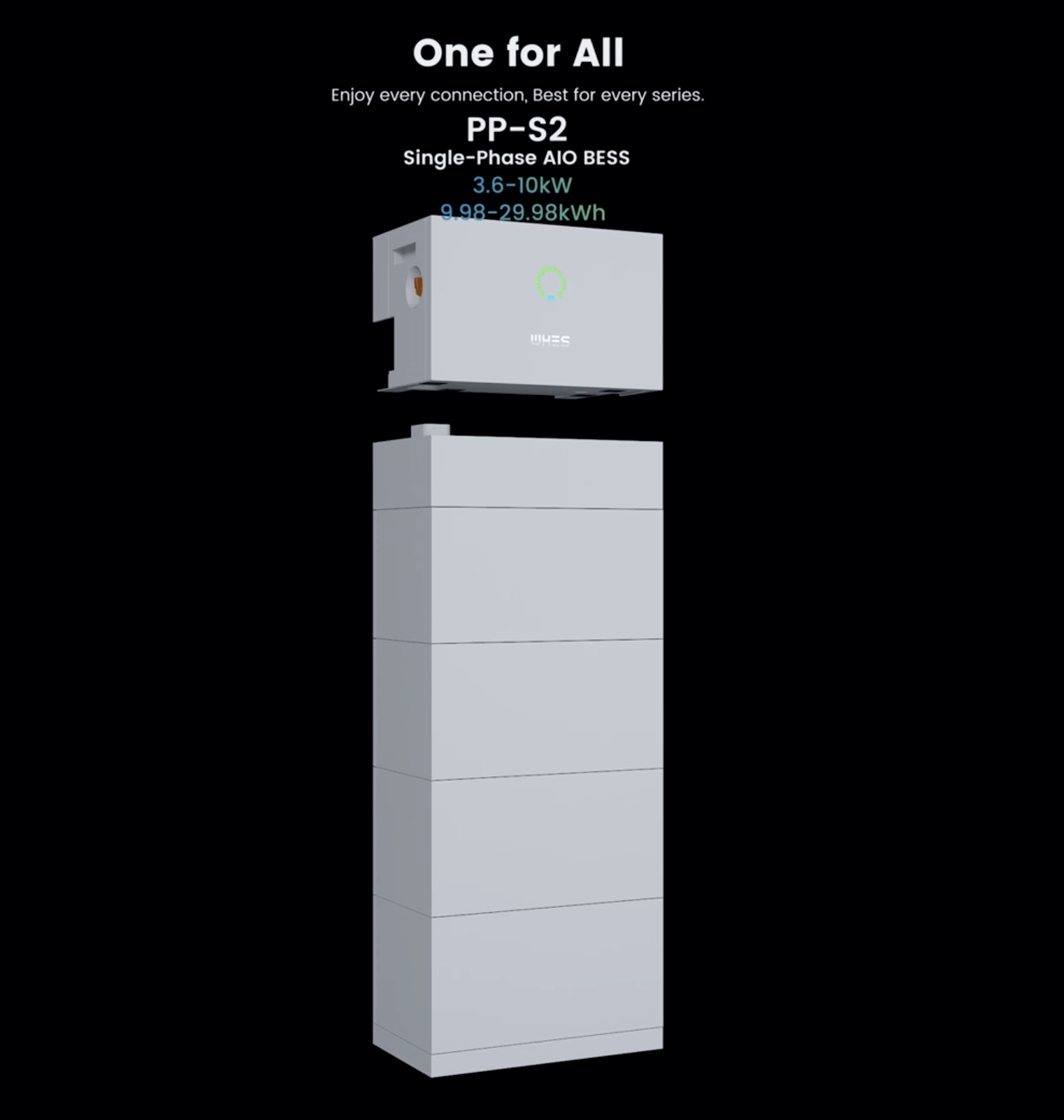

At the heart of the system is the WHES PowerPod IP65, an all-in-one solar and battery solution designed to simplify installation and retrofitting.

The system uses a stackable inverter and lithium batteries.

The batteries can use up to 90% of their stored energy, giving you more usable power while maintaining reliable, long-term performance.

Flexibility to use your stored solar energy when it matters most:

- Keep the essentials running during a power outage.

- Store solar energy for later, rather than sending excess power back to the grid for a low return.

- Shift your energy use to help reduce the amount you spend on peak electricity.

- Customisable battery storage to suit your power needs.

Built for the future.

The ideal residential solar system for Kiwi homes that want a balance of solar power, battery storage and energy independence.

The Totara PowerPod | Grid-Tied Solar System

Powered By WHES

The Solar Reserve Series is built by serious battery storage specialists.

WHES specialises in battery energy storage solutions, rather than simply adding batteries to an existing solar product range. With more than 16 years of energy storage R&D, 800+ large scale projects worldwide, and solutions deployed across more than 50 countries, WHES brings extensive experience in designing and developing energy storage systems.

Their technology gives the Solar Reserve Series a strong foundation in specialist battery storage technology, featuring:

  • Smart energy management through the WHES app, giving you real-time visibility of your solar generation and household energy consumption, wherever you are.
  • Flexible and expandable storage so you can start with the capacity you need and add more battery modules as your energy needs grow.
  • Four layers of protection designed to protect the battery from the cell level through to the overall system structure.
  • High-quality battery cells tested to the rigorous UL 9540A standard for battery energy storage systems.
  • Built-in fire suppression in each battery module, providing an additional layer of protection in the event of a thermal event.
The Totara PowerPod | Grid-Tied Solar System

Specs & Additional Info.

Includes everything you need to get up and running.

Our packages include all the main solar hardware you need, along with supporting manuals and guides for both the installer and the end customer.


10kW Technical Specifications

Inverter Output: 10kW

Maximum PV Input Power: 20,000W

Maximum PV Input Voltage: 1,000V

Rated PV Input Voltage: 620V

MPPT Voltage Range: 180–980V

Number of MPPT Trackers: 2

Solar Strings per MPPT Tracker: 1/2

Rated Grid Output Power: 10,000W

Rated Grid Output Current: 16A

Battery Type: Lithium Iron Phosphate (LiFePO4)

Battery Options: 9.98kWh, 14.97kWh, 19.96kWh, 24.95kWh or 29.94kWh

Battery Voltage Range: 160–700V

Maximum Charging/Discharging Current: 30A / 30A

Rated Backup Output Power: 10,000W

Peak Backup Output: 160% of rated power for 10 seconds

Backup Switching Time: Less than 10ms

Rated Voltage: 3/N/PE, 220/380V, 230/400V or 240/415V

Rated Frequency: 50/60Hz

Maximum PV Efficiency: 98%

Ingress Protection: IP65

Noise Emission: Less than 25dB

Operating Temperature: -20°C to 55°C

13kW Technical Specifications

Inverter Output: 13kW

Maximum PV Input Power: 20,000W

Maximum PV Input Voltage: 1,000V

Rated PV Input Voltage: 620V

MPPT Voltage Range: 180–980V

Number of MPPT Trackers: 2

Solar Strings per MPPT Tracker: 1/2

Rated Grid Output Power: 13,000W

Rated Grid Output Current: 20.8A

Battery Type: Lithium Iron Phosphate (LiFePO4)

Battery Options: 9.98kWh, 14.97kWh, 19.96kWh, 24.95kWh or 29.94kWh

Battery Voltage Range: 160–700V

Maximum Charging/Discharging Current: 30A / 30A

Rated Backup Output Power: 13,000W

Peak Backup Output: 123% of rated power for 10 seconds

Backup Switching Time: Less than 10ms

Rated Voltage: 3/N/PE, 220/380V, 230/400V or 240/415V

Rated Frequency: 50/60Hz

Maximum PV Efficiency: 98%

Ingress Protection: IP65

Noise Emission: Less than 25dB

Operating Temperature: -20°C to 55°C

How Residential Solar Works


Solar Panels

Your solar panels geneate energy from sunlight.


Inverter & Battery System

The inverter uses this energy to power your household loads.
Excess power is stored in the batteries for later use.


The Grid

When your batteries are full, excess power is sent back to the grid for credit. When you don't produce enough energy, you use power from the grid.

Let's Get Started

Find the right solution

We'll guide you to the right solution and help you understand the costs with our transparent pricing

Remote or in-person site visit

So we can confirm the scope of the project and make sure your ideal solution will fit.

Confirm and schedule

Once we have the green light from our technical team, we can proceed with the order and get the install scheduled.

Support all the way

We're there for you and the installer during installation, commissioning, and beyond.
