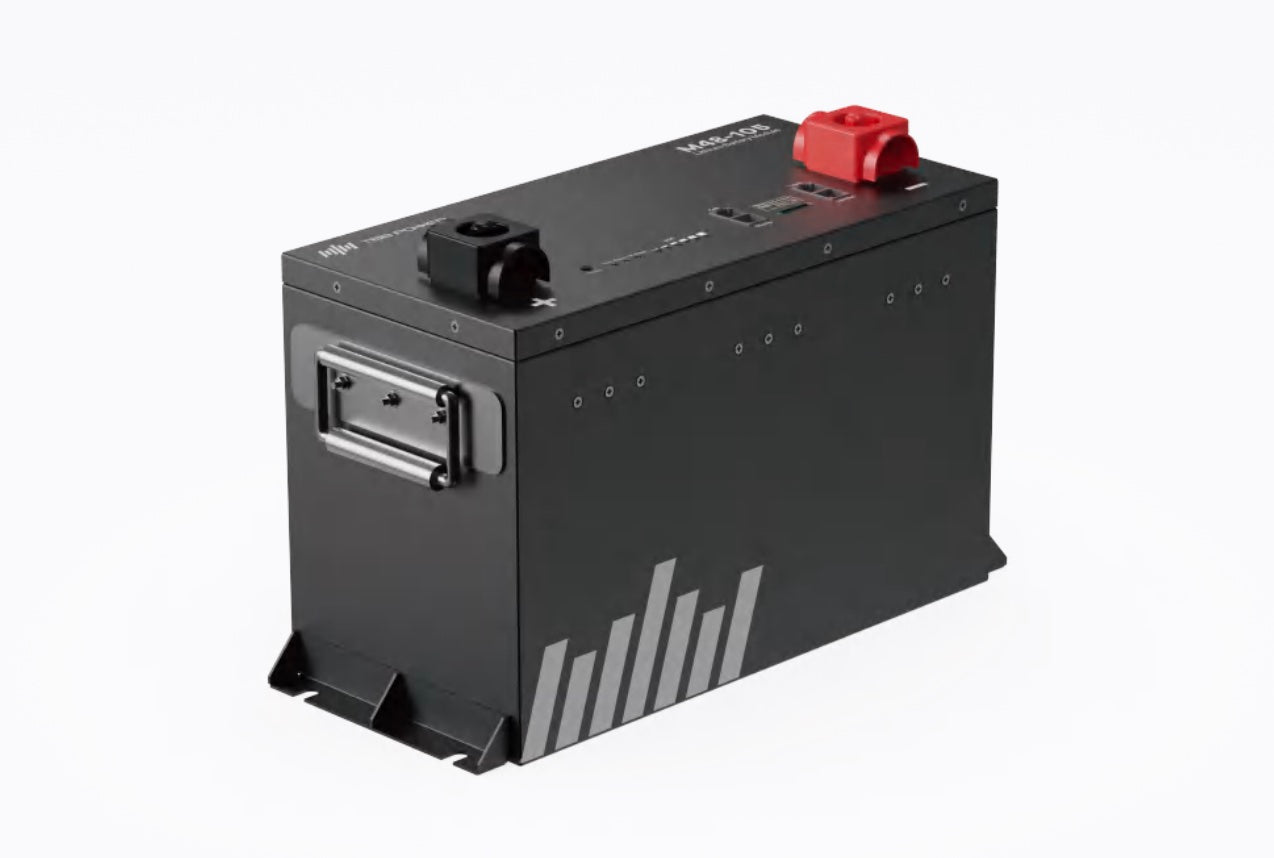

TBB Mobile - M48V 105AH 5.04kWh LifePO4 Battery - Motorhomes / boats / RV

The TBB M48-105 is a high-performance 48V lithium battery designed for motorhomes, boats, specialist vehicles and demanding mobile-power systems.

Providing 5.04kWh of energy storage in a compact reinforced enclosure, the M48-105 is an ideal battery partner for the TBB PG4.0S all-in-one inverter charger. Its high discharge capability provides the power needed to operate air conditioners, kitchen appliances, compressors, power tools and other demanding equipment.

Safe and Long-Lasting LiFePO4 Technology

The M48-105 uses lithium iron phosphate battery cells, selected for their excellent thermal stability, long cycle life and dependable performance.

An intelligent battery-management system continuously monitors the battery and provides protection against:

• Overcharging and over-discharging

• Excessive charging and discharging current

• High and low temperatures

• Short circuits

• Individual cell-voltage imbalance

The BMS also calculates the battery’s state of charge, records cycle use and balances the individual cells to support consistent long-term performance.

Key Features

• 48V 105Ah LiFePO4 battery

• 5.04kWh total energy storage

• 100A continuous discharge current

• Up to 150A maximum discharge current

• Built-in intelligent battery-management system

• Integrated state-of-charge calculation

• Internal cell balancing

• Built-in low-temperature heating

• CAN and RS485 system communication

• Compatible with the optional TBB VS28 display

• Supports remote battery switching

• More than 3,000 cycles at 100% depth of discharge

• Up to eight batteries can be connected in parallel

• CE, UN38.3, UKCA and E-Mark certified

Expandable Energy Storage

Start with one 5.04kWh battery and expand the system as your energy requirements grow.

Up to eight matching M48-105 batteries can be connected in parallel, providing a maximum combined storage capacity of:

• 1 battery: 5.04kWh

• 2 batteries: 10.08kWh

• 4 batteries: 20.16kWh

• 8 batteries: 40.32kWh

Parallel batteries must be the same model and should have matching age, usage history, capacity and state of charge.

Designed for the TBB PG4.0S

The M48-105 is an excellent match for the TBB PG4.0S 4000W all-in-one inverter charger.

Communication between the battery and TBB power system allows charging, discharging and protection functions to work together intelligently. This improves system safety while providing more accurate battery state-of-charge information.

Cold-Weather Performance

The built-in heating system helps protect the battery during cold-weather operation. When charging power is available, the battery can automatically warm its cells before allowing charging at low temperatures.

This makes the M48-105 well suited to mobile applications that may operate in colder parts of New Zealand.

Recommended Applications

• Motorhomes and campervans

• Caravans

• Boats and marine power systems

• Service and utility vehicles

• Mobile workshops

• Emergency and specialist vehicles

• Mobile catering vehicles

• Other high-demand 48V power systems

Installation Note

The M48-105 is designed exclusively for 48V systems. Batteries may be connected in parallel but must never be connected in series.

Installation must be completed in a dry, well-ventilated location using correctly sized cables, suitable over-current protection and compatible charging equipment. Installation should be undertaken by a suitably qualified professional.
