Universal L-Feet Roof Mount - 4 Panel

Universal Roof Mount for Solar Panels - Designed to fit 4 x Solar panels

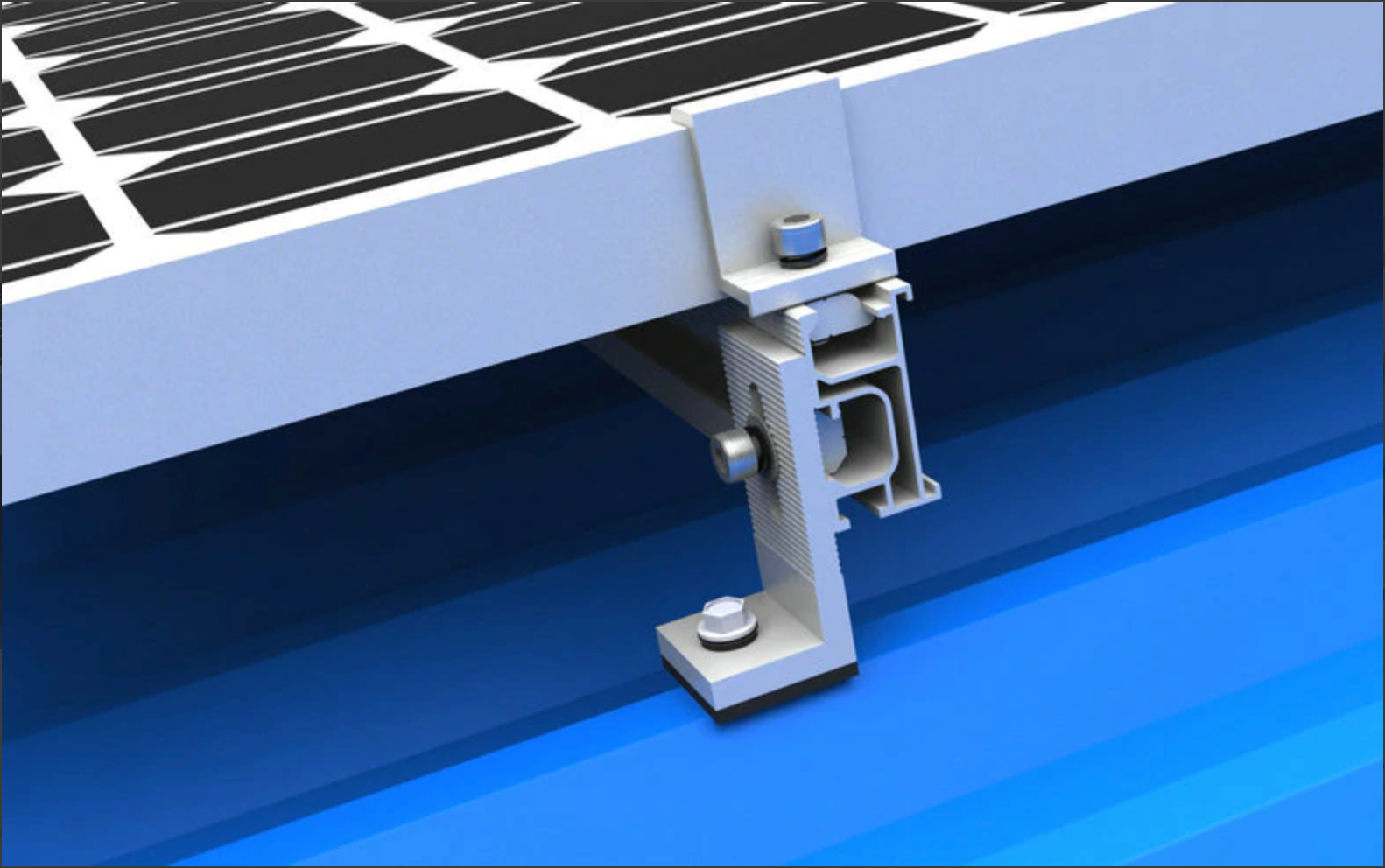

Our updated Universal Roof Mount now uses the KSENG aluminium L-Feet mounting system, engineered for secure, long-term roof attachment under New Zealand conditions.

This is a fixed-angle roof mount system designed for standard pitched metal roofs and compatible with all GridFree off-grid solar systems using 4 or more panels.

Key Features

Engineered Aluminium Construction
Manufactured from high-strength anodised AL6005-T5 aluminium with SUS304 stainless steel fasteners for corrosion resistance.

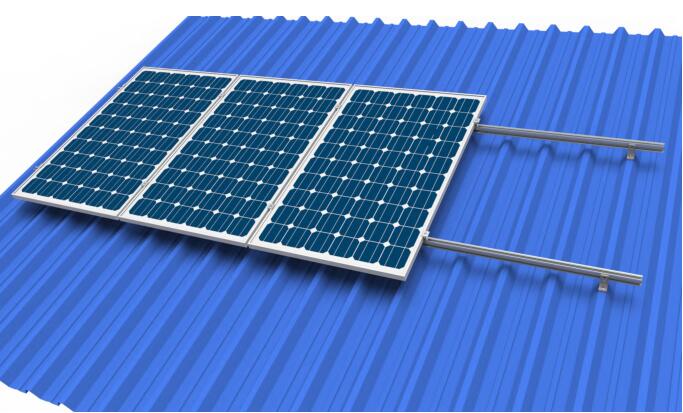

Designed for Metal & Tin Roofs
Compatible with corrugated iron and trapezoidal steel roofing (appropriate roof screws required).

Fixed-Angle Simplicity
Panels sit flush to roof pitch — simple, durable, and structurally efficient.

Wind-Resistant Structural Design
Engineered to meet international structural loading standards (AS/NZS 1170 compliant design principles).

Cost-Effective Installation
Straightforward installation process for builders, roofers, and competent DIY installers.

What Does “4 x Solar Panel Kit” Mean?

This kit includes the required mounting hardware to securely install four individual framed solar panels in one roof-mounted array section.

It includes:

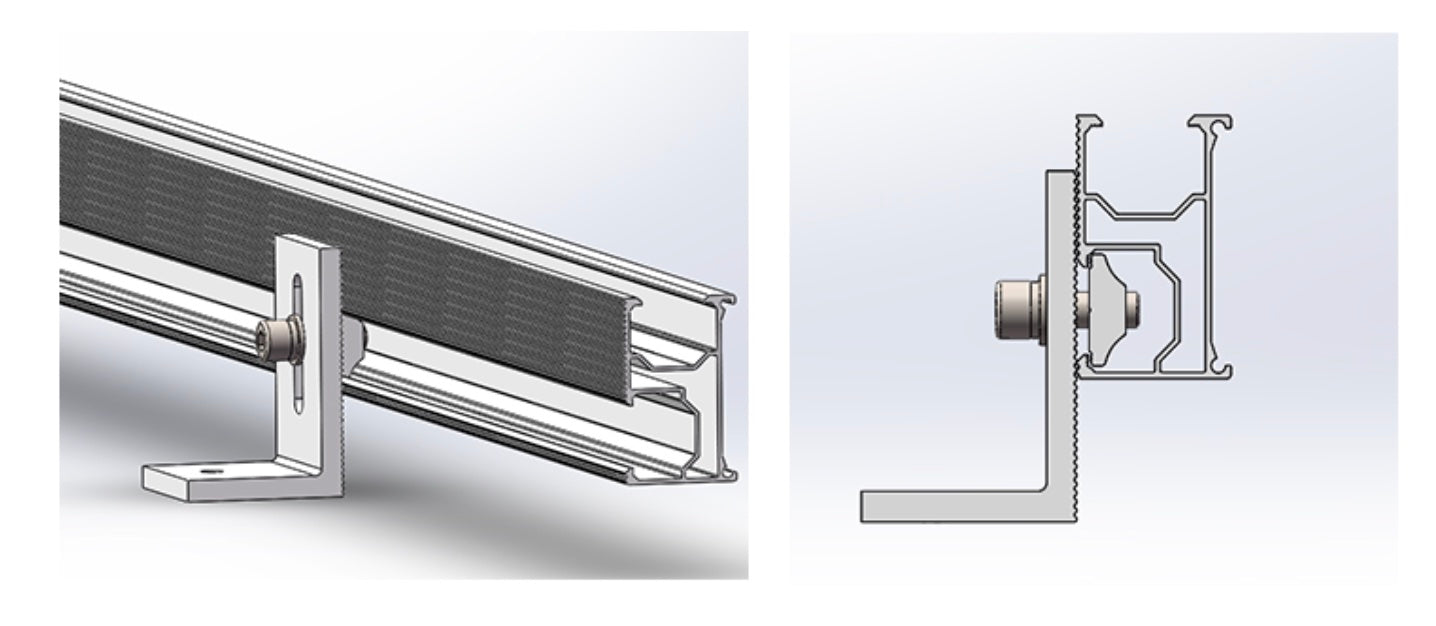

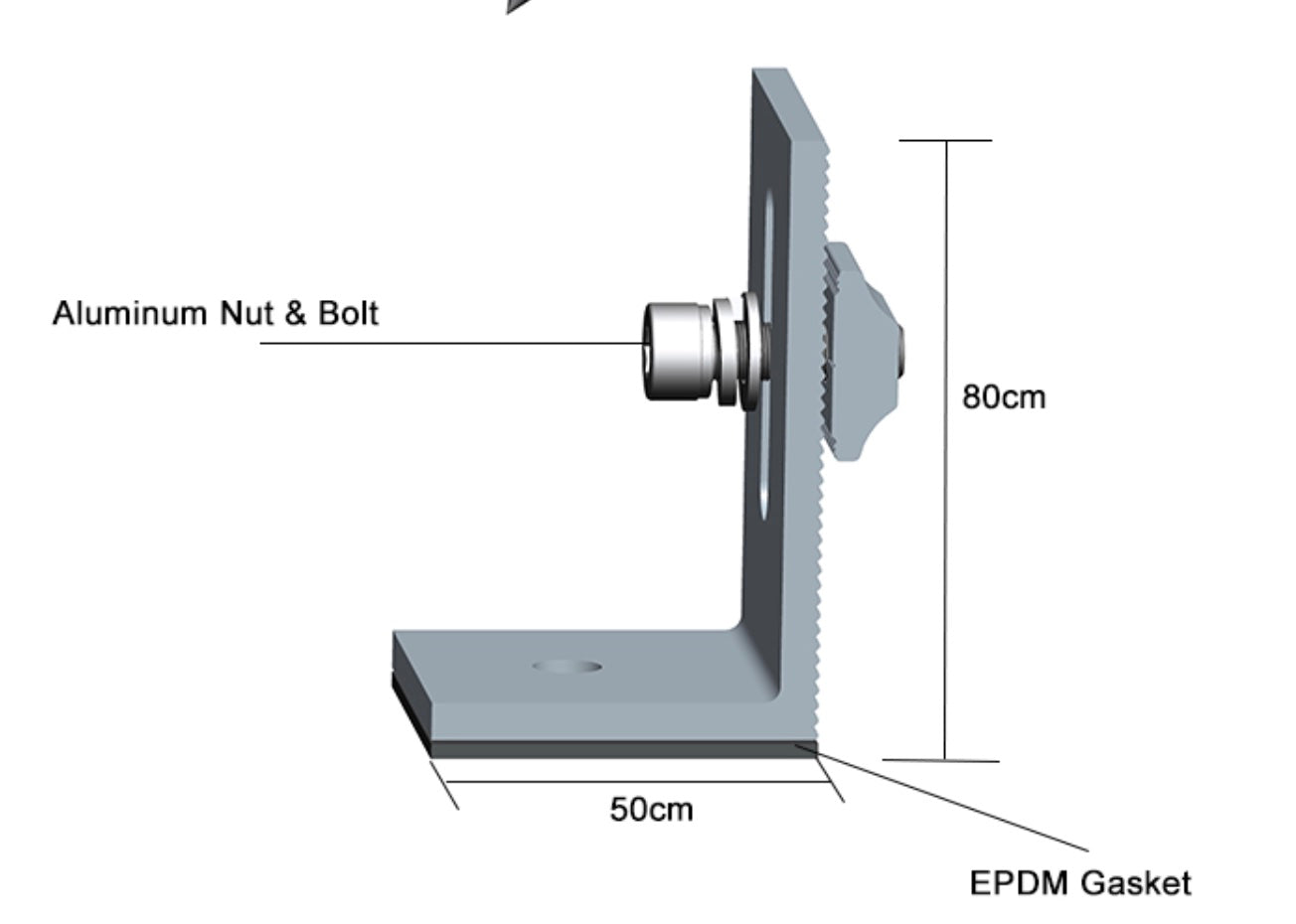

• Aluminium L-Feet brackets

• Aluminium mounting rails (sized for 4 panels)

• Mid clamps

• End clamps

• Rail joiners (where required)

• Stainless steel bolts and fasteners

This configuration is dimensioned specifically for a 4-panel array.

Expanding Beyond 4 Panels

If installing 8 panels or more in a continuous row, additional components will be required, such as:

• Extra mid clamps

• Additional rail joiners / rail splices

• Longer or extra mounting rails

• Additional L-Feet brackets

Longer arrays increase wind loading and rail span requirements.
Please specify your intended panel layout when ordering so we can supply the correct hardware set.

Technical Specifications

• Material: AL6005-T5 Black anodised aluminium

• Fasteners: SUS304 stainless steel

• Mount Type: Fixed-angle (flush to roof pitch)

• Application: Corrugated iron / tin / steel roofing / trapezoidal roofing/ T-Rib Roofing

• Designed service life: 25 years

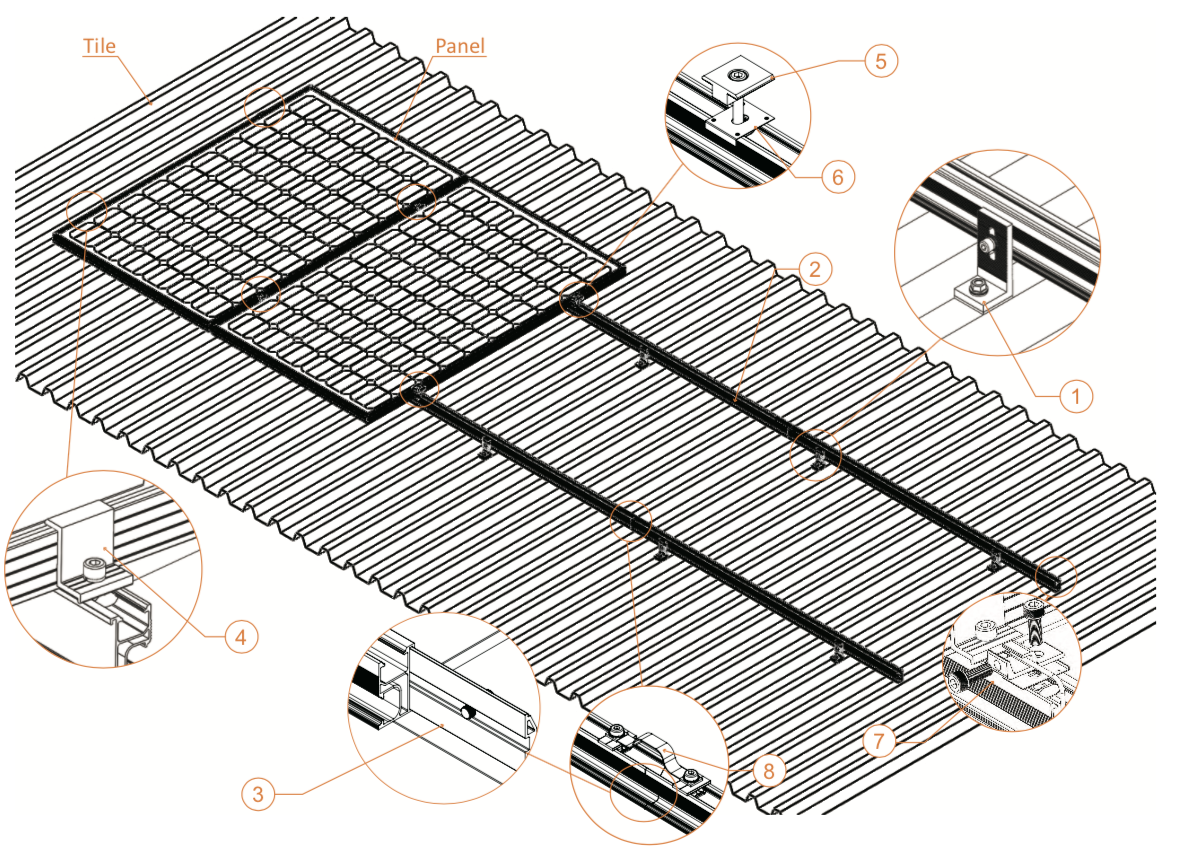

Installation Guide

How to Install the Fixed L-FEET Solar Panel Roof Mount
