SRNE 100A 500VDC MPPT Charge Controller

$1,399.00 NZD $1,399.00 NZD
Tax included.
In stock

Description

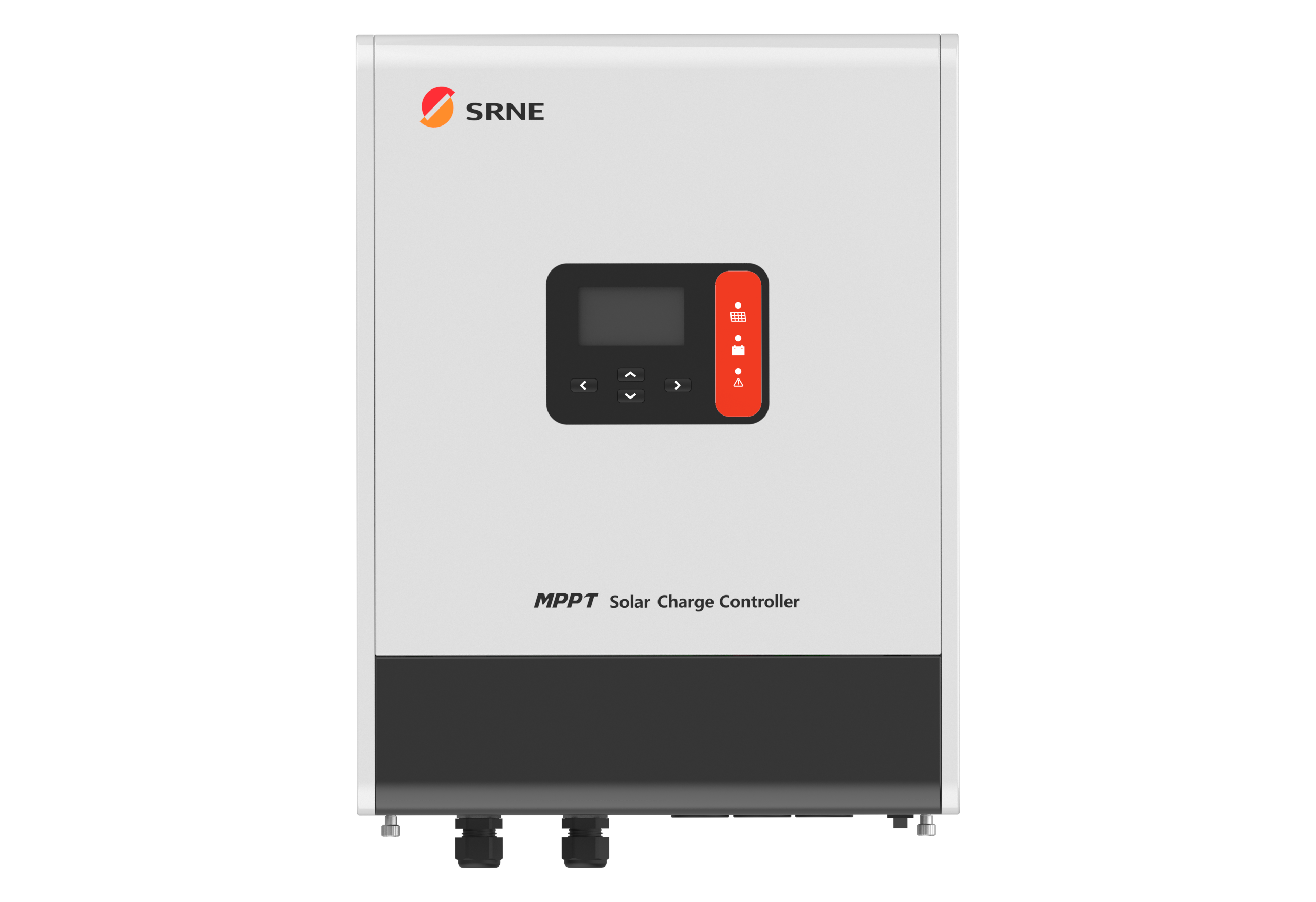

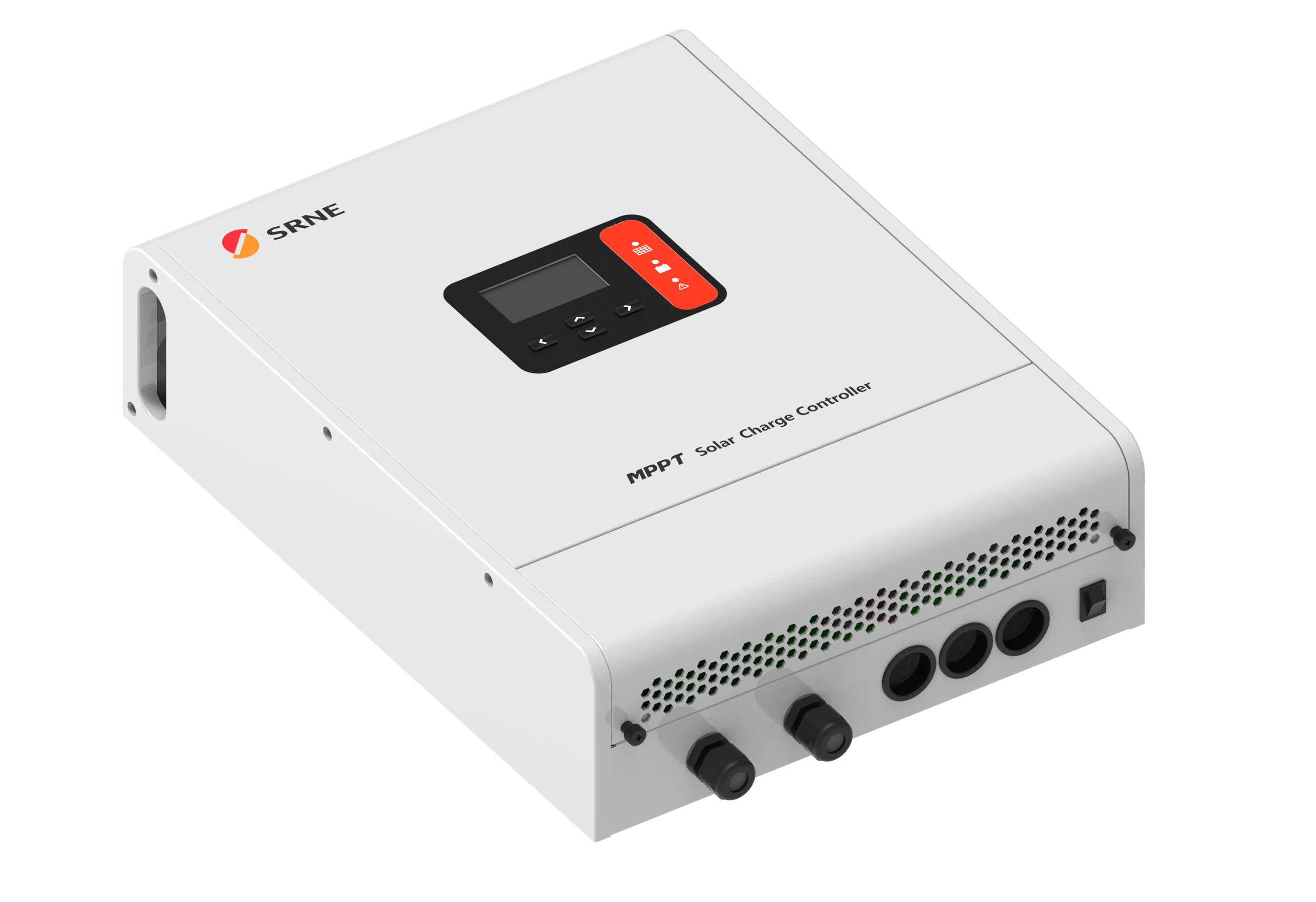

SRNE Solar 100A MPPT Charge controller

Model Number: MF48100N50

Specifications:

  • PV INPUT Max.Voltage of Open Circuit: 500Vdc + 500Vdc
  • Start-up Charging voltage: 120Vdc
  • Max.PV Input Current: 20A+20A
  • Max.PV Input Power: 3000W+3000W
  • Battery Type: Lead-acid / Li-ion / User Defined / SLD / FLD / GEL
  • Battery Voltage range: 36~64Vdc
  • Max.MPPT Charging Current: 100A Max.
  • Charging Current per MPPT: 50A
  • MPPT tracking efficiency: 99%
  • Max. Charging Conversion Efficiency: 96%
  • Programmable Relays: NO,C,NC - Current limit: DC:10A,30VDC/AC:10A,250VAC
  • Cooling Method: Intelligent fan
  • GENERAL Weight: 11kG
  • Dimension: 440*340*124mm
  • Protection Degree: IP21
  • Operating Temperature Range: -20°C~65°C



GridFree Qcard Kits Need finance?

PV INPUT Max.Voltage of Open Circuit: 500Vdc + 500Vdc
Start-up Charging voltage: 120Vdc
Max.PV Input Current: 20A+20A
Max.PV Input Power: 3000W+3000W
Battery Type: Lead-acid / Li-ion / User Defined / SLD / FLD / GEL
Battery Voltage range: 36~64Vdc

Max.MPPT Charging Current: 100A Max.
Charging Current per MPPT: 50A
MPPT tracking efficiency: 99%
Max. Charging Conversion Efficiency: 96%
Programmable Relays: NO,C,NC
Current limit: DC:10A,30VDC/AC:10A,250VAC
Cooling Method: Intelligent fan
Weight: 11kG
Dimension: 440*340*124mm
Protection Degree: IP21
Operating Temperature Range: -20°C~65°C
