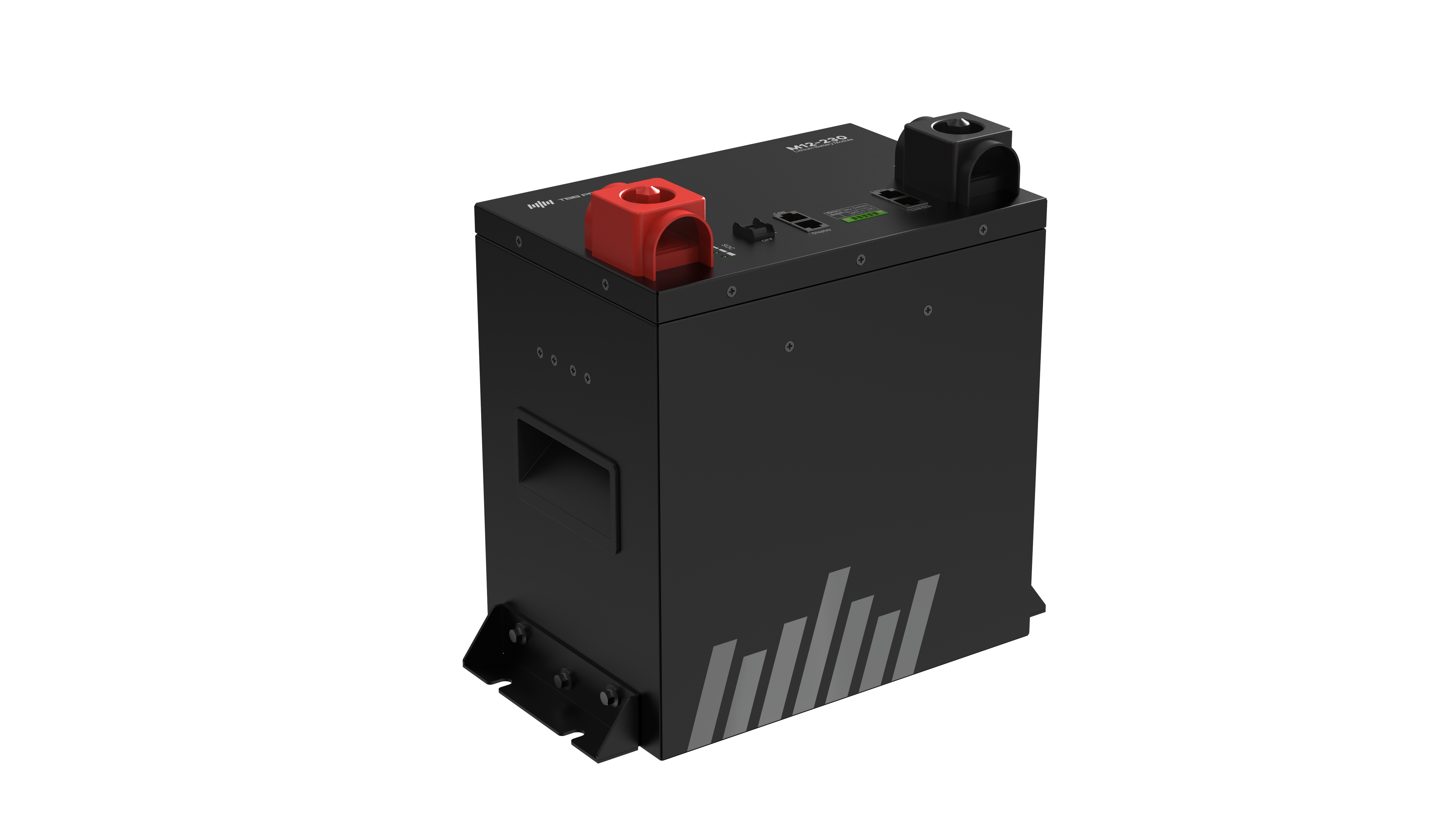

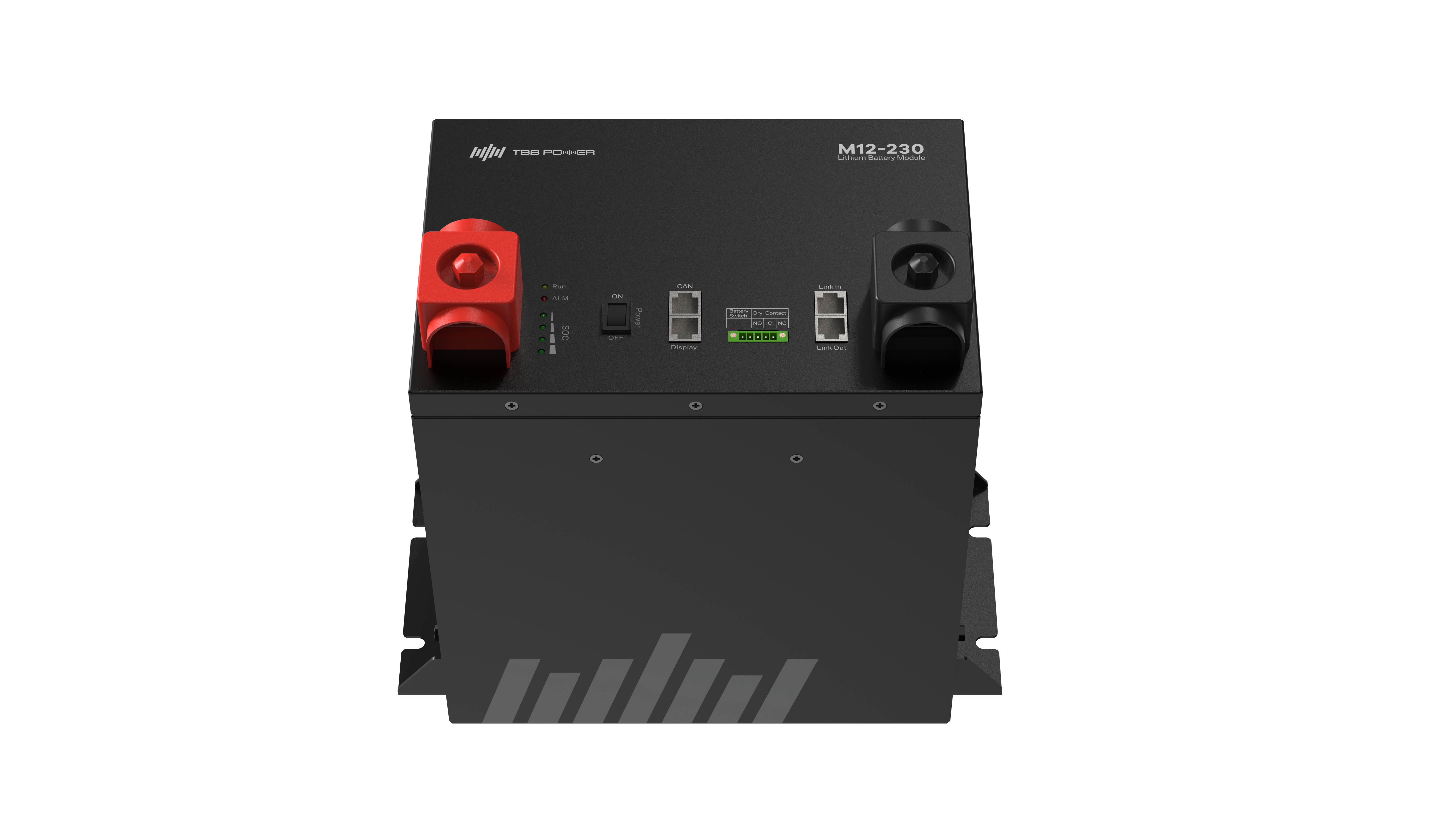

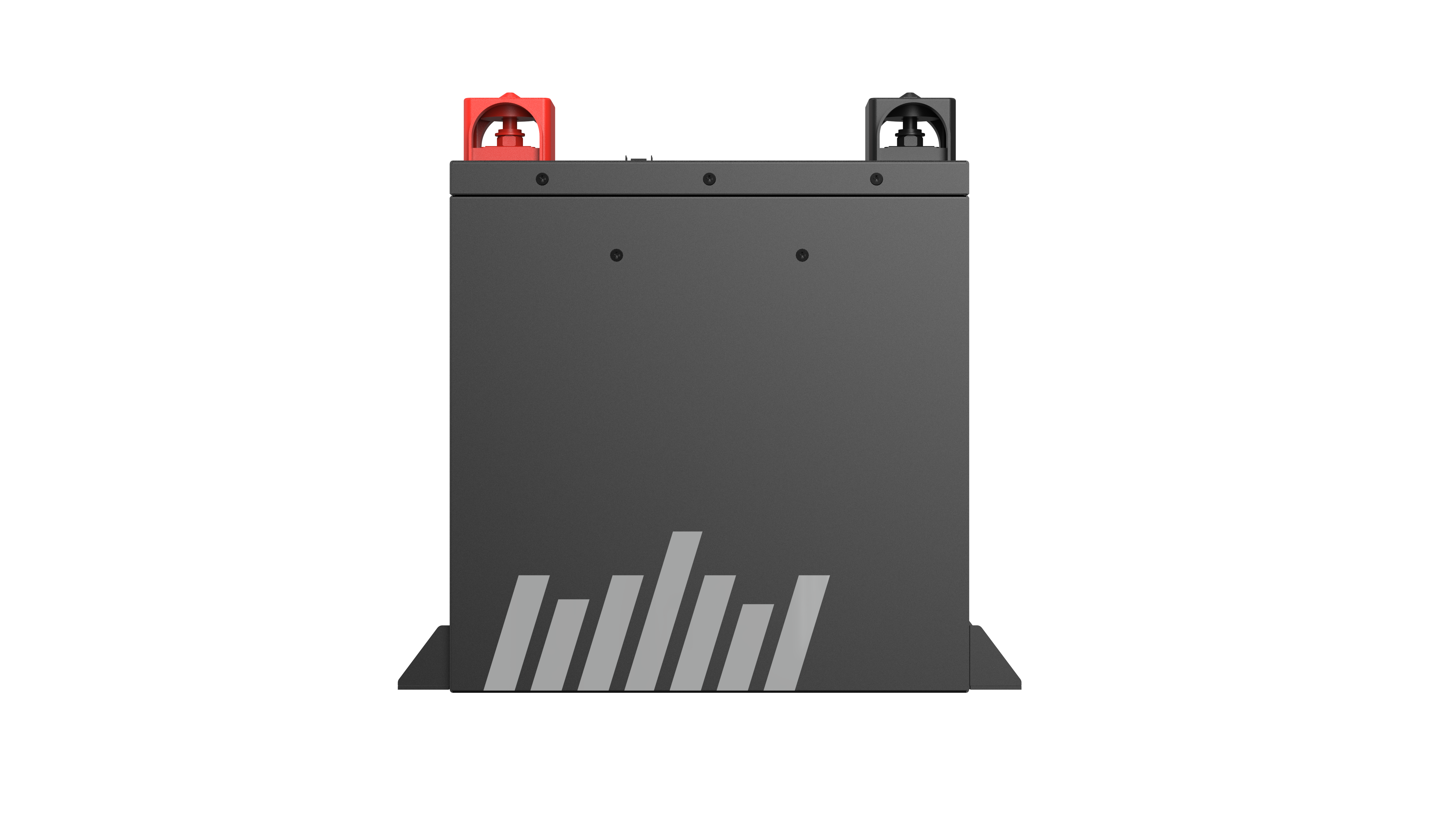

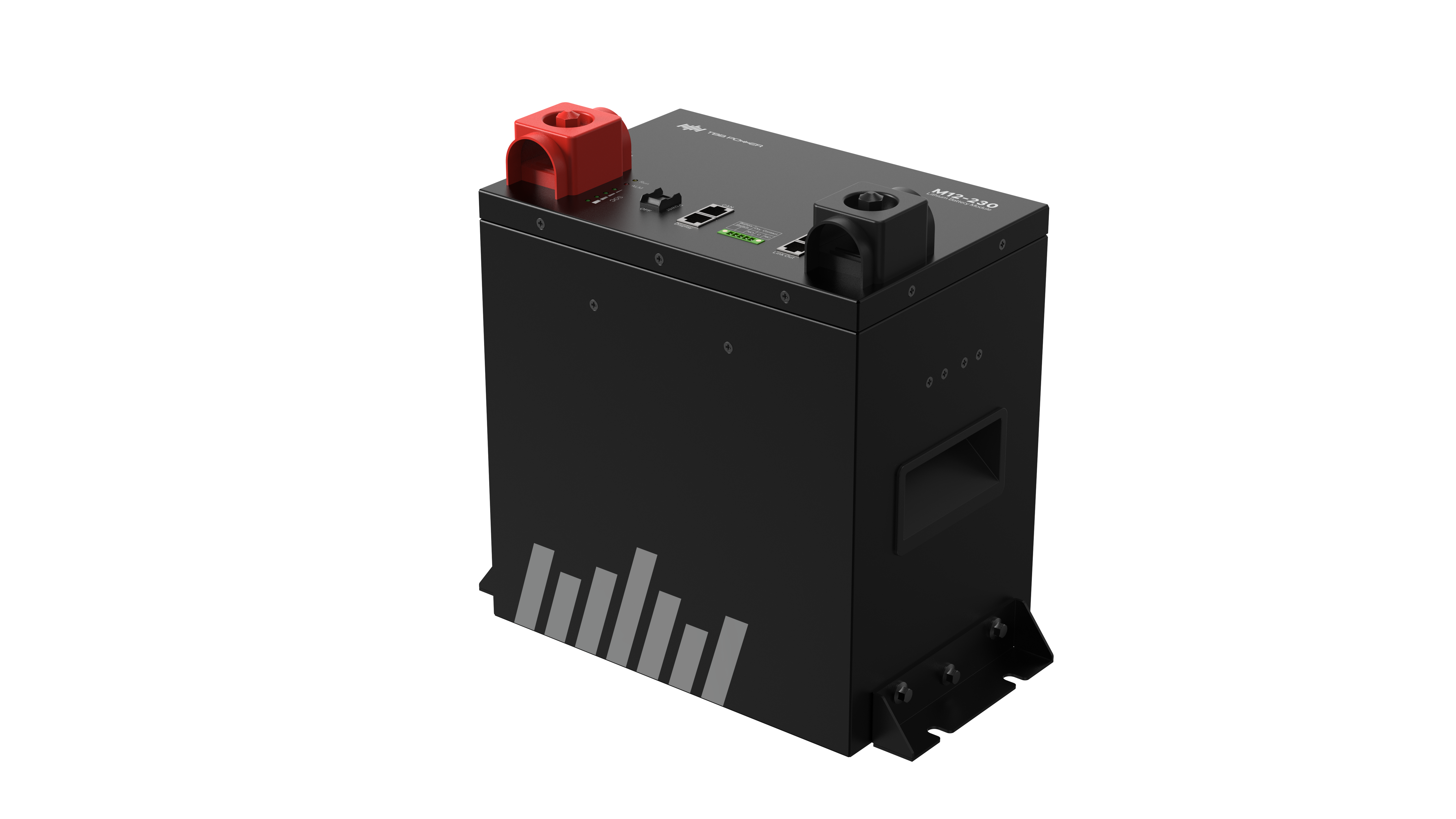

LIBERGRID M12-230 Lithium Battery

$2,088 NZD $2,088 NZD
Tax included.
In stock

Description

The TBB M Series lithium iron phosphate battery delivers high continuous discharge capability, making it suitable for demanding onboard loads such as air conditioners, coffee machines, and microwave ovens, while maintaining a compact and lightweight design. It supports up to 8 units in parallel, providing scalable capacity and flexible system configuration for a wide range of applications.

A built-in BMS provides comprehensive protection by monitoring individual cells to prevent overcharge, over-discharge, and over-temperature conditions, improving safety and extending service life. An integrated heating system enables reliable charging in low-temperature environments by automatically warming the cells during charging, while a smart monitoring system provides real-time data including voltage, current, and state of charge, with Bluetooth app connectivity for convenient remote management.

GridFree Qcard Kits Need finance?

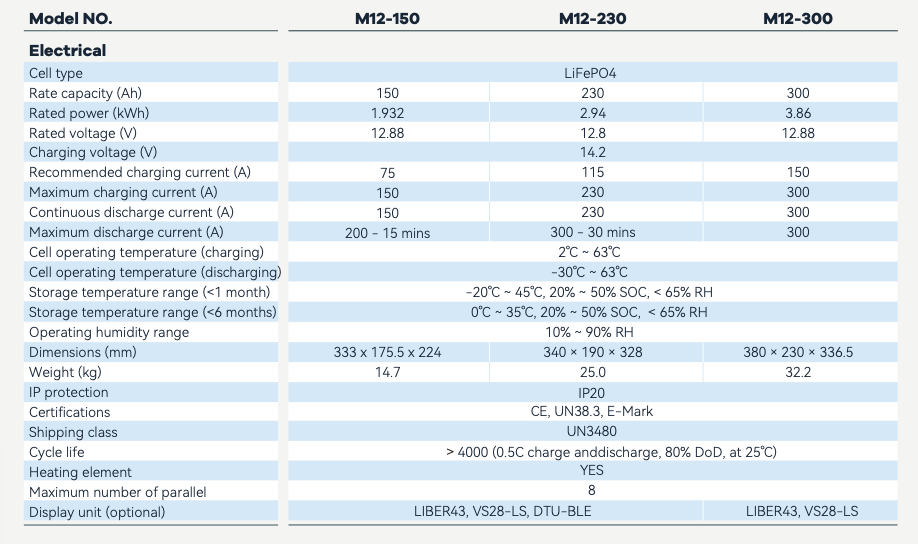

  • Long cycle life: >4,000 cycles (0.5C charge/discharge, 80% DoD, @25°C)
  • Supports max discharge current: 200A for M12-150, and 300A for M12-230 / M12-300
  • Supports up to 8 batteries in parallel
  • Built-in BMS with automatic balancing and full protection
  • Built-in high-precision shunt for accurate SOC-based charge/discharge timing
  • Built-in heating element: automatically warms the battery during low-temperature charging
  • Ultra-low BMS idle consumption: reduces by over 90% (<0.1mA in shutdown mode)
  • Intelligent voltage and current control with terminal adaptive charging for optimal cell balancing and cycle life
  • Supports CAN and RS485 communication
  • Remote control via mobile app and Bluetooth connectivity

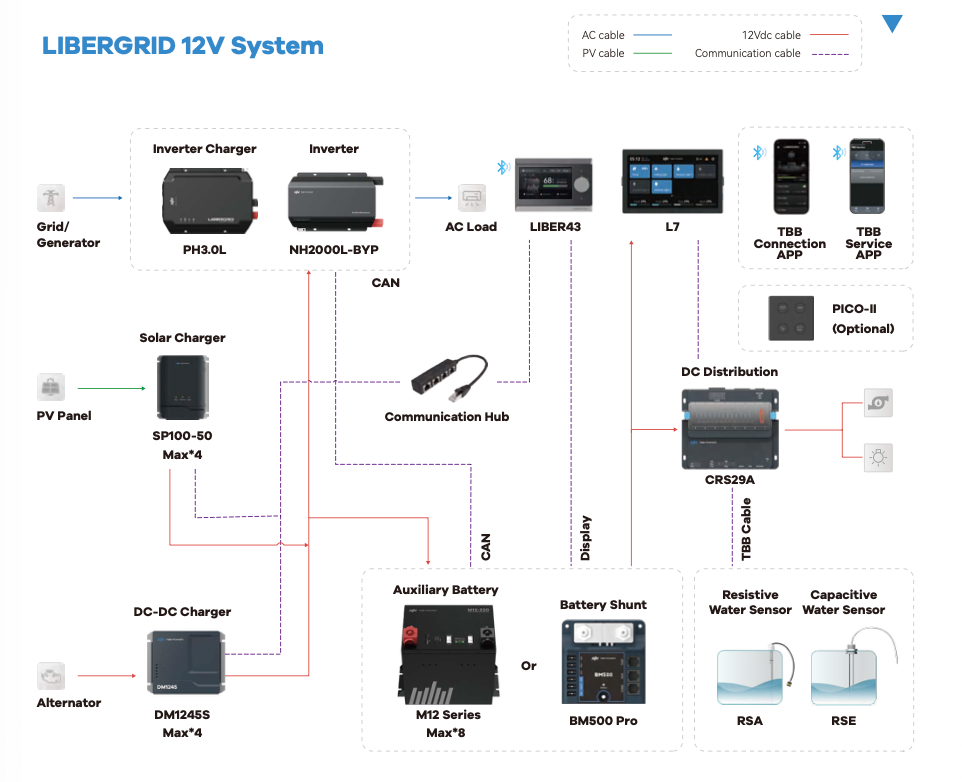

LIBERGRID System Details
