GridFree Double Solar Carport - 7.125kW | 15 x 475W Solar Panels

The GridFree Double Solar Carport turns an ordinary parking area into a productive solar asset.

Designed to accommodate two vehicles, the freestanding structure supports 15 x 475W Risen Tier 1 bifacial N-Type TOPCon solar panels in a 3 x 5 layout. This creates a 7.125kW solar array while providing useful shade and weather protection for the vehicles underneath.

It is an excellent alternative where the existing roof is unsuitable for solar, has limited usable space, faces the wrong direction or is already fully occupied.

The carport can be configured as part of a standard grid-tied solar system or paired with a hybrid inverter, WHES PowerPod battery storage and an EV charger. This allows the solar energy generated above the vehicles to power the property, charge a battery or help charge an EV.

Suitable for residential properties, farms, workshops, offices, commercial buildings and customer parking areas.

KEY FEATURES

• Double-width design for two vehicles

• 7.125kW total solar panel capacity

• 15 x 475W Risen Tier 1 bifacial N-Type TOPCon solar panels

• 3 x 5 panel configuration

• Freestanding design that does not require a suitable building roof

• Low 5-degree solar panel pitch

• Black structural frame as shown in the installation photos

• Designed around wind speeds of up to 55m/s, approximately 198km/h

• Can be paired with grid-tied, hybrid or battery-backed solar systems

• Compatible with WHES PowerPod and ECOS energy management

• EV charger integration available

• Suitable for residential and commercial applications

• Creates a highly visible renewable energy feature for commercial properties

SOLAR ARRAY CAPACITY

• Number of panels: 15

• Panel rating: 475W each

• Total array capacity: 7,125W / 7.125kW DC

• Panel technology: Bifacial N-Type TOPCon

• Individual panel dimensions: 1762 x 1134 x 30mm

• Panel layout: 3 panels deep x 5 panels wide

• Approximate panel array area: 5754 x 5296mm

In three peak sun hours, the 7.125kW array could produce approximately 21.4kWh of solar energy before system losses.

Actual generation will depend on location, season, orientation, shading, panel temperature, inverter selection and system design.

CARPORT DIMENSIONS

• Overall carport width: approximately 6100mm

• Overall roof depth: approximately 5300mm

• Maximum overall height: approximately 3187mm

• Low-side post height: approximately 2400mm

• Width between main posts: approximately 5000mm

• Depth between front and rear posts: approximately 3616mm

• Solar panel pitch: 5 degrees

• Panel canopy size: approximately 5754 x 5296mm

Dimensions are indicative and should be confirmed against the final technical drawings before foundations or site work begins.

The standard package includes:

• Double solar carport structural kit

• 15 x Risen 475W bifacial N-Type TOPCon solar panels

• Solar panel support rails

• Panel clamps

• Carport structural mounting components

• Base plates and associated assembly hardware

• Technical and assembly drawings

STANDARD GRID-TIED SOLAR

Solar energy generated by the carport is used by the property, with surplus generation exported to the grid where permitted.

SOLAR WITH BATTERY STORAGE

Pair the carport with a WHES PowerPod or another compatible hybrid solar system. Surplus daytime generation can charge the battery for use later in the day.

SOLAR WITH EV CHARGING

Add a compatible EV charger and use solar generation to help charge an electric vehicle parked underneath the carport.

SOLAR, BATTERY AND EV CHARGING

Combine the carport with a WHES PowerPod, ECOS energy management and a compatible WHES EV charger for an integrated solar, battery and vehicle charging system.

WHY INSTALL A SOLAR CARPORT?

A solar carport creates a new solar generation surface without relying on the existing building roof.

It may be particularly useful when:

• The building roof does not face a suitable direction

• The roof has limited available space

• The roof is shaded by nearby buildings or trees

• The roof requires replacement or strengthening

• Additional solar capacity is needed

• Covered parking is already being considered

• EV charging is planned

• A business wants a visible sustainability feature

The bifacial panels may also collect some additional light from underneath the array where the ground surface and site conditions allow.

PANELS FORM THE ROOF CANOPY

The solar panels form the main carport canopy and provide shade and useful weather protection.

Final water management, drainage, panel sealing and weatherproofing details must be confirmed as part of the site-specific design and installation. The carport should not be represented as completely weathertight until these details have been assessed and completed by the installer.

SITE ASSESSMENT AND FOUNDATIONS

Every site is different. Foundation and anchoring requirements will depend on:

• Soil and ground conditions

• Existing concrete slab thickness and reinforcement

• Property wind zone

• Coastal or corrosive environments

• Vehicle access and turning space

• Underground services

• Carport orientation

• Nearby buildings and boundaries

• Stormwater and drainage requirements

Do not construct foundations using the general dimensions alone. Final footing and anchoring requirements must be confirmed for the installation site.

CONSENT AND ENGINEERING

Building consent, engineering and planning requirements vary between properties and local councils.

Some ground-level carports may qualify for a building consent exemption, but the work must still comply with the New Zealand Building Code, relevant district plan requirements, boundary restrictions and the conditions of any applicable exemption.

The property owner should confirm the requirements with their local council, Licensed Building Practitioner or Chartered Professional Engineer before ordering or commencing site work.

The supplied drawing uses a design wind speed of 55m/s. Final suitability, foundations and structural compliance must still be confirmed for the installation address.

Snow loading is not specified in the current drawing and must be assessed separately for alpine or high-snow locations.

INSTALLATION

The structure should be assembled by suitably experienced construction professionals. All solar and electrical work must be completed and certified by a New Zealand registered electrician.

SOLAR PANEL WARRANTY

The supplied Risen solar panels include:

• 25-year product warranty

• 30-year performance warranty

Warranty conditions apply. Structural, installation and electrical warranties will depend on the selected products and installation provider.

BEFORE ORDERING

Please contact GridFree with the following information:

• Installation address

• Residential or commercial application

• Photos of the proposed location

• Available parking dimensions

• Existing concrete or ground conditions

• Preferred carport orientation

• Distance to the switchboard

• Whether battery storage is required

• Whether EV charging is required

• Details of the existing solar system, if applicable

We will confirm product suitability, electrical requirements, freight and the recommended next steps before the order is finalised.

IMPORTANT

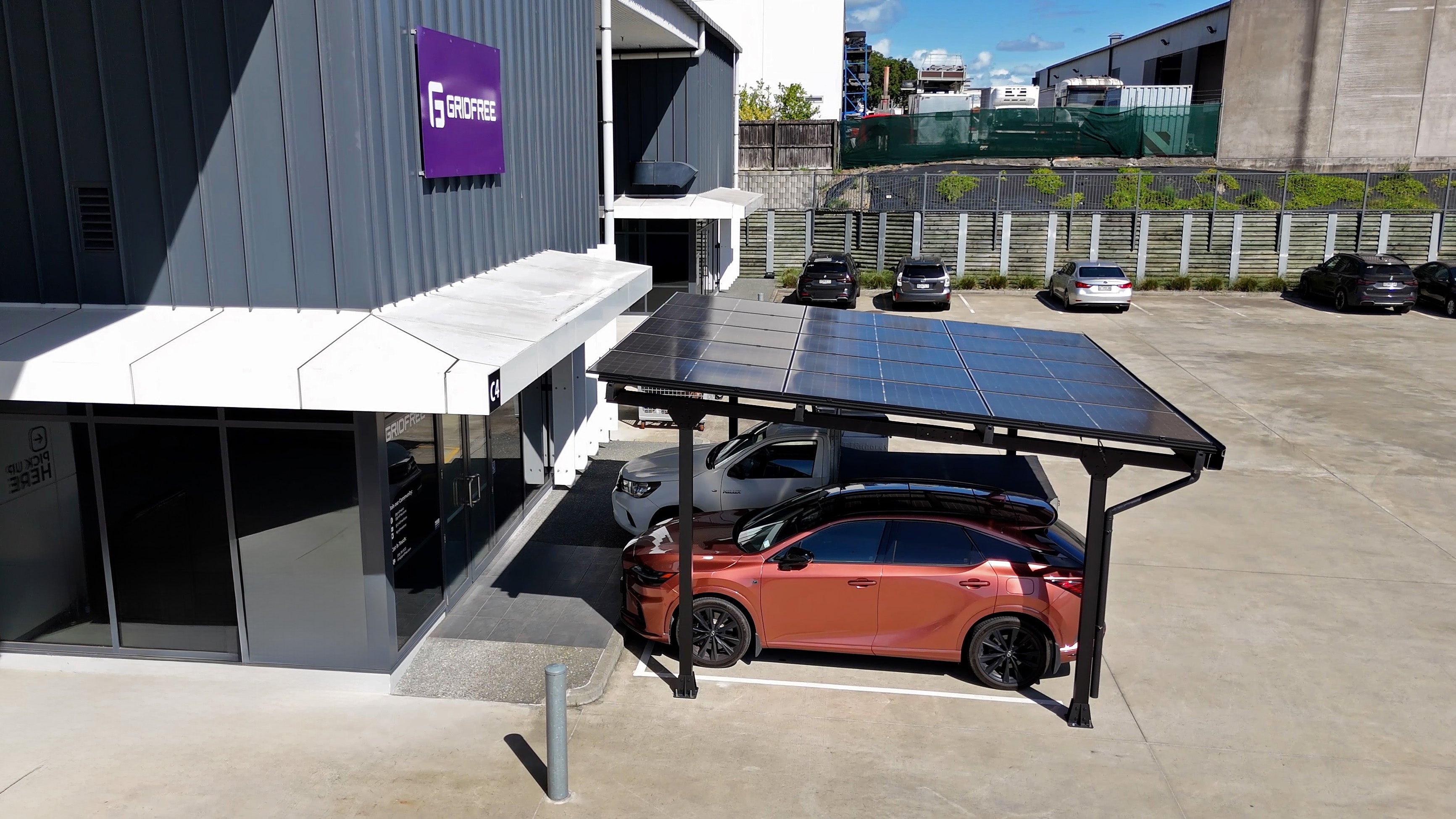

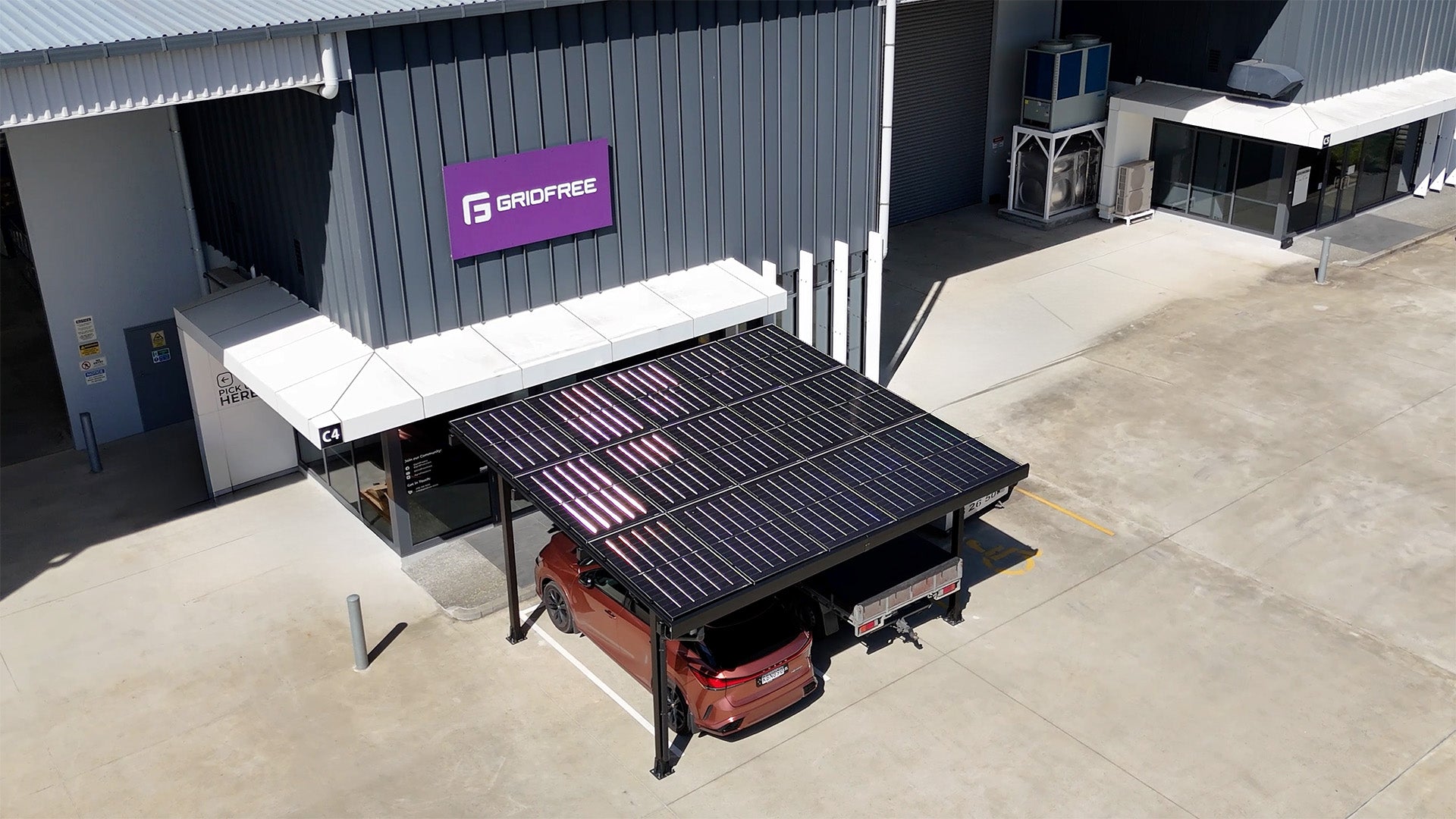

This product must be assessed and designed for the installation site. Product images show the GridFree demonstration installation and may include equipment, foundations, drainage or electrical components that are not included in the standard package.
