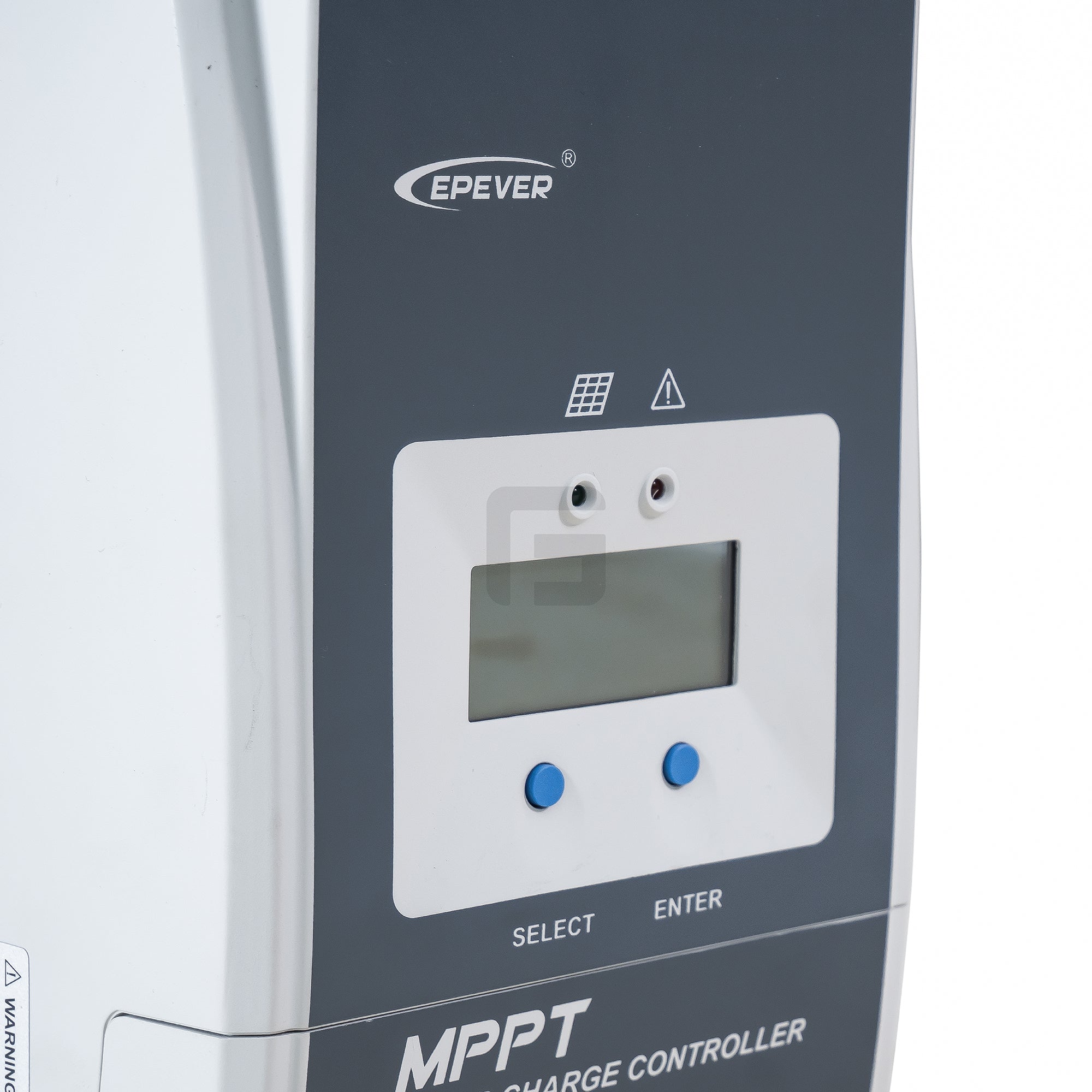

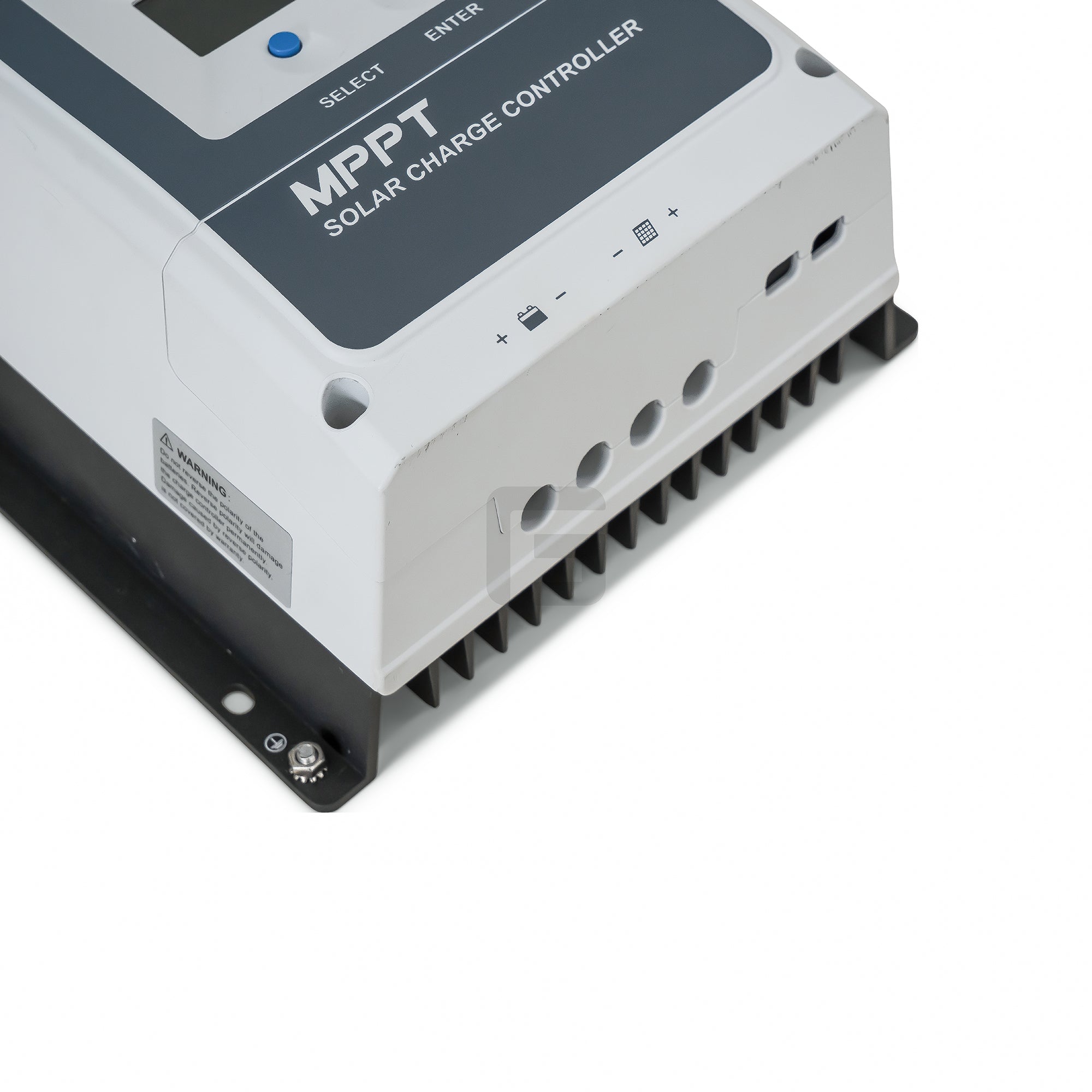

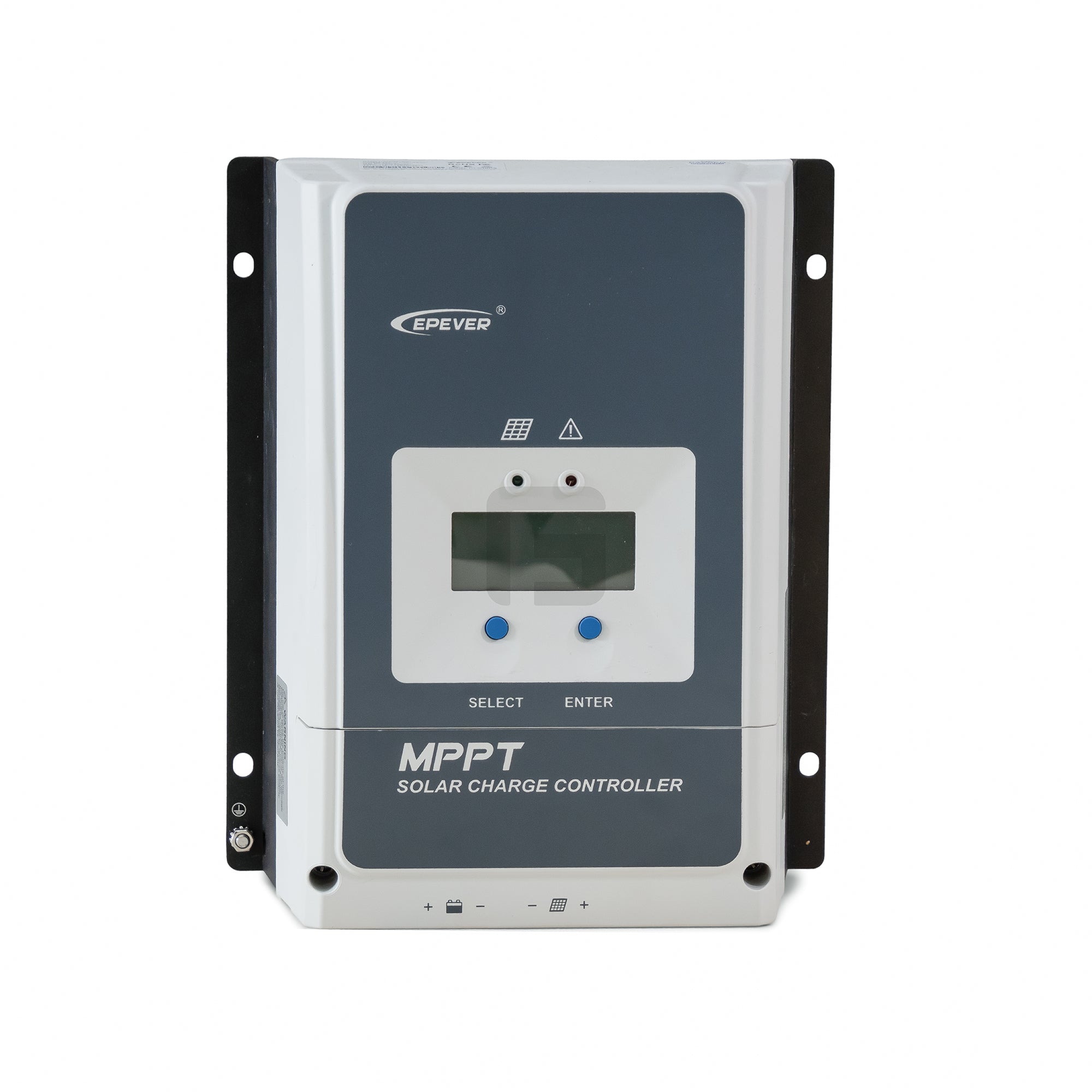

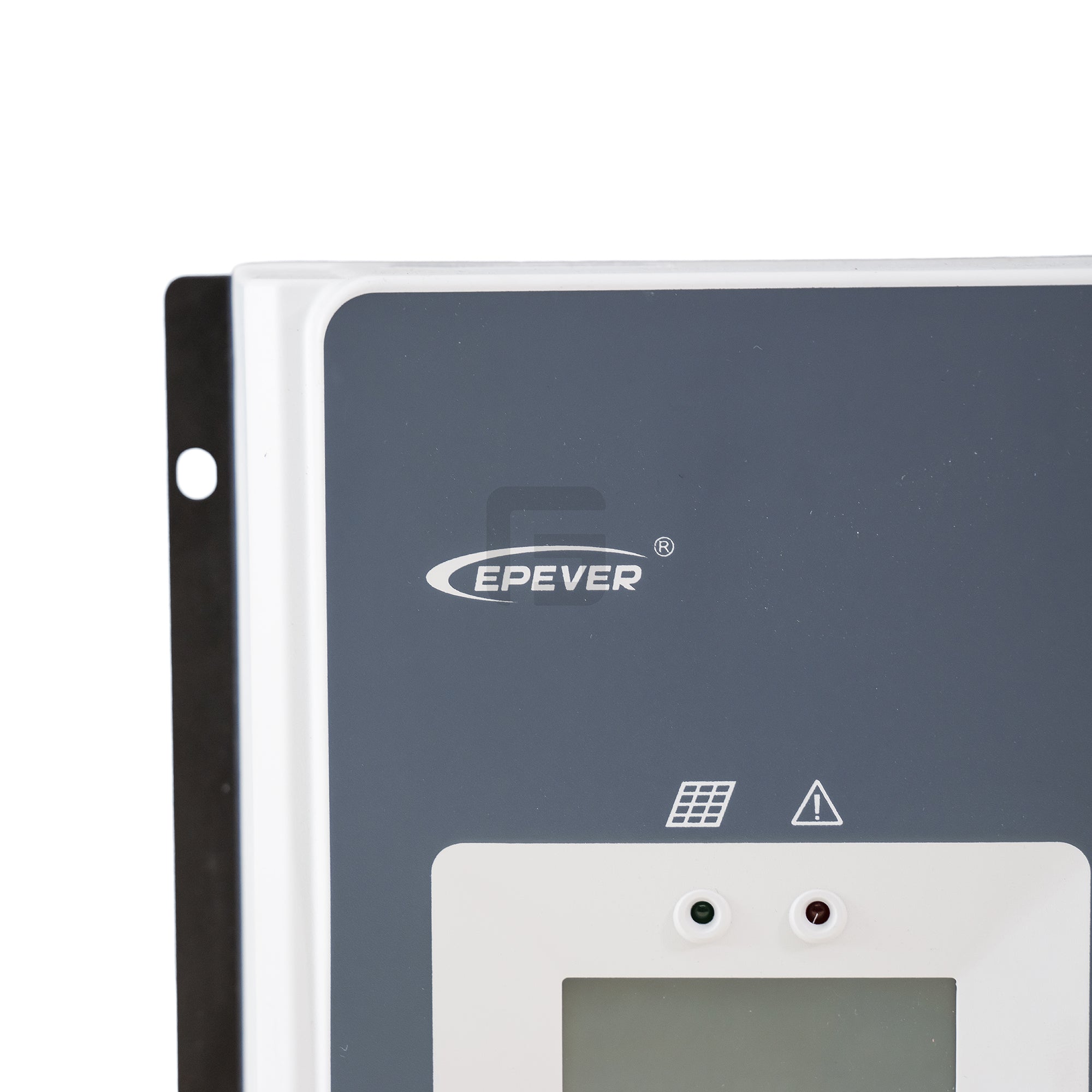

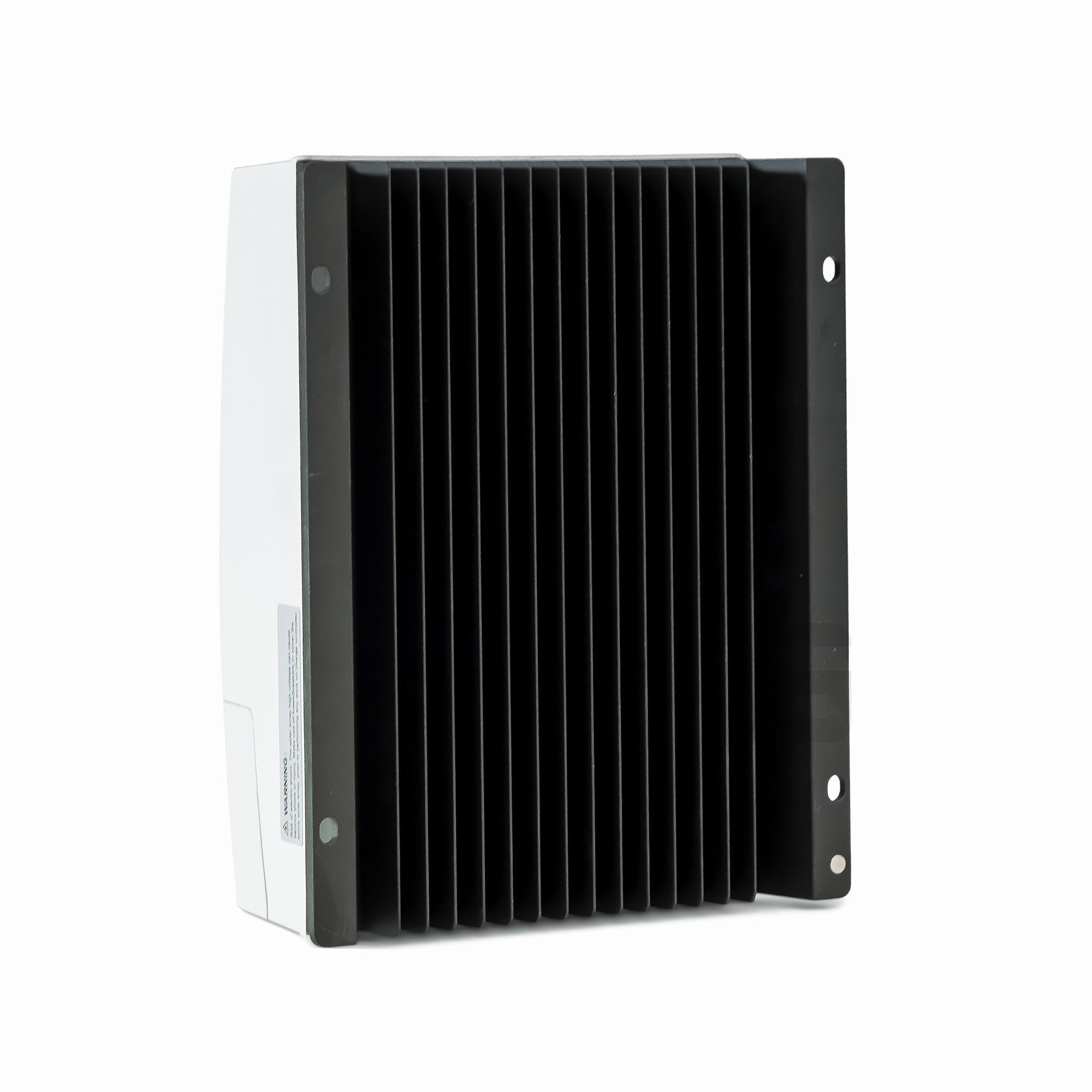

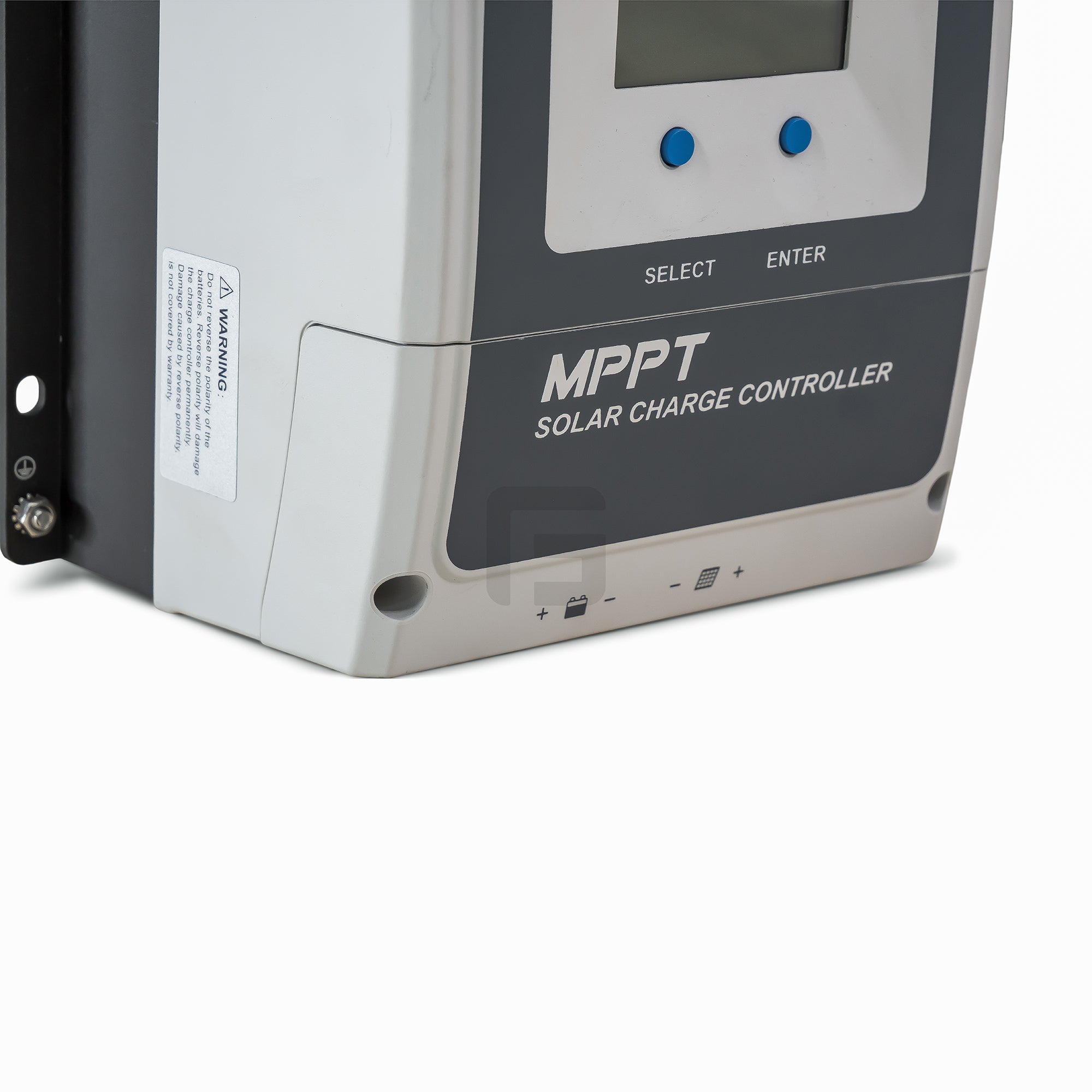

Tracer 5415AN - Newest Model
The Epever 50A MPPT Charge Controller, or Tracer 5415AN in the Tracer AN series, is built to utilise the maximum energy of the panel. It is based on multiphase synchronous rectification technology (MSRT) and an advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has a high response speed, is highly reliable, and meets industry standards. MSRT can guarantee very high conversion efficiency at any charge power, which sharply improves the energy efficiency of the solar system; and the advanced MPPT control algorithm minimises the maximum power point loss rate and loss time, to ensure tracking efficiency, corresponding speed and high conversion efficiency under high or low power, so that in any situation, Tracer AN products can rapidly track the maximum power point (MPP) of PV array to utilise the maximum energy of the panel.
Product Feature:
•CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)
•Advanced MPPT technology & ultra-fast tracking speed is up to 99.5% guaranteed
•Maximum DC/DC transfer efficiency is as high as 98.7%
•Accurate recognition and tracking at the highest point of multiple-peaks MPP
•Wider range of MPP operating voltage.
•Automated over-current protection.
•Supports 4 charging options: Sealed, Gel, Flooded and User.
•Battery temperature compensation function
•Real-time energy recording and statistical function
•Automatic over-temperature power reduction function
•Support up to 8 units in parallel to expand system
•Load relay control external load switch signal to use diversified load work modes
•The first and the second disconnection of load control, contain two relay’s contact.
•Auto-control of utility and generator relay design
•Utility or generator auto-control relays make it easy to use the hybrid power system
•The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage
•Controller can be monitored or parameters set by using the phone App or PC software.
Technical Specifications:
- Nominal System Voltage: 12/24/36/48VDC or Auto
- Battery Input Voltage: 8V ~ 68V
- Battery Type: Sealed/ GEL / Flooded / User
- Rated Charge Current: 50A
- Battery Fuse: 80A/ 58V
- Rated charge power: 625W/12V, 1250W/24V, 1875W/36V, 2500W/48V
- Max.PV open circuit: 150V
- Track efficiency: >99.5%
- Conversion Efficiency : <98.7%
2 Year Warranty
