Full dimensions can also be found on the individual item's pages.
Kits:
- Solar panels are 1750mm x 1100mm + packaging, and weigh approx 20kg
- Gel batteries 500x240x220mm + packaging, and 60kg each
- 2 or 3 boxes - inverter+charge controller or hybrid, and accessories box - sizes vary, refer to dimensions below
- Mounting Rails: 2000mm
Batteries:
- Gel batteries: 500x240x220mm, 60kg
- Lead Carbon: 338x227x294mm, 61kg
- Lithium: 650x260x170mm, 30kg
Inverters:
- 1500W: 362 x 231 x 98 mm
- 2000W: 436 x 249 x 116 mm
- 3000W: 507 x 249 x 116mm
Charge Controllers, all approx 3-5kg:
- 30A: 228x164x55mm
- 50A: 261 x 216 x 119mm
- 60A: 340 x 236 x 119mm
- 100A: 374x242x143mm
Hybrid Inverter/Chargers:
- 5KW ES: 330x485x135mm, 12kg
- 2000TL: 315x400x130mm, 8kg
- 5000TL: 350x455x130mm, 12kg
- 6KW HVM: 360x540x218mm, 41kg
- 12KW HVM: 380x650x255mm, 75kg
Below is an example of what you can run throughout a day if you are generating 14,000Wh of energy (~3 sunlight hours, Winter).
We do NOT recommend using this solar kit for Water Heating, Space Heating or Cooking applications - learn more.
100W Lighting
4hrs/day (400Wh)
50W Fan
2hrs/day (100Wh)
2000W Coffee Maker
4 Mins (140Wh)
20W Wireless Router
24hrs/day (480Wh)
600W Water Pump
1 hours a day (600Wh)
2000W Microwave
5 Minutes (170Wh)
Efficient Fridge/Freezer
24hrs/day (1000Wh)
60W Laptop
4hrs/day (240Wh)
100W Television
2hrs/day (200Wh)
25W Phone Charger
6hrs/day (150Wh)
1800W Kettle
10 Mins (300Wh)
2000W Toaster
3 Mins (100Wh)
500W Washing Machine
2x/week Avg (125Wh)
240W Lighting
8 hours a day (1,920Wh)
50W Fan
8 hours a day (400Wh)
2000W Coffee Maker
10 Minutes (300Wh)
20W Wireless Router
24 hours a day (480Wh)
600W Water Pump
2 hours a day (1200Wh)
1800W Dishwasher
1 hours a day (1800Wh)
2000W Microwave
20 Minutes (600Wh)
Efficient Fridge/Freezer
24 hours a day (1000Wh)
60W Laptop
12 hours a day (720Wh)
100W Television
6 hours a day (600Wh)
60W Cordless Tool Charger
12 hours a day (720Wh)
1500W Hair Dryer
15 minutes a day (375wh)
25W Phone Charger
12 hours a day (300Wh)
375L Chest Freezer
24 Hours a day (460Wh)
2000W 4 Slice Toaster
12 Minutes (200Wh)
500W Washing Machine (ColdWash)
4x a week Average (250Wh)
1800W Kettle
10 Minutes (300Wh)
200W Cordless Vacuum
30 Minutes (100Wh)
This list is a guide to what you might run in the course of a day, but can be swapped out to suit your needs, (within the daily Watt hour estimations). This estimate is based off the NZ winter average of 3 hours of sunlight per day (Summer averages about 7 hours). This doesn't account for situations in which you may have to cut back on your power use or supplement with a generator due to several days of poor weather preventing your battery bank from adequately recharging each day. Learn more here.
Not enough power? Contact us for a custom Kit.
Too big? Check out the Freedom Kit.
Not sure if this kit is for you? Learn more about the Lifestyle Kit solar power for off-grid living.
All Hardware Included

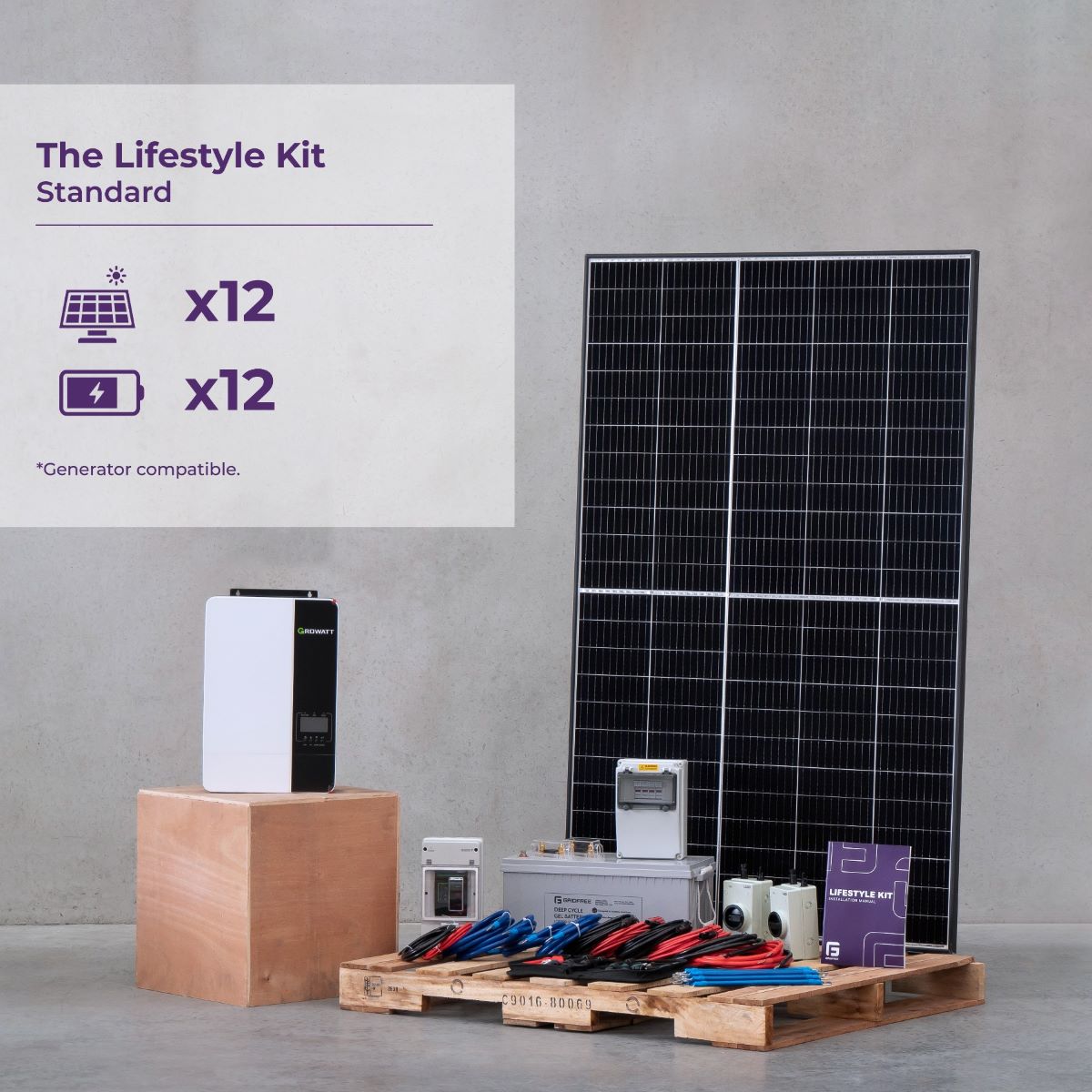

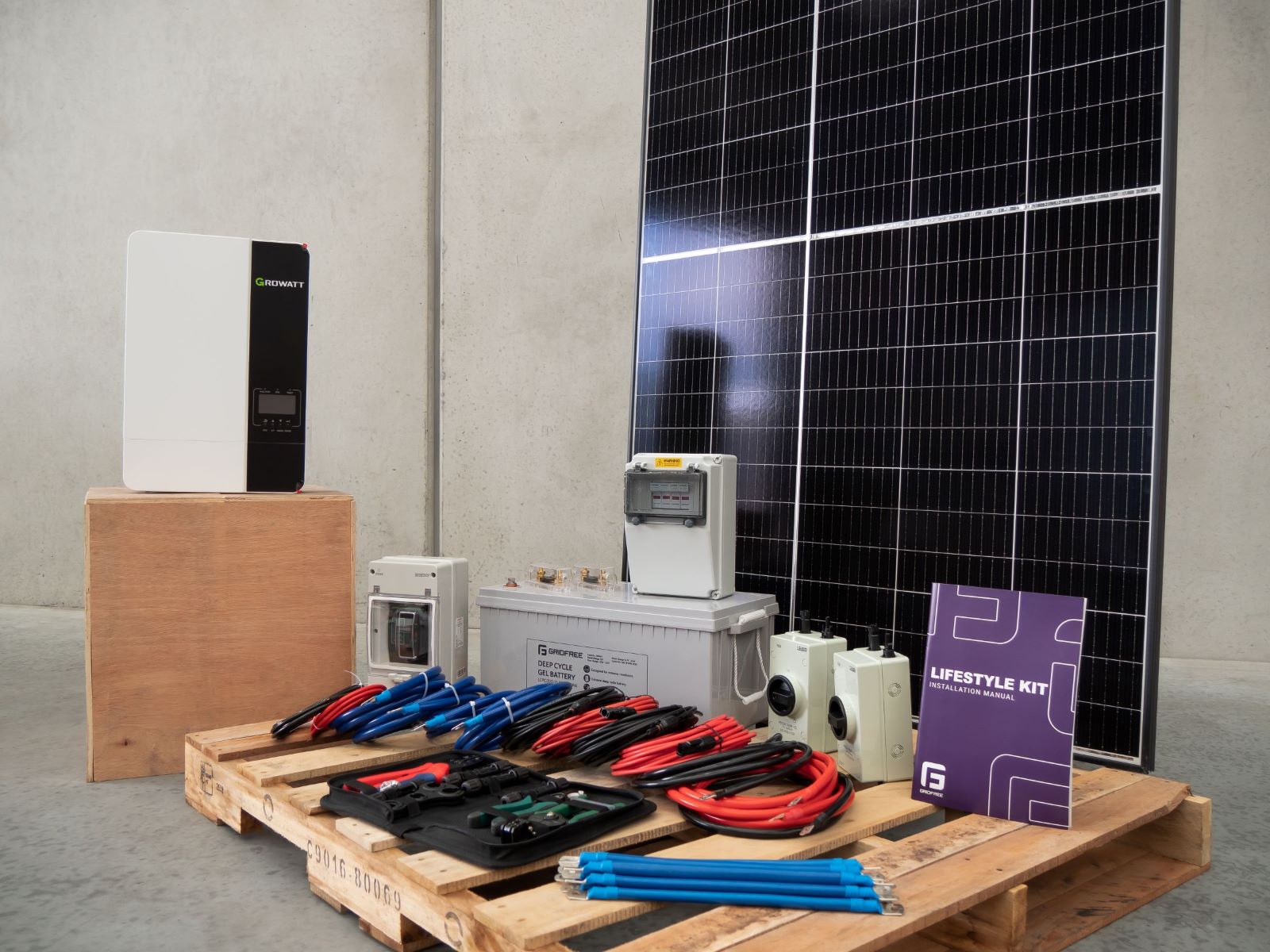

You’ll find everything you need to get your off-grid home set up and running with our solar power for homes kit which includes 12 solar panels, 12 batteries to store your solar energy, a hybrid inverter, and all the cables, crimp connections, circuit breakers, and mounting hardware.
We also offer the tools required if you wish to make any changes or alterations to the base kit, and a number of related accessories.
Feature Rich Equipment
We supply our Lifestyle Kit with the Growatt SPF 5kW ES Hybrid Inverter unit. The hybrid inverter allows you wire your solar power system into your household switchboard, and also supplement your energy usage with grid power or a generator.
Trina Perc Mono solar panels are our panel of choice. They use the latest technology to ensure their panels are as efficient as possible, meaning they produce 390W+ from a size where most panels only produce 270W at the best of times
All our Standard kits come with our 200Ah 12V battery, specifically designed for solar usage - no trickle charging needed. We are so confident in this battery we offer our warranty based on a 50% Depth of Discharge (DoD), while most companies only warranty a 20% DoD.
