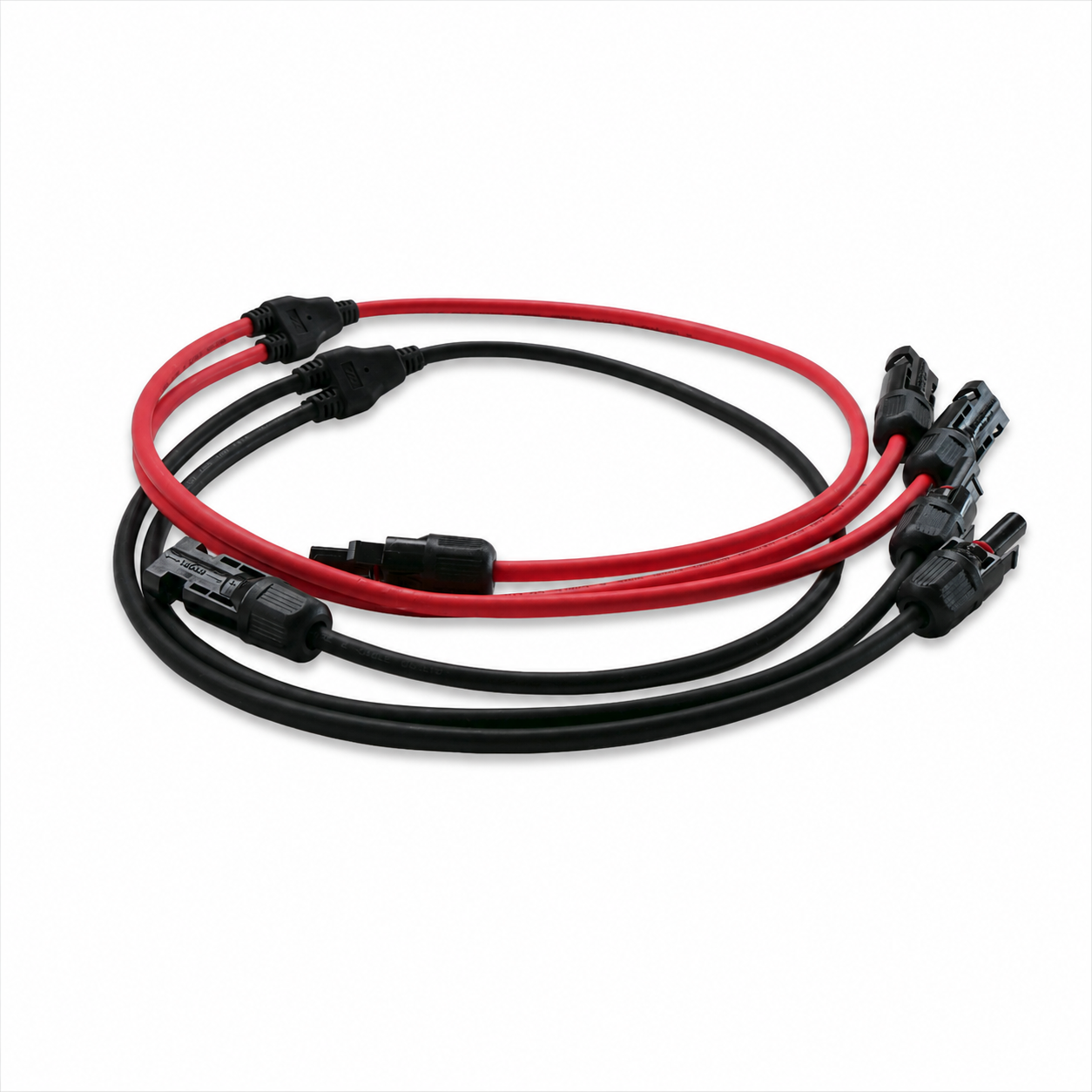

MC4 Solar Adapter Y Branch Connector Set - 1 meter

MC4 Solar Adapter Y-Branch Connector Set – 1 Metre

This MC4-compatible Y-branch connector set is designed to combine four solar panel strings into a single positive and negative connection.

The set includes one male-to-four-female connector and one female-to-four-male connector, each with a 1-metre trunk cable. It provides a convenient solution for connecting four parallel solar strings while maintaining secure, weather-resistant connections.

What’s Included

• 1 × male-to-four-female branch connector
• 1 × female-to-four-male branch connector
• 1-metre trunk cable on each connector

Technical Specifications

Connector Configuration: 1-to-4 Y-branch pair
Trunk Cable Size: 6mm² (AWG 10)
Branch Cable Size: 4mm² (AWG 12)
Rated Current: 50A
Rated Voltage: 1,000V DC
Test Voltage: 6,000V AC (50Hz for 1 minute)
Contact Material: Tin-plated copper
Insulation Material: PPO
Ingress Protection: IP67
Safety Class: Class II
