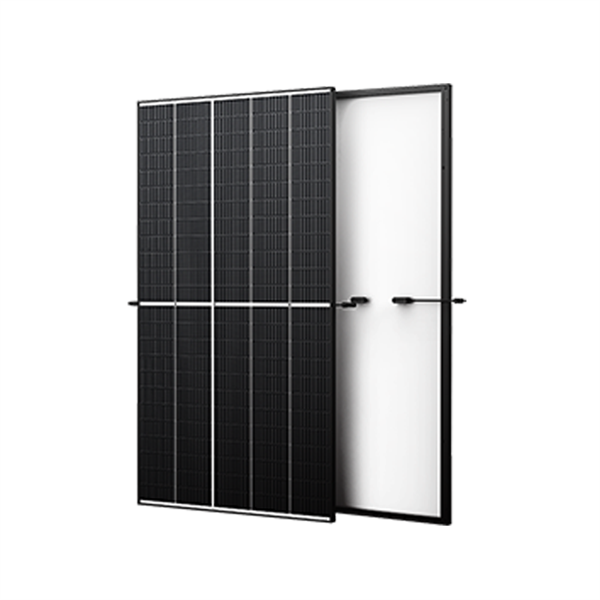

Trina VERTEX S 390w PERC Mono Half-Cell Solar panel
The Trina VERTEX S Series Solar Panel 385W-395W PERC Mono-Crystalline solar panel is a high quality, reliable mono solar panel, and our pick for each of our DIY off-grid solar system kits.
Based on advanced technology from the Vertex platform, the new Vertex S 385W+ module is perfectly designed to fulfil the power, efficiency, size, weight, appearance, mechanical load, reliability requirements of rooftop applications! It's the best balance of power, size, and weight. We stock a range of 385W-395W
Tier 1 - A Grade Solar Panel.
Dimensions: 1754mm x 1096mm x 30mm
No.of Cells: 120 (6x20)
Front Glass: 3.2mm, High Transmission, AR Coated Heat Strengthened Glass
Frame: 30mm Anodised Aluminium Alloy
Max Power (Pmax): 385Wp - 395Wp
Maximum Power Voltage (Vmp): 33.8
Maximum Power Current (Imp): 11.54
Open-circuit voltage(Voc): 40.8
Short-circuit Current(Isc): 12.14
Module Efficiency STC(%): 20.3%
Weight: 21 kg
Warranty:
15 year Product Workmanship Warranty
25 year Performance Warranty with lowest degradation
How much do solar panels cost in NZ?
Each Trina mono solar panel costs $500 with solid performance and reliability, based on their tight control on every step of manufacturing. They guarantee the quality of their products with an industry-leading 25-year lifetime warranty, assuring at least 80% output at the end of the 25-year operating time. Learn more.
