TBB Power - Tyrann 5.0S Inverter Charger

Regular price $2,650.00 NZD Sale price $2,650.00 NZD
Tax included.
In stock

Description

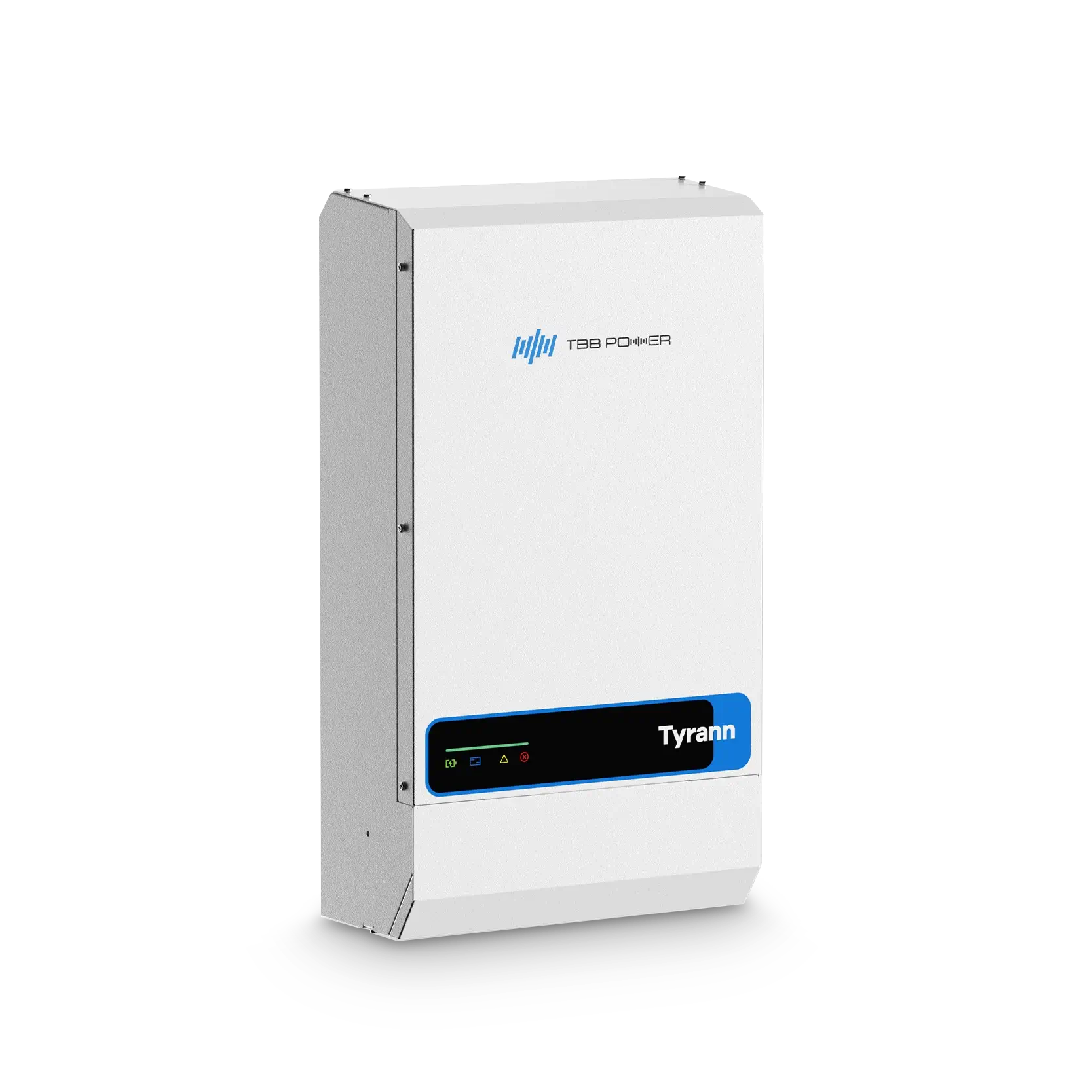

TBB Renewable Tyrann 5.0 S Transformer-Based Hybrid Inverter Charger

The TBB Renewable Tyrann 5.0 S is a robust and reliable transformer-based inverter charger, specifically designed for backup power and off-grid applications. Combining durability with advanced functionality, this inverter offers exceptional performance and efficiency, ideal for residential and commercial energy systems.


Key Features

Versatile Power Management

  • Available in 5kVA to 8kVA models, delivering reliable power for diverse energy demands.
  • Includes a programmable smart port, configurable as either a generator input or a secondary AC output, enabling efficient load management during power shortages.

Superior Energy Optimization

  • Maximizes solar energy usage by prioritizing load powering, battery charging, and feeding surplus energy back to the grid.
  • Outperforms conventional transformer-based inverters, ensuring minimal energy waste and greater efficiency.

Smart Integration and Retrofitting

  • Supports energy self-consumption, reducing dependence on external power sources.
  • Ideal for retrofitting existing PV systems, enhancing their efficiency and extending their lifespan.

Seamless Compatibility

  • Fully compatible with the TBB Power/TBB Solar range of lithium batteries (ES100 II) for reliable energy storage and smooth operation.

Why Choose the TBB Renewable Tyrann 5.0 S?

  • Built with a durable transformer-based design, ensuring long-term reliability.
  • Advanced energy management features tailored to maximize solar energy efficiency.
  • Perfect for new systems or as an upgrade to existing setups, providing flexibility and enhanced performance.

The TBB Renewable Tyrann 5.0 S is the ideal solution for those seeking a powerful, efficient, and reliable hybrid inverter charger for backup power or off-grid applications.

Product Topology: Transformer Based

AC Input Range: 175~265VAC

AC Input Current (Transfer Switch): 50A

INVERTER

Nominal Battery Voltage / Input Voltage: 48V / 42~68V

AC Output Voltage: 220/230/240VAC

Harmonic Distortion: <2%

Max Output Power (30min) at 25°C: 5000W

Continuous Output Power at 25°C: 4000W

Peak Power / Surge: 15000W / 300%

Efficiency (Peak): 96%

Waveform: Pure Sine Wave

AC Input Voltage: 230VAC

Max AC Charge Current: 70A

Transfer Time: 0ms (<15ms in Weak AC source mode)

General Data

Protection Degree: IP21

Max Output Current: 50A

Remote On-Off / Programmable Relay: Yes / 2x (30VD/3A or 250VAC/3A)

Mechanical Data

Battery Connection / AC Connection: Bolts M8*2 (1+1) / Screw Terminals 10mm²

Dimensions: 570 x 310 x 154 mm

Net Weight: 30 kg

Altitude: 2000 m

Operating Temperature: -40°C to 65°C (Without Condensation)

Warranty

Duration: 3 Years + 2 yrs with TBB NOVA cloud connection
