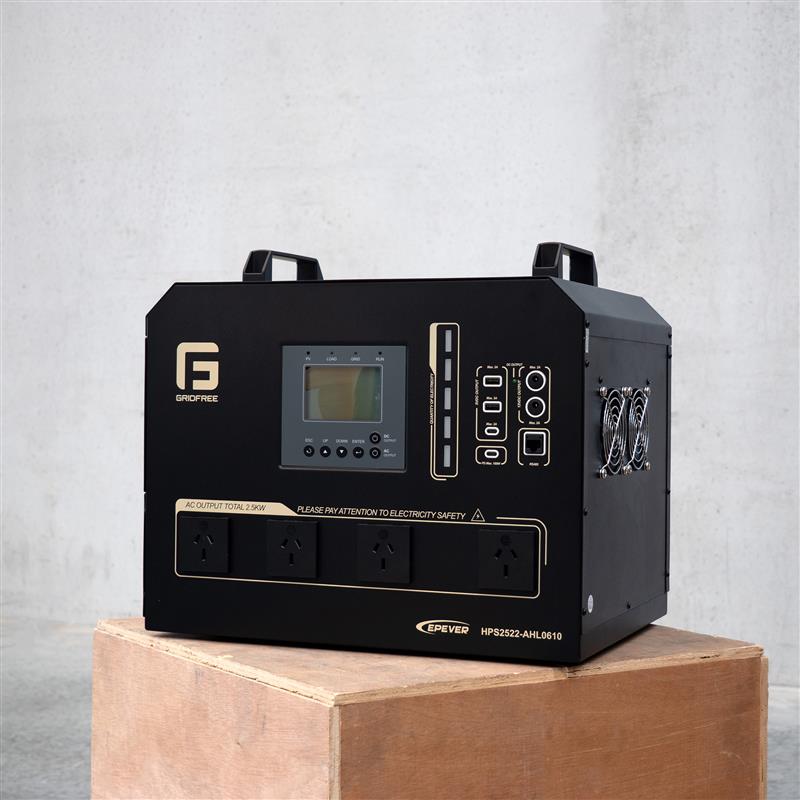

EPEVER Solar Generator Power Station - 2.56kWh All-in-One

$4,000 NZD $4,000 NZD
Tax included.
In stock

Description

HPS2522-AHL0610: The HPS-AHL Solar Generator series offers advanced home battery backup with LiFePO4 lithium battery, supporting utility, generator, and solar charging. It features responsive DSP control, multiple modes, and Modbus communication. With optimised MPPT tracking, it maximises solar energy usage. Efficient AC to DC conversion and DC to AC inverting power household appliances and electronics. Multiple DC outputs, including USB-C ports for fast charging, enhance versatility. This high-quality, reliable system improves solar power supply efficiency, providing flexible energy solutions for homes.

*Meets NZ/AUS Standards, Australian/NZ plug included

GridFree Qcard Kits Need finance?

Battery Rated Voltage: 25.6VDC

Battery Type: Lithium [LFP8S1P]

Cycle Times: 5000 times

INVERTER OUTPUT

Rated Power: 2500W

AC Voltage Regulation: 230VAC + 5% @ 50/60Hz

4-second Transient Surge Output Power: 4500W

Output Voltage Waveform: Pure Sine Wave

AC Input Voltage: 230VAC

Output Voltage Harmonic Distortion Rate: <3% (Resistive Load)

Output Gradual Start: Yes

Solar Controller

PV Maximum Input Withstand Voltage: 95VDC (at minimum operating environment temperature

Solar Controller type: MPPT

MPPT Maximum Efficiency: >99.5%

MPPT Voltage Range: 24~76VDC

PV Maximum Charge Current: 60A

DC Output

12V DC Output (x2): 12V⎓2A, Max. 24W/port, Total 48W

USB-A Output (x2): 12V⎓2A, 5V⎓3A, Max. 15W/port, Total 30W

USB-C Output (x1): 5V⎓3A, Max. 15W

USB-C Output (x1): 5/9/12/15V⎓3A, 20V⎓5A, Max. 100W

Others

Work Temperature Range: -20°C~50°C

Dimension (L/W/H): 427x325.4x368mm (with floor mats and handles)

Net Weight: 37kg

Operating Environment

Enclosure: IP30

Communication Method: Bluetooth, RS485 (WiFi optional)

LCD: Monochrome LCD, English interface

Warranty

2 Years

Datasheet
