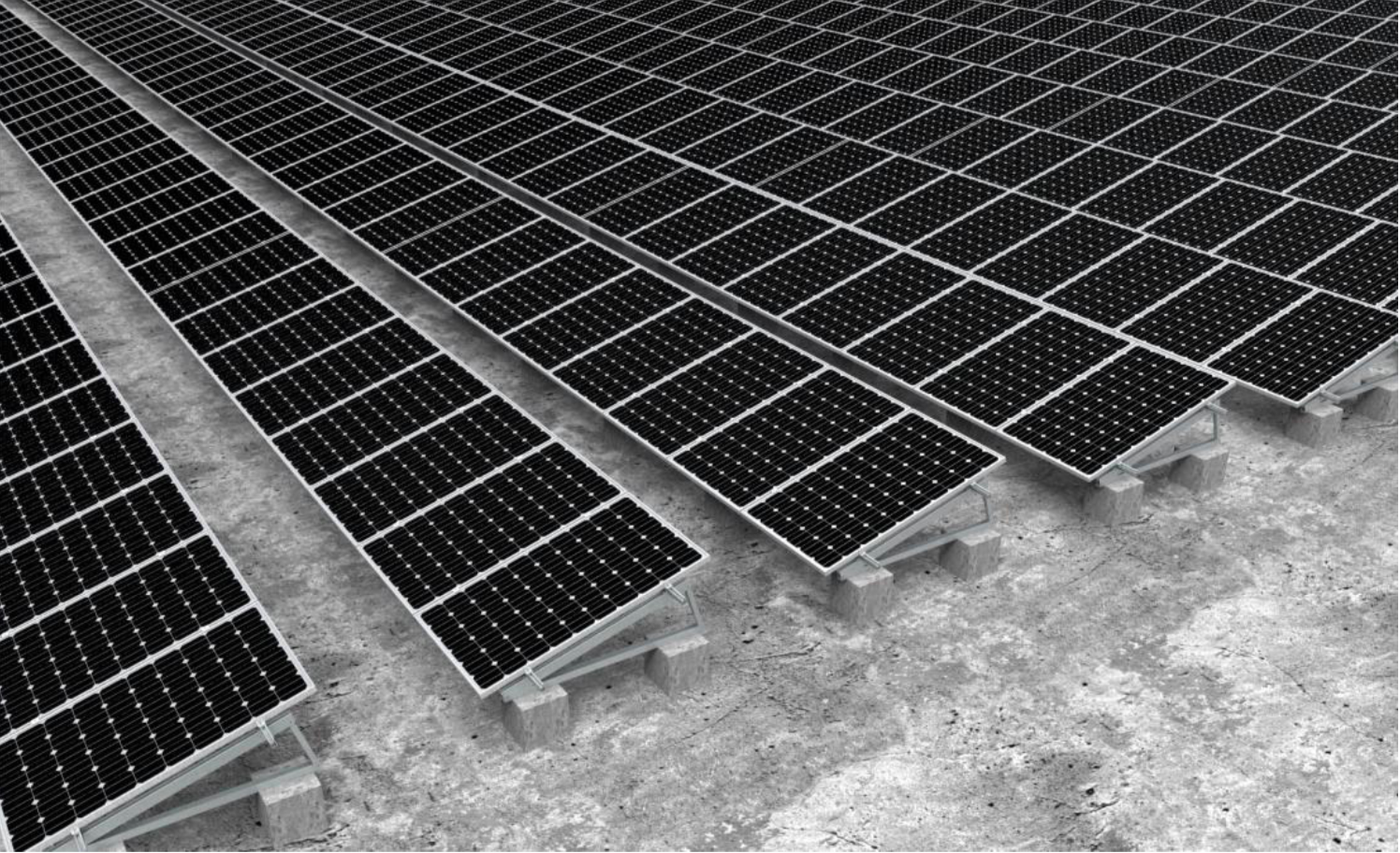

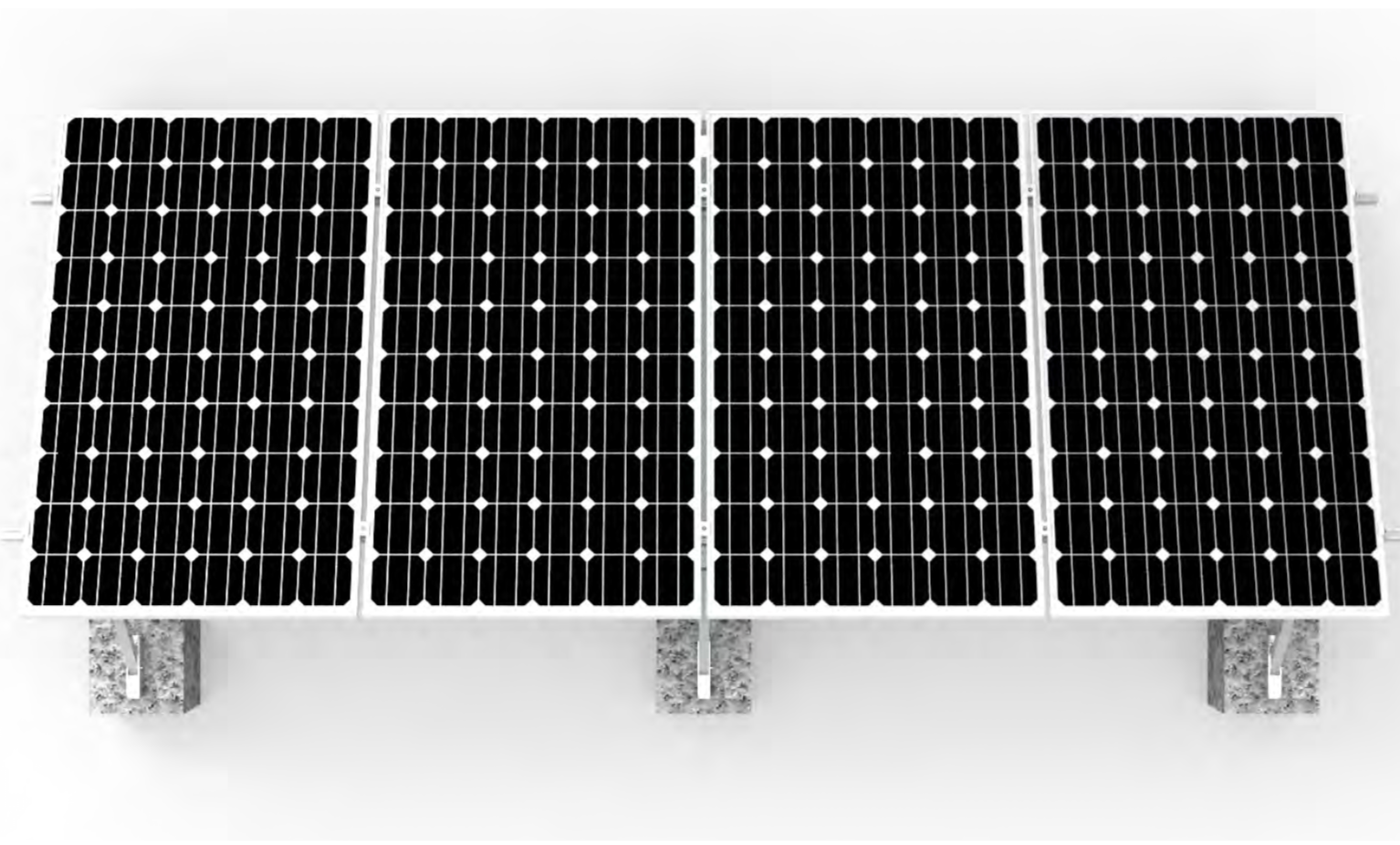

The Fixed 4 solar panel ground mount is perfect solution for a small off-grid solar power system - this is a fixed mount and is non adjustable.

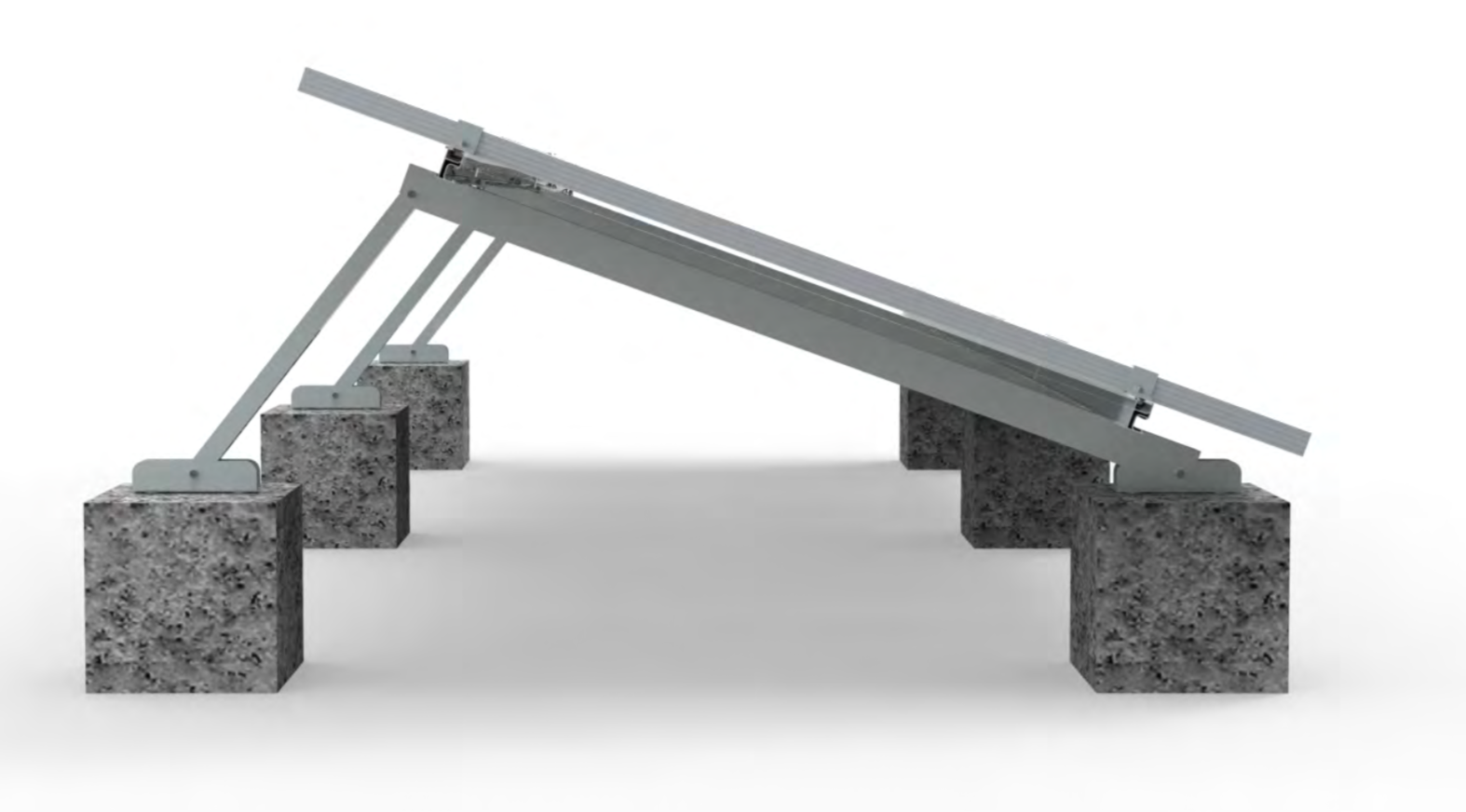

This module has a 15 degree tilt, built using premium aluminium rail, clamps and easy fold out triangle frames which can be pre-assembled to make the installation fast and easy.
Complies with: AS/NZS 1170.0:2002; AS/NZS 1170.2:2011; AS/NZS 4040.3:1992
Standard Rail 7R 2100mm * 4
Solar Standard 7R Rail splice kit* 1
Solar Mid Clamp Kit 40 mm- Mid Clamp, 1 Nut no.7* 6
Solar End Clamp Kit 40mm-4MM* 4
Aluminium triangle support structure 15deg* 3
Grounding Lug, Nut no.7* 2
Solar Aluminium triangle support structure& rail fixed kits* 6
Cable clip, 4pcs/per panel* 16
Solar expand Bolt M8*80mm for support structure* 12
