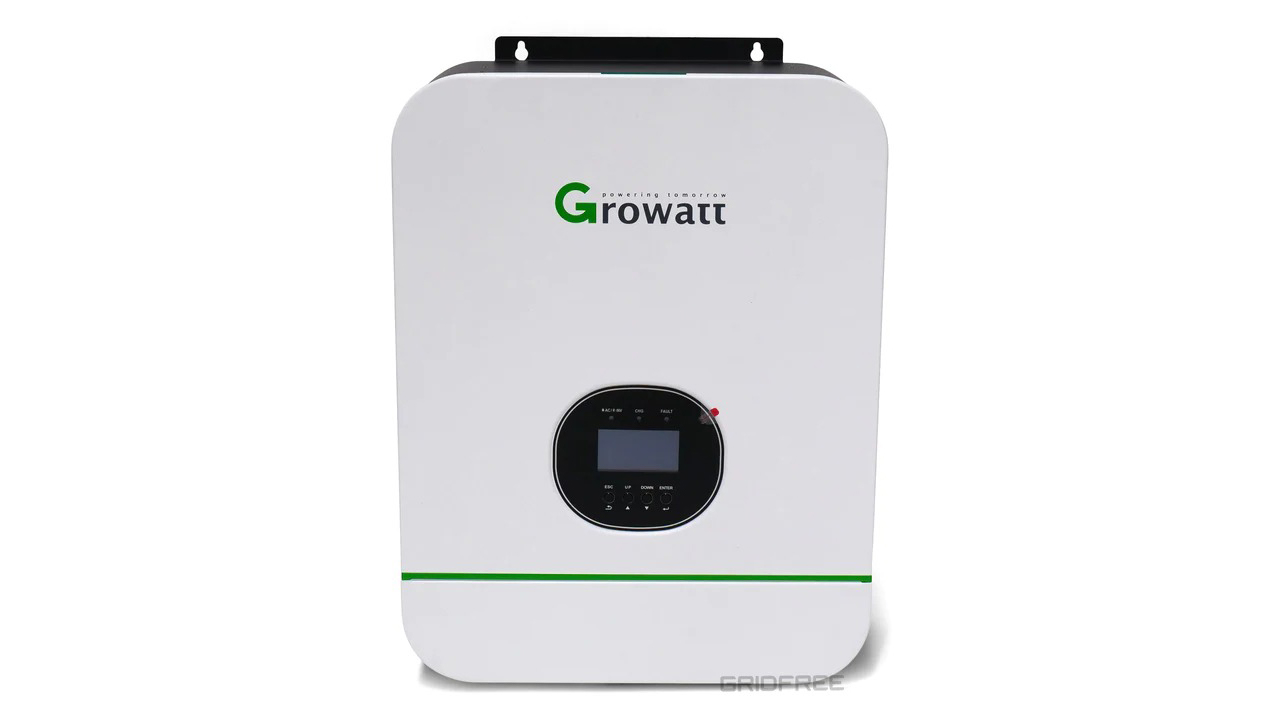

Configuring your Growatt 5kW ES Hybrid Inverter for Generator Input

Configuring your Growatt 5kW ES Hybrid Inverter for Generator Input

How to change Manual and Auto Start Generator settings on your Growatt 5kW ES Hybrid Inverter

Manual Start Generator Parameters

When using these settings, the hybrid inverter will use power supplied by the generator whenever it is available to charge the batteries and supplement power usage.

  1. Hold Enter for 3 seconds.
  2. Use the up and down arrows to navigated to the different setting parameters.
  3. Use the following setting parameters

Setting Number

Setting Description

Recommend Value

1

Power Priority

Utl (Utility)

5

Battery Configuration

USE (User)

21

Low Voltage Disconnect

48V



Auto-Start Generator Parameters

When using these settings, the hybrid inverter will only draw power from the generator when the battery voltage is below the value, specified in setting 12.

When the battery voltage drops below the value specified in setting 12, the dry contact will close, which can be used as a signal to start the generator.
The dry contact will open again when the battery voltage is above the value specified in setting 13, or the batteries reach the float charging stage.

  1. Hold Enter for 3 seconds.
  2. Use the up and down arrows to navigated to the different setting parameters.
  3. Use the following setting parameters

Setting 21 < Setting 12 < Setting 13

Setting Number

Setting Description

Recommended Value

1

Power Priority

Sbu (Solar before Utility)

5

Battery Configuration

USE (User)

12

Generator Start

48.5V

13

Generator Stop

56V

21

Low Voltage Disconnect

47.5V
