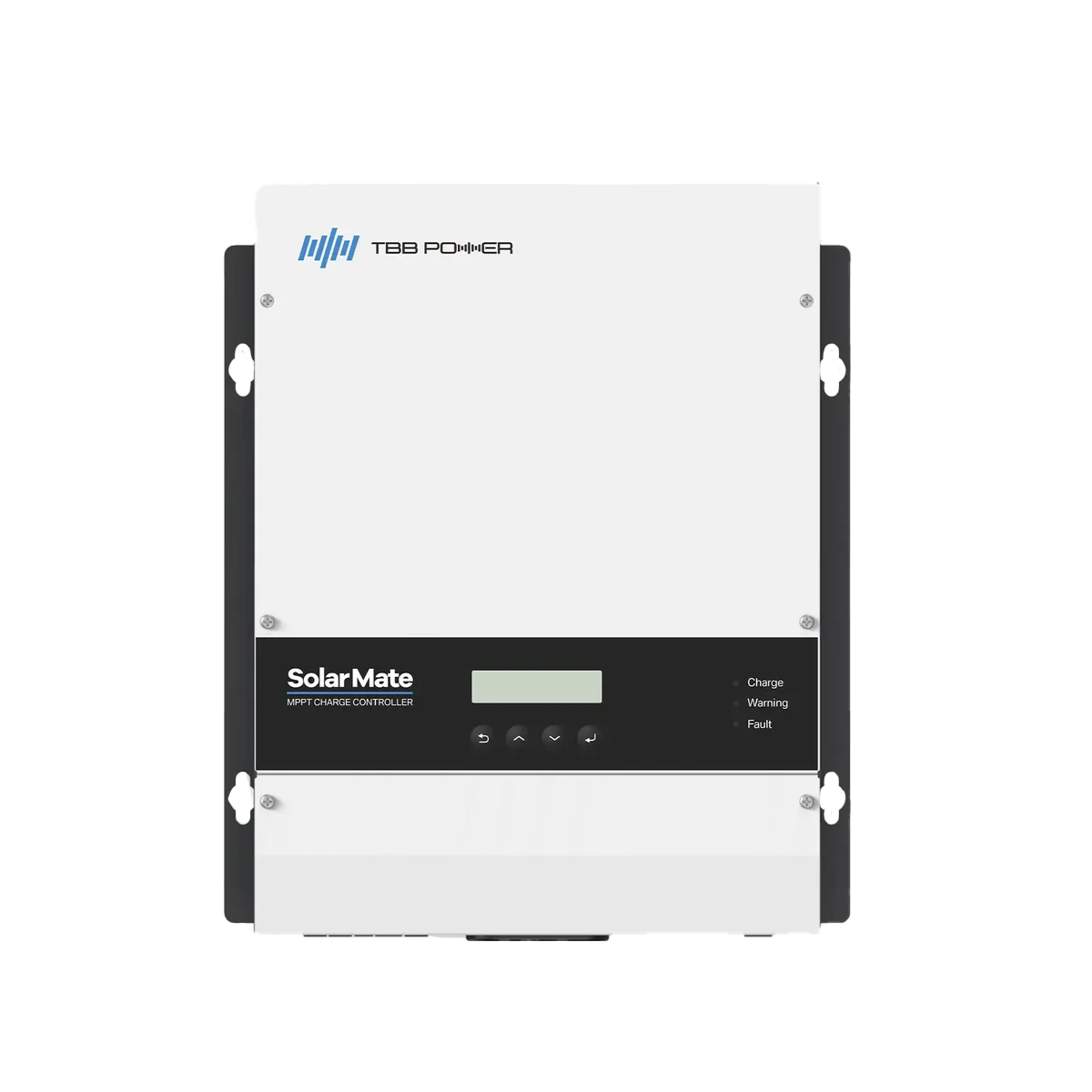

TBB Power SolarMate 250V MPPT Charge Controller

Regular price $1,000 NZD Sale price $1,000 NZD
Tax included.
In stock

Description

TBB Renewable Solar Mate is a solar charge controller with built-in Maximum Power Point Tracking (MPPT) technology, which enables it to increase its PV output by as much as 30% compared with non-MPPT designs. Solar Mate can optimize the PV's output and eliminate the fluctuation due to shading or temperatures variables. It is a multi-voltage MPPT with built-in sophisticated battery charging algorithm for both lead acid battery or lithium-ion battery, suitable for various system designs. Meantime, it supports data management of 365-day history records, which can tell users the system’s actual performance.

SP250-70A:

Battery voltage: 24/48V

Charging Current: 70A

Charging power (48V): 4116W

PV input power (48V): 5400W

Max Voc: 250V

MPPT range: 65 - 245V

Short Circuit Current: 80A

IP rating: IP21

Weight: 7.0 kg

Dimensions: 325.1*293*116.2

SP250-100A:

Battery voltage: 48V

Charging Current: 100A

Charging power (48V): 5880W

PV input power (48V): 750W

Max Voc: 250V

MPPT range: 65 - 245V

Short Circuit Current: 80A

IP rating: IP21

Weight: 7.8 kg

Dimensions: 352.1*293*116.2
