SRNE 6000W Inverter Charger

$2,850.00 NZD $2,850.00 NZD
Tax included.
In stock

Description

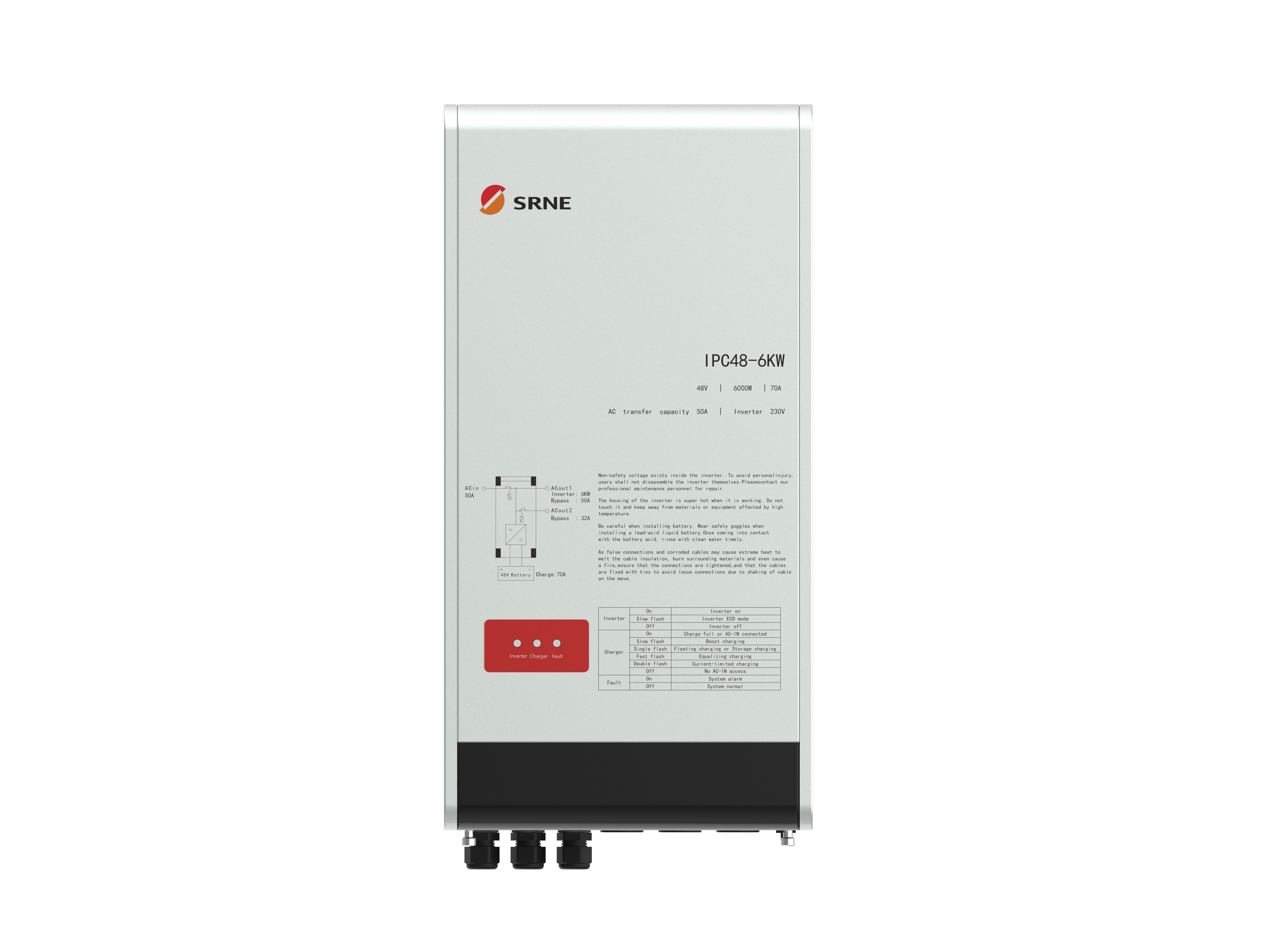

The SRNE IPC48-6KW is a single-phase off-grid inverter charger. Compatible with 48V storage batteries. Multiple charging and on-load modes available to maximise energy use.

Fully Compatible with SRNE range of Lithium batteries

GridFree Qcard Kits Need finance?

Battery Voltage: 48VDC

Battery Type: Lithium/Lead-Acid

INVERTER OUTPUT

Rated Power: 6000W

AC Voltage Regulation: 230VAC + 5% @ 50/60Hz

Parallel Capability: NO

Surge Power: 12000VA

Efficiency (Peak): 95%

Waveform: Pure Sine Wave

Transfer Time: 10ms typical, 20ms Max

AC Input Voltage: 230VAC

Selectable Voltage Range: 180 - 265VAC (For Home Appliances)

Frequency Range: 45~65Hz (Auto Sensing)

Physical

Protection Degree: IP20

Dimension (W/H/D): 551/280/157mm

Net Weight: 30.5kg

Operating Environment

Low humidity areas: <95% (Non-Condensing)

Altitude: <2000m

Operating Temperature: 0°C - 55°C

Storage Temperature: -15°C - 60°C

Warranty

2 Years
