Solar Mini Grid Solutions

Solar Mini Grid Solutions

$220,000.00
Sold out

Maintaining traditional grid infrastructure in remote areas can be extremely expensive and logistically challenging. Power lines, transformers, and other critical infrastructure in isolated regions are often exposed to harsh environmental conditions, leading to frequent repairs and costly upkeep. Moreover, extending or upgrading grid infrastructure to these areas often outweighs the economic return from the limited number of customers it serves.

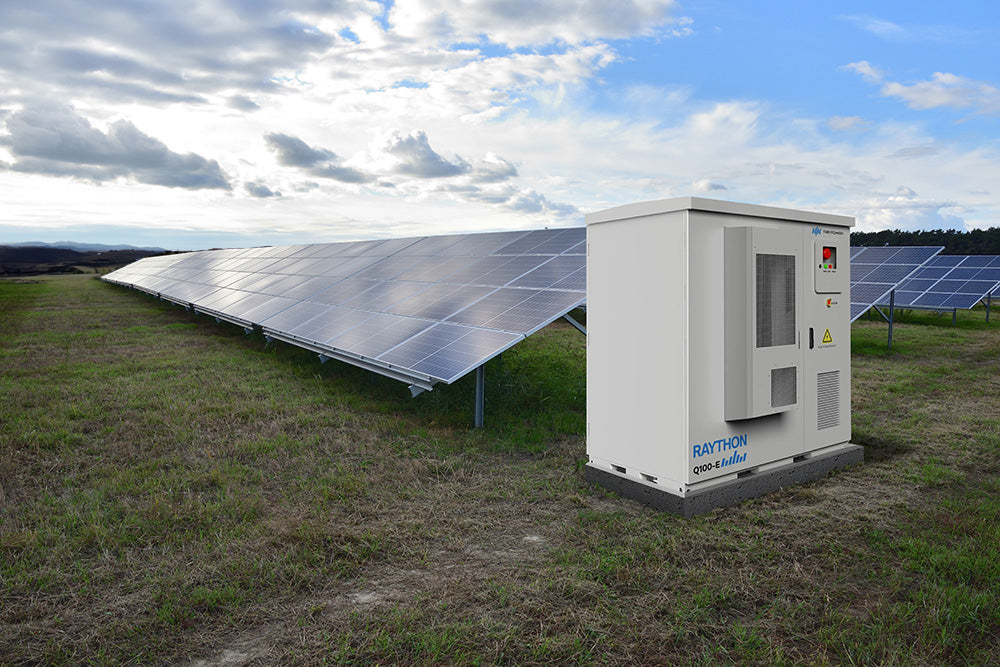

Our mini grid solutions are decentralized, off-grid energy solutions that eliminate the need for costly and complex grid infrastructure in remote areas. These systems are designed to generate, store, and manage renewable energy locally, making them an ideal replacement for traditional grid connections in rural or isolated regions.

View Features/Specs/Downloads

<ul>
<li>Self contained All-In-One cabinet IP55 rated, with active cooling and fire suppression</li>
<li>100kW inverter:</li>
<ul>
<li>Nominal Output Power: 100kW</li>
<li>Max. AC Current: 185A</li>
<li>Nominal AC Voltage / AC Voltage Range: 400/230V (-20% ~ 15%)</li>
<li>Nominal Grid Frequency / Frequency Range: 50Hz / 47Hz ~ 52Hz, 60Hz / 57Hz ~ 62Hz</li>
<li>AC Current THD: &lt;3% (Resistive load)</li>
<li>Adjustable Reactive Power</li>
</ul>
<li>950V 180A 120kW MPPT Solar Controller: </li>
<ul>
<li>PV Open Circuit Voltage / MPPT Voltage Range: 250~950V / 200~850V</li>
<li>PV Short Circuit Current (A) / Maximum PV Power (W): 60+60+60+60A / 30+30+30+30kW</li>
</ul>
<li>12 x 17.92kWh batteries (215kWh total)</li>
<li>200 x 440W Panels (88 kW total array size)</li>
<li>Cables and panel mounting system provided with package</li>
</ul>
