MC10 Solar Connector (Pair)
MC10 Solar Connector (Pair)

MC10 Solar Connector (Pair)

$10.00

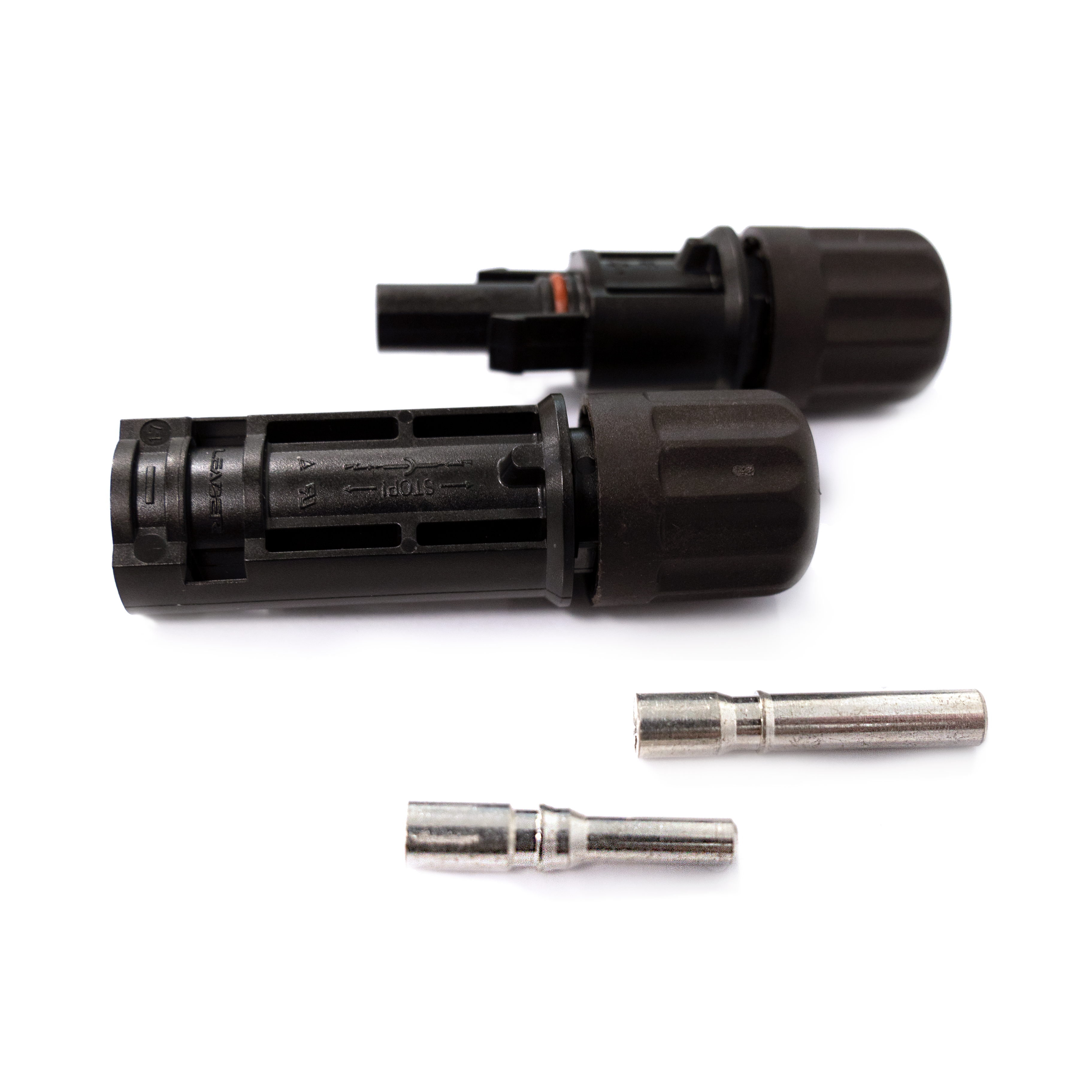

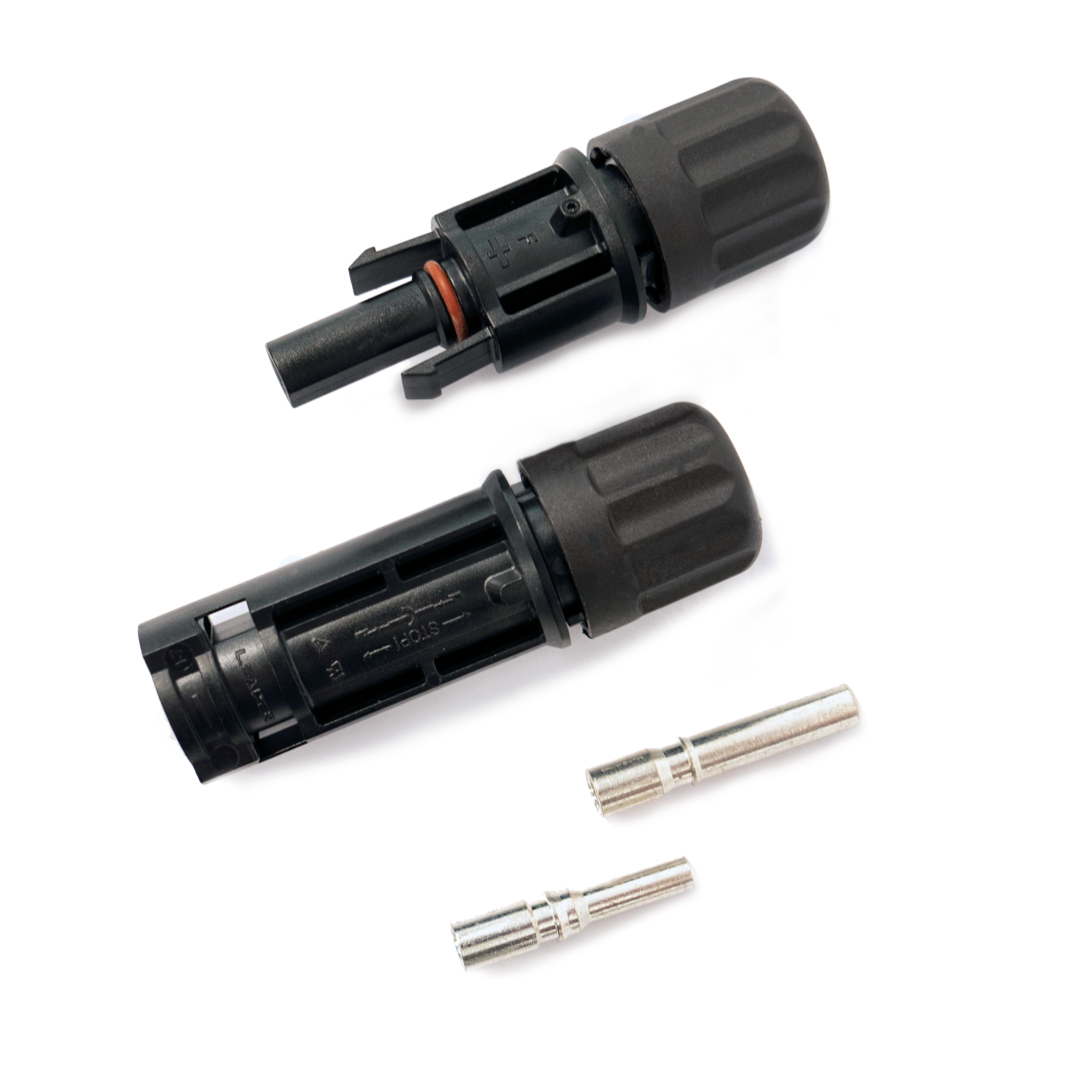

The MC10 Solar Connector is a high quality MC10 plug and socket pair used to connect to PV panels. Simple to both set up and remove thanks to the quick snap-in locking mechanism and safety lug release.

Includes pins with crimpable ends for attaching to cables.

TÜV certified, IP65 rated and NEC 2011 compliant.

View Features/Specs/Downloads
Quantity:
This product is on pre-order

<p><span style="color:rgb(33,43,54);">Insertion Force: &lt; 60N&nbsp;</span><br><span style="color:rgb(33,43,54);">Withdrawal Force: &gt; 60N&nbsp;</span><br><span style="color:rgb(33,43,54);">Rated Voltage: 1000V DC&nbsp;</span><br><span style="color:rgb(33,43,54);">Rated Current: 30A&nbsp;</span><br><span style="color:rgb(33,43,54);">Degree of Protection: IP65&nbsp;</span><br><span style="color:rgb(33,43,54);">Contact Resistance: &lt;0.5mO&nbsp;</span><br><span style="color:rgb(33,43,54);">Compatible with Cable types: 4mm^2 &amp; 6mm^2&nbsp;</span><br><span style="color:rgb(33,43,54);">Temperature Range: -40C ~ 85C&nbsp;</span><br><span style="color:rgb(33,43,54);">Flame Class: L94-VO&nbsp;</span><br><span style="color:rgb(33,43,54);">Dimensions (each plug): ~60mm x 16mm diameter&nbsp;</span></p>
