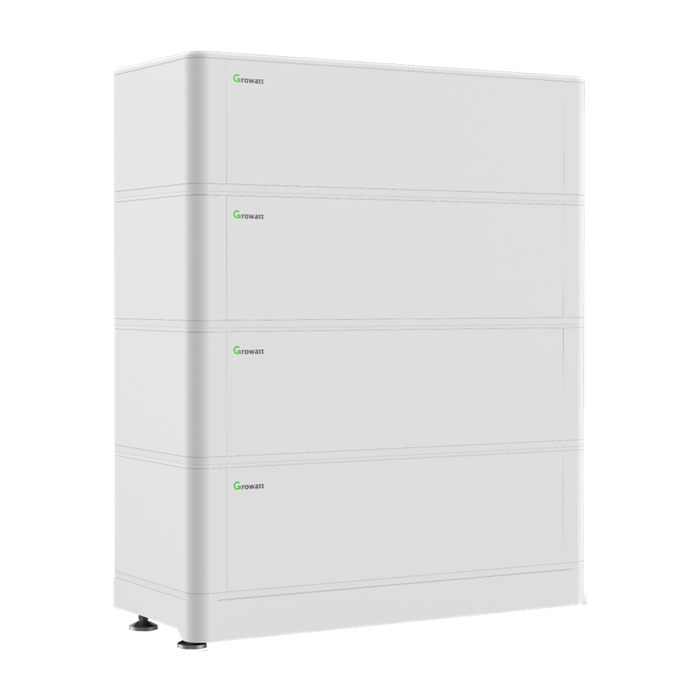

The Growatt ARK LIFEPO4 battery system comes with a modular design, extra batteries can be stacked to expand your battery bank.
Each Growatt ARK battery has a capacity of 2.56kWh and a maximum charge current of 25A. Operating voltage is between 47.2V - 56.8V, Nominal Voltage is 51.2V.
The LiFePO4 (Lithium Iron Phosphate) battery is free of cobalt and has a cycle life of over 6000. This battery is IP65 rated and can be mounted to a wall or the floor.
Battery type: Cobalt Free Lithium Iron Phosphate
Nominal Voltage: 51.2V
Operating Voltage Range: 47.2 - 56.8V
Installation: Wall-mounted or Floor Installation
Operation Temperature: -10 ~ 45 C
Weight (Kg): 30Kg
Size: 650 x 260 x 170mm

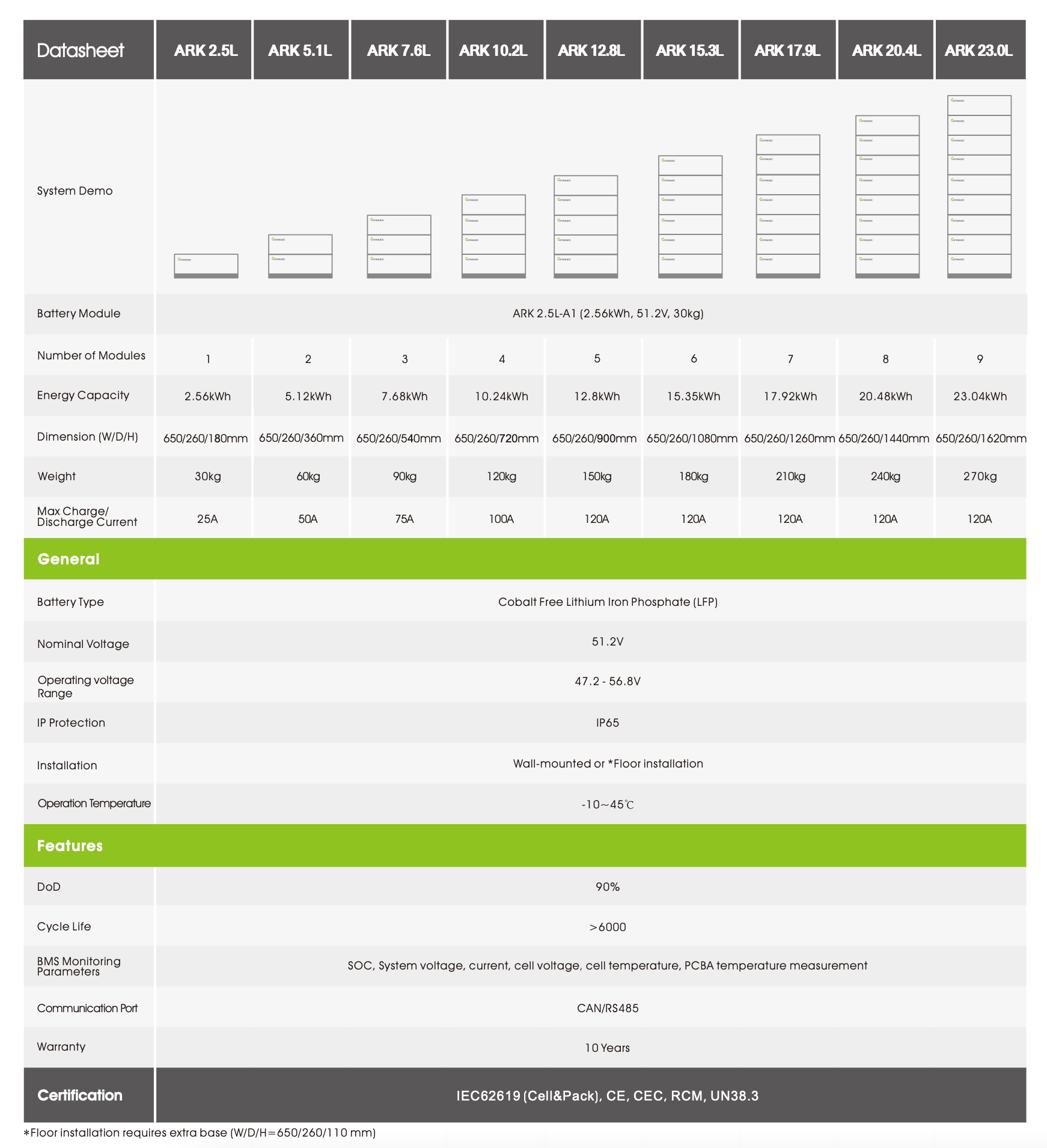

Flexible Capacity options: 2.56kWh to 23.04 kWh (Increments of 2.56kWh) 9 Units MAX
BMS Monitoring parameters: SOC, System voltage, Current, cell voltage, cell temperature, PCBA temperature measurement
Download User Manual
