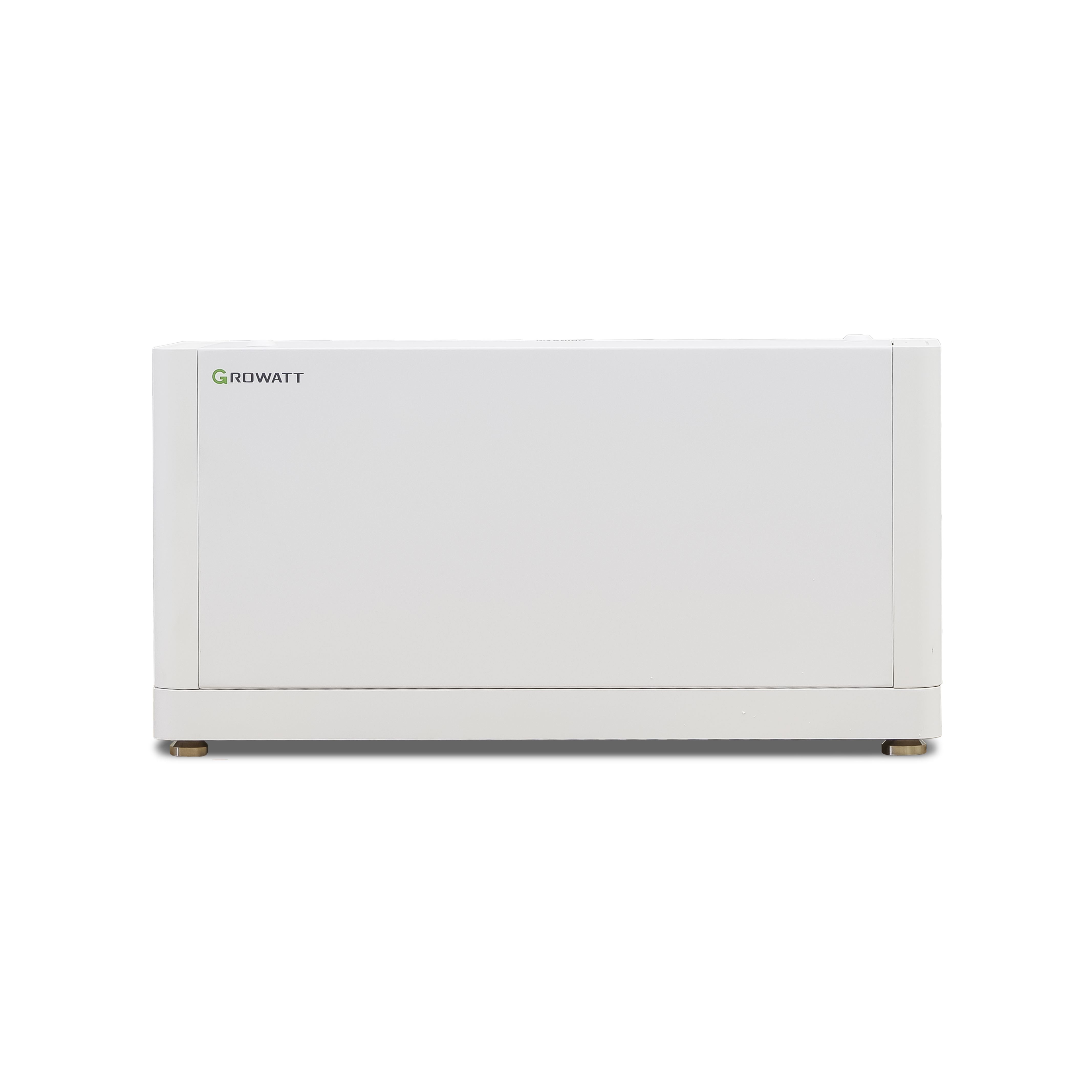

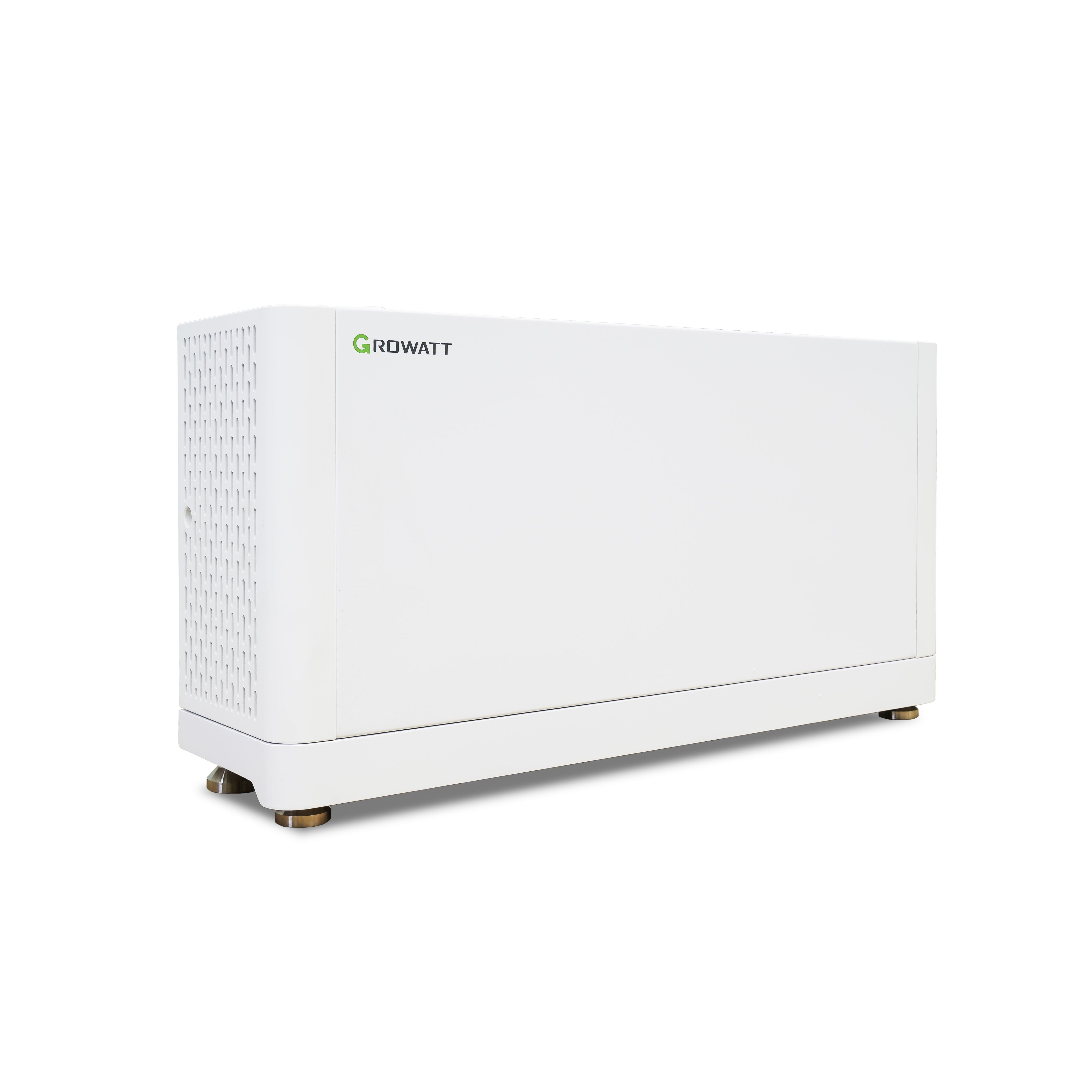

Growatt ALP LV LiFePO4 Battery 5kWh

Growatt ALP LV LiFePO4 Battery 5kWh


Launching in 2024

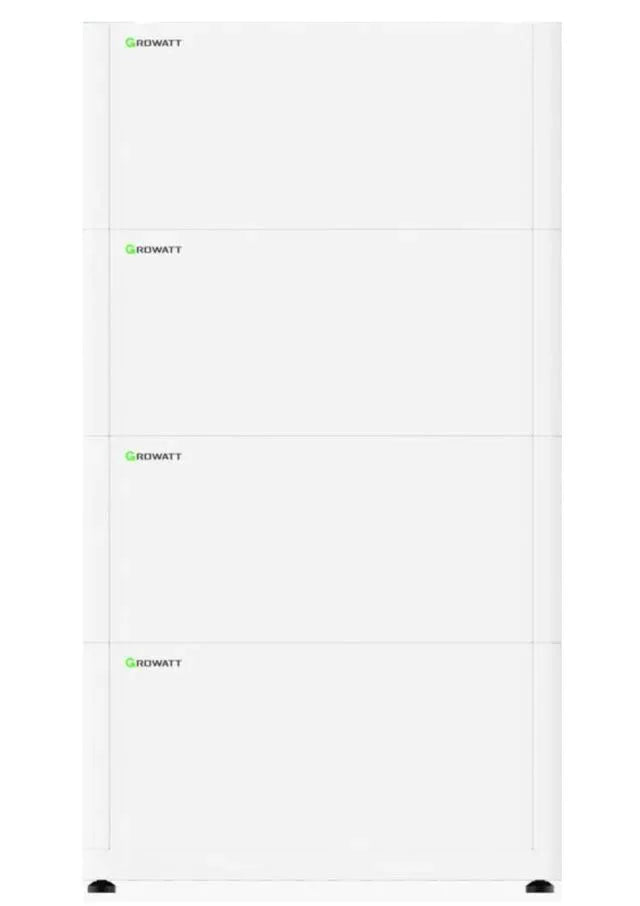

The Growatt ALP LV LIFEPO4 battery system comes with a modular design, extra batteries can be stacked to expand your battery bank. Learn about Gel vs Lithium Batteries.

Each Growatt ALP LV battery has a capacity of 5kWh and a maximum charge current of 125A. Operating voltage is between 46.4V - 57.6V, Nominal Voltage is 51.2V.

The LiFePO4 (Lithium Iron Phosphate) battery is free of cobalt and has a cycle life of over 6000. This battery is IP66 rated and can be mounted to a wall or the floor.

This product is on pre-order

<ul><li style="margin-left:0px;">Battery type: Cobalt Free Lithium Iron Phosphate</li><li style="margin-left:0px;">Nominal Voltage: 51.2V</li><li style="margin-left:0px;">Operating Voltage Range: 46.4 - 57.6V</li><li style="margin-left:0px;">Installation: Wall-mounted or Floor Installation</li><li style="margin-left:0px;">Operation Temperature: 0 ~ 50 C</li><li style="margin-left:0px;">Weight (Kg): 44Kg</li><li style="margin-left:0px;">Size: 690 x 185 x 590mm</li><li style="margin-left:0px;">Flexible Capacity options: 5kWh to 40 kWh (Increments of 5kWh) 8 Units MAX</li><li style="margin-left:0px;">BMS Monitoring parameters: SOC, System voltage, Current, cell voltage, cell temperature, PCBA temperature measurement&nbsp;</li></ul>
