ZJBeny DC Isolation Switch

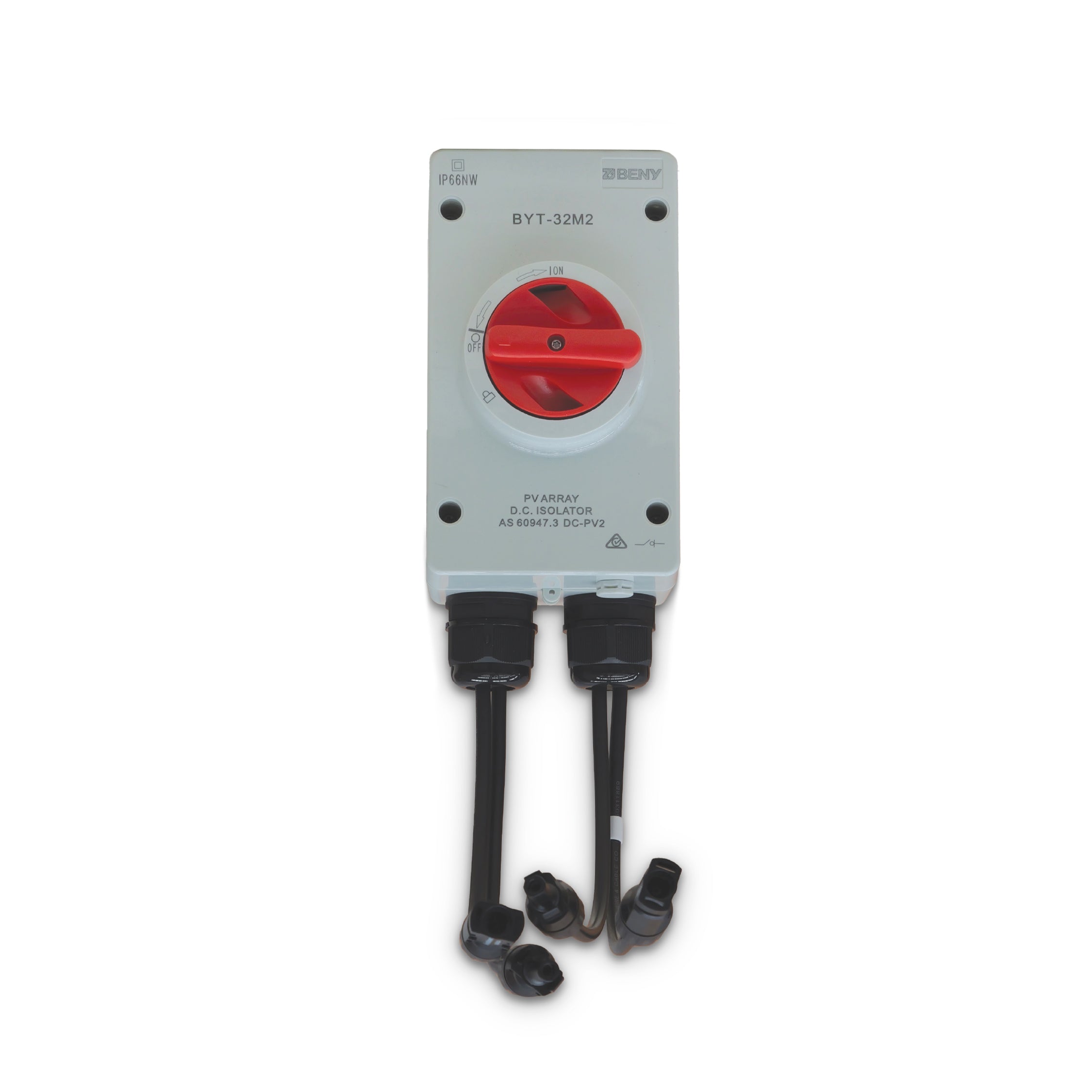

BYT‑32M1 Solar DC Isolator Switch – Fully AS 60947.3:2018 DC‑PV2 Compliant (Pre‑Wired with MC4)

Upgrade your solar installation with the BYT‑32M2 DC isolator — the first fully compliant isolating switch certified to AS 60947.3:2018 DC‑PV2 standards for use in Australia & New Zealand. Designed for safety, durability, and easy installation, this isolator is pre‑wired with MC4 connectors for a secure, hassle‑free setup.

Key Features

• Fully compliant with AS 60947.3:2018 DC‑PV2 & IEC 60947‑3 standards

• Pre‑wired MC4 connectors – faster, safer installation & factory‑sealed reliability

• 1200V DC, 32A rated – built for modern high‑voltage solar systems

• IP66 enclosure – weatherproof for any mounting position

• UV‑resistant & flame‑retardant materials – built to withstand harsh environments

• Breather valve – prevents condensation inside the enclosure

• 3ms arc suppression – added safety in operation

• Lockable in OFF position for extra security

Why Choose the BYT‑32M2?

• The first DC isolator fully certified to meet AS 60947.3:2018 DC‑PV2 requirements in AU & NZ

• Pre‑wired at the factory – reduces installation errors and speeds up the process

• Designed for global solar DC systems with no‑polarity switching

Specifications

• Model: BYT‑32M2

• Poles: 2P

• Rated Voltage (Ue): 1200V

• Rated Current: 32A

• Protection: IP66 enclosure / IP20 switch body

• Certifications: SAA, TUV, CB

• Dimension: 100 x 170 x 120mm (W * H * D)
• Cable Length with MC4: 290mm
